| Prod Model: |
A3 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Loading Capacity: |
800kg |
| Product Name: |
Network Cabinet |
| Installation Type: |
Vertical |
| Capacity: |
18u-47u |
| Optional Color: |
Black,Gray,White |
| Feature: |
Floor Standing Cabinet |
| Width: |
600,800mm |
| Depth: |
600,800,1000mm |
| Surface Finish: |
Powder Coating |
| Material: |
SPCC Cold Rolled Steel |
| Type: |
Network Cabinet |
| Usage: |
Network Integration System |
| Certification: |
RoHS |
| Installation: |
Vertical |
| Condition: |
New |
| Fan Number: |
Optional |

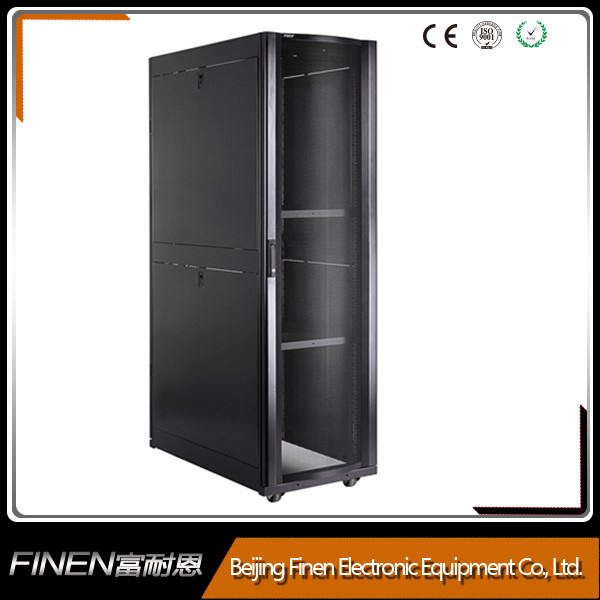

Product Description
Product Information
1. Standard:
Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART, GB/T3047.2-92,; ETSI Standard
2. Feature:
-High-Density square holes Front Door With Over 180 Turing Degree-Vented rear door with round lock
-High-Density square holes Rear Door (Ventilation Rate Above 75%)
-Side Panel: Removable Side Panel, easy To Install And Miantain (Lock Optional)
-Zinc Plated mounting profile
-Adjustable feet and heavy duty castors are supplied
-Cable entry on the top cover and base plate with adjustable sizes
-Optional installation of plinth for extra ventilation and ease of cabling
-Efficient and reliable cabinet connection with use of baying kit
-Removable side panels, easy to install and remove, key locks available are accessory.
3. Main Material:
SPCC Cold rolled steel
4. Surface Finish:
Degreasing, Pickling, Phosphating, Powder coating.
5. Degree of Protection: IP20
6. Loading Capacity: 800kg
Nework Cabinet Applications:
Rack cabinets for Information Technology and telecommunication appliances use:
-Small, Medium and Large Servers
-DVR, Security Equipment and Routers
-Patch Panels and Switches
-Telephone Systems and PABX
-Network and Communications Equipment
-UPS Equipment
-Other Rack Mount Equipment
Network server cabinet Package Contents:
1) 2 x Cabinet frames
2) 2 x Side Panels
3) 1 x rear Door (Mesh door or Solid)
4) 1 x Front Door -square holes Mesh door
5) 2 x Adjustable shelves
6) 1 x bottom pannels
7) 1 x Power Distribution Unit (8 Outlets)
8) 1 x Bag of Nuts and Bolts
9) 1 x Fan Tray with 2 fans
10) 1 x Set of Castors
11) 1 x Set of Levelling Feet
12) 1 x Set of Keys for all doors
| Cabinet Package Contents | | No. | Component name | Quantity | Unit | Material | Remark | | 1 | Top Cover | 1 | pc | SPCC cold rolled steel T1.0 |
| | 2 | Fan Unit | 1 | pc | --- | With 2/4 fans | | 3 | Mounting Profile | 4 | pc | Zinc plated T2.0 |
| | 4 | Mounting angle | 6 | pc | SPCC T1.2 | 4pcs for lower 30U | | 5 | Frame | 2 | pc | SPCC T1.2 |
| | 6 | Lock | 2 | pcs | --- | Handle lock | | 7 | Front Door | 1 | pc | SPCC T1.2 | Mesh door | | 8 | Rear Door | 1 | pc | SPCC T1.0 | Mesh door | | 9 | Side Panel | 2 | pcs | SPCC T1.0 | Removable | | 10 | Bottom Panel | 1 | pc | SPCC T1.0 |
| | 11 | Screw | 20 | pcs | --- | 80pcs | | 12 | Square Nut | 20 | pcs | SPCC T1.0 | 80pcs | | 13 | Castor | 4 | pcs | Steel |
| | 14 | Adjustable leveling feet | 4 | pcs | Steel |
| | 15 | Other components are available according to request | | Specification | | Model No. | Capacity(U) | Width(mm) | Depth(mm) | Height(mm) | Cubic(CBM) | | A3-6618 | 18 | 600 | 600 | 988 | 0.17 | | A3-6818 | 600 | 800 | 988 | 0.20 | | A3-6018 | 600 | 1000 | 988 | 0.23 | | A3-6622 | 22 | 600 | 600 | 1166 | 0.192 | | A3-6822 | 600 | 800 | 1166 | 0.243 | | A3-6022 | 600 | 1000 | 1166 | 0.30 | | A3-6632 | 32 | 600 | 600 | 1610 | 0.28 | | A3-6832 | 600 | 800 | 1610 | 0.33 | | A3-6032 | 600 | 1000 | 1610 | 0.38 | | A3-6637 | 37 | 600 | 600 | 1833 | 0.30 | | A3-6837 | 600 | 800 | 1833 | 0.35 | | A3-6037 | 600 | 1000 | 1833 | 0.42 | | A3-6642 | 42 | 600 | 600 | 2055 | 0.32 | | A3-6842 | 600 | 800 | 2055 | 0.38 | | A3-6042 | 600 | 1000 | 2055 | 0.46 |
|
|
|
Beijing Finen Electronic Equipment Co., Ltd. Is located in industrial park of Pinggu district, Beijing. We are superior in geographic location and convenient transportation. Finen is a company with the whole line of designing, producing, selling and trading a standard series of products while continually making strides in new product development. Our tenet is "quality first, credit standing paramountcy". Welcome the clients at home and abroad to negotiate and cooperate with us.
We have excellent environment, about more than 3, 000 square meter standard production workshops and about 400 employees. Senior technical staff members are over 65 percent. The laser cutter is imported From German TRUMPF Company, AMADA CNC Press Brake, CNC punching machine and so on. We have automatic powder spraying equipment. All of processes are automation finished in airtight spray powder line.
Our product are widely adopted to the database of computer net, communication net, spaceflight and aviation, computer field, colligate thread and output electric of equipment, broadcast and TV, received series, automatism control, manpower control, monitor series, etc. Finen establishes a home & overseas sales system and earns prestige from consumers.
Our product: Network cabinet, sever rack, control console, TV screen wall, APC (structure) cabinet, (structure) cabinet, (structure) cabinet, distribution box, security equipment and so on.
