9u 600X600 Single Section Wall Mount Cabinet with Fan and Shelf

Prod Model:	TN-007
Color:	Ral7035, Ral9004, etc
Logo:	Silk Print, Aluminum Sticker, Rubber Sticker
Packing Style:	Assembled or Dis-Assembled
Shipping:	Sea, Air, Train, Truck
Material:	SPCC Cold Rolled Steel
Certificate:	Ce. RoHS. SGS
Type:	Network Cabinet
Usage:	Network Integration System
Installation:	Wall-Mounted Cabinet
Certification:	RoHS
Condition:	Used
Fan Number:	1 or 2
Capacity:	From 4u to 22u

Product Description

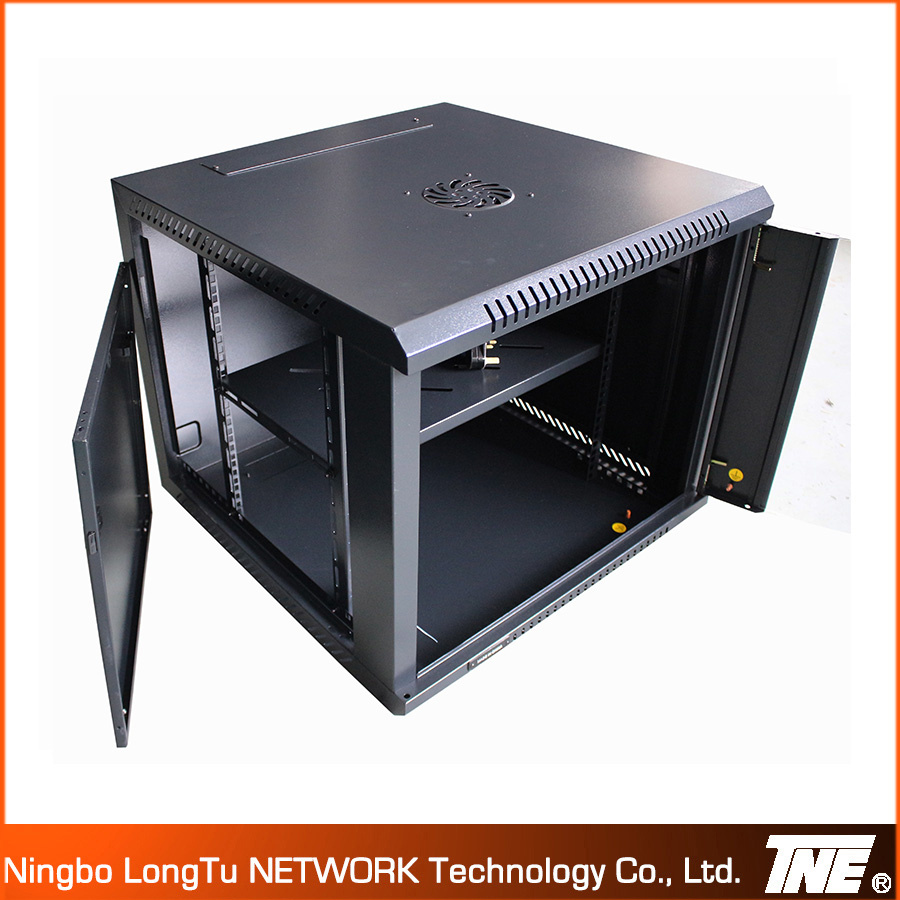

9U 600x600 Single Section Wall Mount Cabinet with Fan and Shelf


===========Description===================

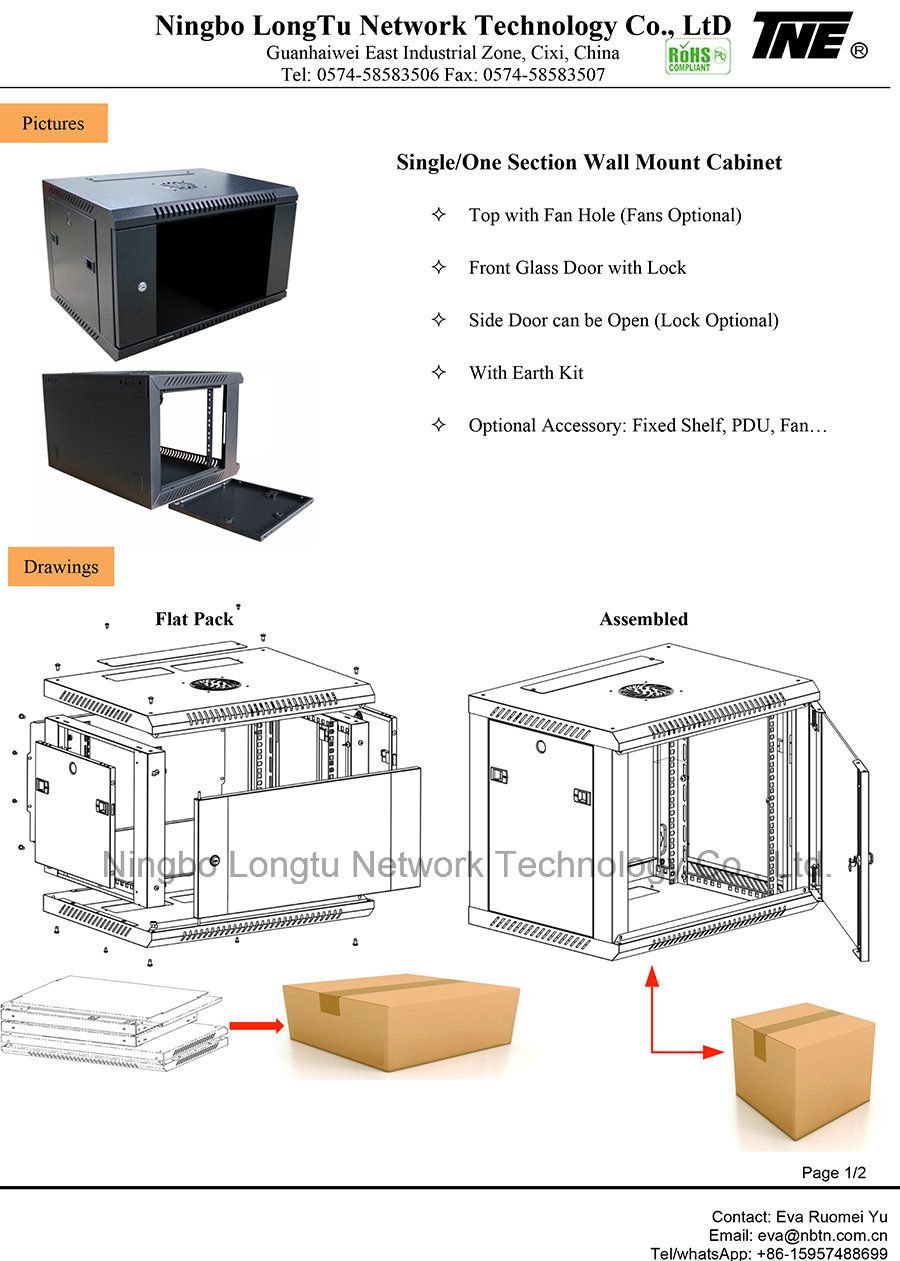

> One / Single Section Wall Mount Cabinet

> Can be Disassembled, Flat Packing, Save the Shipping Cost.

> Standing or wall mounting installation

> Adjustable feet and heavy duty castors are optional
Features

> Easy mounting installation

> Removable side panels, side locks optional

> Cable entry on both of top cover and bottom panel

> 120mm fan available (220V or 110V)

> Turning angle of front door is over 180 degrees.


==============Standard==============

Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard

Material:
High grade cold rolled steel.

Thickness:
Mounting profile: 1.50mm others: 1.2mm

Loading Capacity:
Static Loading: 60kgs

Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.

Degree of Protection:
IP20

Body Color:
RAL7035, RAL9004 etc.

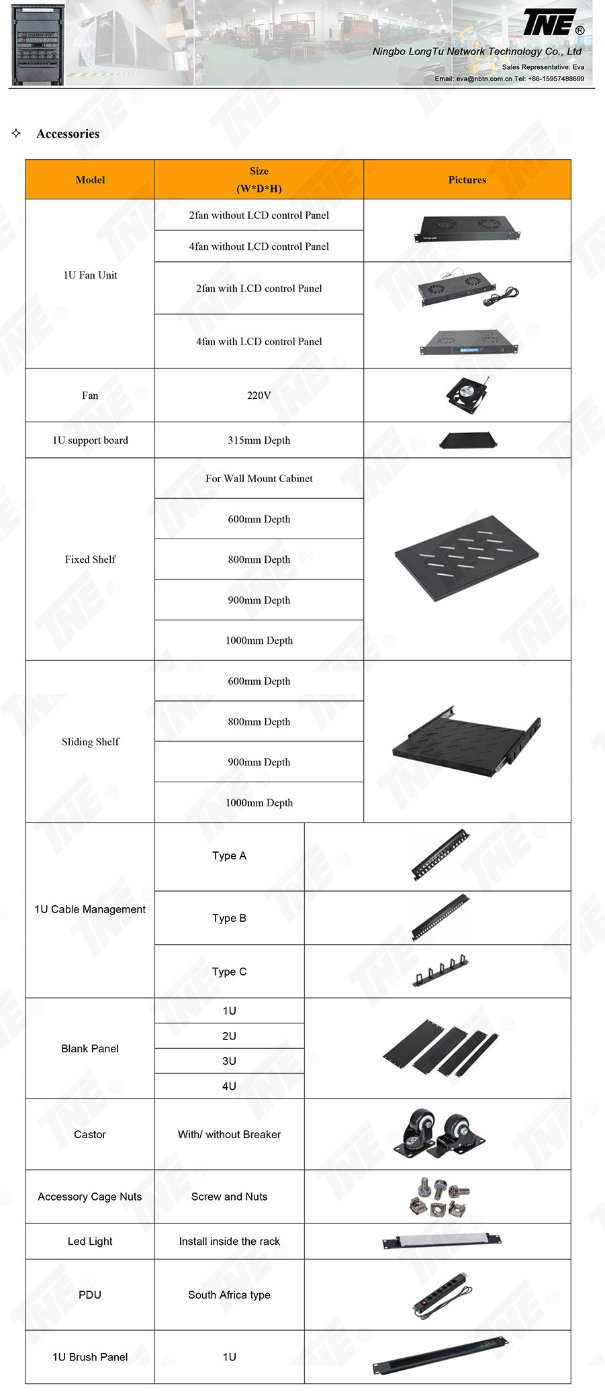

=================Optional Accessory ===================

1, Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet

2, 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)

3, 1U, 2U support board

4, Vertical Cable manager ( for 800mm Width Cabinet)

5, 19'' Power distribution unit(PDU)

6, 19'' Blanking plate 1U, 2U, 4U

7, Heavy duty castor, Heavy duty castor with braker

8, Optional lock for side panels

9, Earth Cable

And so on...

Model No	Size
Single Section Wall Mount Cabinet	W	D	H
TN-007-6404 TN-007-6604	600	450 600	4U
TN-007-6406 TN-007-6606	600	450 600	6U
TN-007-6409 TN-007-6609	600	450 600	9U
TN-007-6412 TN-007-6612	600	450 600	12U
TN-007-6415 TN-007-6615	600	450 600	15U
TN-007-6418 TN-007-6618	600	450 600	18U
TN-007-6422 TN-007-6622	600	450 600	22U

========================FAQ============================

1)    What is your Payment term?
---T/T, L/C, Western Union could be accepted.

2)    What is your Trade term?
---EXW, FOB, CNF, CIF is also ok.

3)    What is the Loading Port?
--- Ningbo or Shanghai port.

4)    What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.

5)    What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market,  international safety standard certificate is also be provided.
