90% Above Recovery Ratio Gold Separate Machine Gold Shaker Table

Prod Model:	6s
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Brand Name:	Gelin
Usage:	Mining Concentration
Feeding Size:	0.074-2mm
Feeding Density:	30%~50%
Testing:	Supply
After Service:	Supply
Delivery Date:	2 Days as in Stock Now
Place Of Origin:	China
Voltage:	380V
Certification:	CE
Warranty:	1 Year
Color:	Multi Color
Customized:	Customized
Condition:	New
Material:	Fiberglass
Type:	Mineral Processing & Screening Equipment

Product Description

1). High recovery ratio, 2). Low price, 3). Easy to operate and maintain, 4). High quality with guarantee 12 months, 4). Produced by the biggest gravity mining machine factory in China.

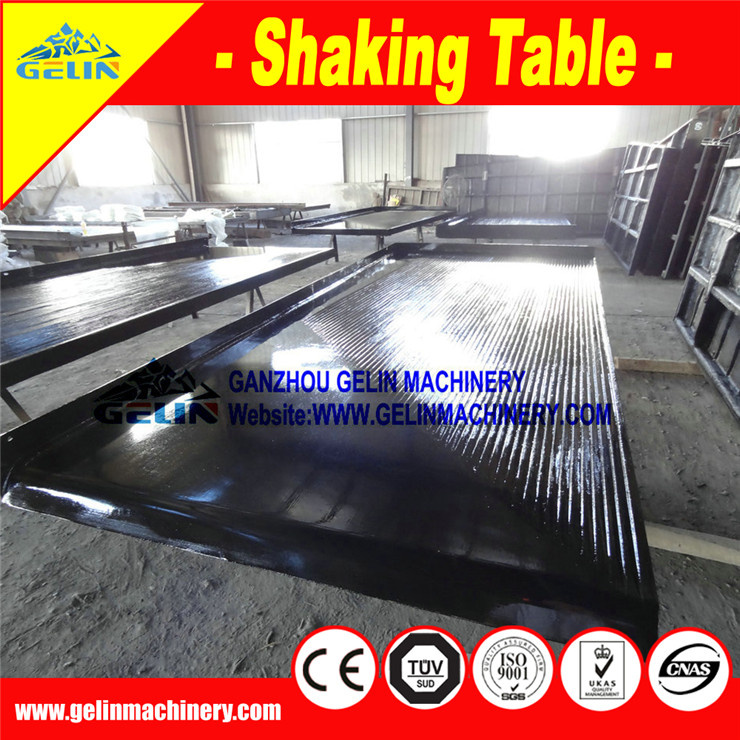

90% above recovery ratio gold separate machine gold shaker table
It is widely use for separating Gold, Manganese, Chrome, Copper, Iron, Titanium, Zircon, Tungsten, Tin, Tantalum, Barium, Lead, Mercury, Aluminum, rare metals and noble metal ore.

It is wet type mine machinery, which working by gravity. Compare with traditional tool, our Gelin brand shaking table have below advantages:

1). Made by 6s firber glass material;
2). Steel structure support, easy to install and move to other place;
3). High recovery ratio, as usual more than 90% recovery ratio.

As per different particle size of raw ore, there are three distinct deck design available. The course ore deck is Designed for recovering particle size from 0.5mm to 2mm; The fine sand deck is designed for recovering fine particle From 0.15mm to 0.5mm; The slime deck is designed for recovering super extremely fine particle in the range of 0.074mm to 0.15mm.
Specification:
Maximum feeding size(mm) 2
Capacity ton/hour 0.5-1
Feeding density(%) 10-30
Stroke(mm) 12-28
Frequency(F) 250-450
Water added 0.2-1 t/h
Transverse slope of deck 0-8°
Material of deck fiberglass
Packed dimension (mm) 3100x1200x800
Packed Weight (kgs) 380
Motor power(kw) 1.1



We are professional mining machine manufactures and exporters in China with over 20 years of experience, located in Jiangxi Province, covering an area of
over 30,000 square meters, having more than 30sets of heavy processing equipment and with an annual output of  more than 2,000 sets of mining machinery.
Our distinctive products include shaking table, Jig, Spiral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator, feeder, classifier,
ore washing machine and lab equipment ect... which are complied with environmental friendly standard, CE/ ISO9001 quality control system.

It is our commitment to satisfy your requirement, please trust  that we will be your reliable business partner for our good reputation, good quality and competitive price!
Welcome to visit our factory in your free time!
For more details, please visit our website. Thank you!


Model		6s-7.6			4.08	1.95		0.5
Deck type		Coarse ore deck	Fine sand deck	Slime deck
Benefication Area(m2)		7.6	7.6	7.6	4.08	1.95		0.5
Deck size	Length(mm)	4450	4450	4450	3000	2100		1100
	Transmission end width (mm)	1855	1855	1855	1320	1050		500
	Concentrate end width (mm)	1546	1546	1546	1100	850		430
Maximum feeding size(mm)		2	0.5	0.15	Sand -2 Slime-0.1	Sand -2 Slime-0.074		Sand -2 Slime-0.074
Feeding amount		0.8-1.5ton/h	0.8-1.5ton/h	0.8-1.5ton/h	0.4-1.5t/h	0.3-0.8t/h		0.05-0.2t/h
Feeding density(%)		25-30	20-25	15-25	10-30
Stroke(mm)		16-22	11-16	8-16	6-30		12-28	9-17
Frequency(F)		45-220	53-250	60-280	210-320		250-450	280-460
Water added		1-3t/h	1-3t/h	1-3t/h	0.4-2t/h		0.2-1t/h	0.1-0.5t/h
Transverse slope of deck		2°30-4°30	1°30-3°30	1°-2°	0-10°		0-8°	0-10°
Longitudinal slope of deck		1.4	0.92	---	---		---	---
Cross-section shape of deck		rectangular	saw-tooth	triangle	---		---	---
Motor power(kw)		1.1						0.55
Transmission mechanism		Eccentric linkage
