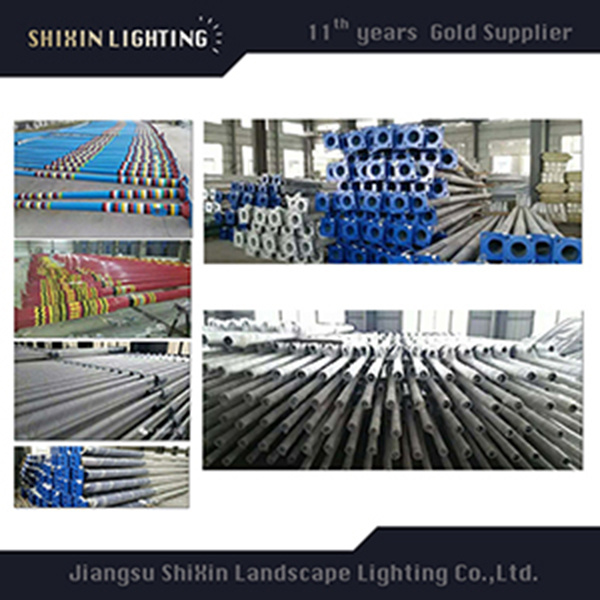

8m Road Lighting Galvanized Steel Column
| Price: |
US $ 50-100/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
SX-DG |
| Height: |
5-15m |
| Flange: |
400*400 |
| Tc: |
3500-6000k |
| Material: |
Aluminum Stainless Steel |
| Guarantee: |
3-5years |
| Apply: |
Street, Road |
| Thickness: |
3-5mm |
| Color: |
Customer's Request |
| Diameter: |
65-200 |
| Light Source: |
LED Light |
| Color Temperature(',CCT): |
Warm White |
| Lamp Body Material: |
Aluminum Alloy |
| Lamp Power: |
30W |
| Power Supply: |
AC |
| Average Life: |
5500h |
| Application: |
Garden |
| IP Rating: |
IP65 |
| Certification: |
RoHS |
| Voltage: |
220V |
Product Description
Specification introduction
| Height | 6m to 30m or other height customer requirement |
| Suit for | Electric Power Distribution Transmission Steel Tower |
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
| Material | Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,
to ST52 |
| Strength | 2.5KN,5KN,8KN,10KN,12KN |
| Torlance of the dimenstion | +- 2% |
| Optical assembly of lighting fixture | IP 65 |
| Electroshock resistant protective grade | Grde I |
| The casing anti-corrosion performance | Class II |
| Working atmosphere of lighting fixture | -35 ºC~+45 ºC |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required |
| Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160km/hour |
| Minimum yield strength | 335mpa |
| Minimum ultimate tensile strength | 400mpa |
| Max ultimate tensile strength | 620mpa |
| Standard | ISO9001 |
| Length of per section | Within 14m once forming without slip joint |
| Welding | We has past flaw testing.Internal and external double welding makes the
welding beautiful in shape.
Welding Standard :AWS ( American Welding Society ) D 1.1 |
| Thickness | 1mm to 30mm |
| Packages | Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
| Style | Size and styles are veriable as per customer request |
Production Process
Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify
→Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Yangzhou Shixin Landscape Lighting company is located in Tianshan Industrial Park of Yangzhou, which is the largest and best street light manufacture in China. The company is specialized in production of street light, LED street light, solar street light, pole, high mast, garden light, lawn light and so on. We have 189 workers, 20 technicists, and 25 serve clerks. We have been working in this line from 2004.And we have done many big projects abroad and won good reputation from our customers.
FAQ
1:How many cycles full charge&discharge about your battery?
In 50% discharging deepness, it can be cycled for 1,200 times; in floating charging and discharging status, it can be cycled for 5000~6000 times.
2.How to Choose the System Voltage 12V or 24V or for normal street Light ?
We can design the System for 12v or 24v for solar street Light or 220-380V for normal street light .
3.What's the main difference between mono and polycrystalline solar panel?
production process and cost. Polysilicon technology is more mature since it is an early technology compared with Monosilicon.
4.The controller of your solar street light has dual time control function?
our solar charge controller is designed with dual time control function, you can set up the lighting time and divide it into two parts, like 12 hours (6 hours full power lighting + 6 hours half power lighting)
