| Prod Model: |
LT080 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max.Lift Height: |
1850mm / Scissor Lift Table |
| Min.Lift Height: |
460mm / Scissor Lift |
| Table Size: |
1020X610mm / Lifting Equipment |
| Overall Dimensions: |
1390X800mm / Scissor Lift Table |
| Lift Drive: |
Electric Lifting /Lifting Equipment |
| Lowest Height: |
460mm /Scissor Lift |
| Handle Height: |
1165mm / Lifter |
| Certificate: |
CE, SGS/ Lift Table |
| Net Weight: |
293kg / Scissor Lift Table |
| Power: |
AC Motor / Working Platform |
| Application: |
Building Crane |
| Carrying Capacity: |
Light Level |
| Driven Type: |
AC |
| Running Mode: |
Moving |
| Feature: |
Insulating |
Product Description
Prodcut Description :
Basics description :

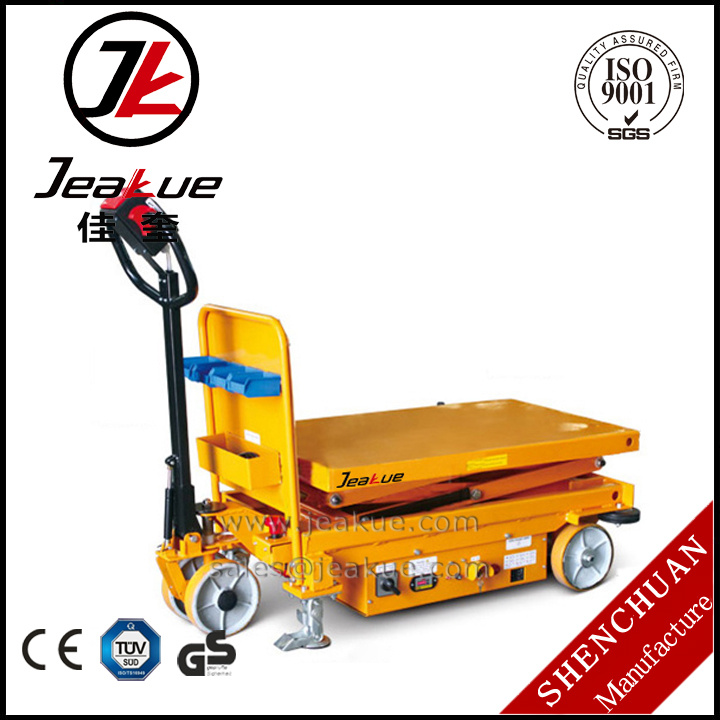

Product name : 800kg Hydraulic Lifting Portable Platform Table
Rated capacity : 800kg
Scissor lift table
Details descritpion :
800kg Hydraulic Lifting Portable Platform Table
1.Great design of electric lifting,electric moving.
2.Easy to me,even under load.
3.he ideal lifting table for frequently changing work sites and operating conditions
4.Strong battery and powerful hydraulic pump.Lift and lower at the touch of a button.Very stable.
5.Brake is released via drawbar handle.
6.Fully compliant with EN1570.
| Model | JK8625 | JK8626 | JK8627 | JK8628 |
| Type |
| Single shear fork | Double shear fork | Single shear fork | Double shear fork |
| Load Capacity | kg | 500 | 500 | 800 | 800 |
| Table Length(L) | mm | 1020 | 1020 | 1020 | 1020 |
| Table Width(W) | mm | 610 | 610 | 610 | 610 |
| Lowest Height(H1) | mm | 460 | 465 | 460 | 520 |
| Max.Height(H2) | mm | 990 | 1700 | 1050 | 1850 |
| Handle height(H4) | mm | 1165 | 1165 | 1165 | 1165 |
| Overall length(L2) | mm | 1380 | 1380 | 1380 | 1380 |
| Wheel Width(W1) | mm | 667 | 667 | 667 | 667 |
| Net Weight | kg | 203 | 250 | 241 | 293 |
| Battery parameters |
| 24V/70AH |
| Motor power (drive wheels) | W | 500 |
| Motor power (station) | W | 800 |
