| Prod Model: |
FY013 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Driving |
| Apllication: |
Furniture Equipment, Sofa and Bed |
| Input Voltage: |
DC12V or 24V |
| Stroke: |
50-1000mm |
| Mini Install Dimension: |
S+175mm |
| Load Capacity: |
8000n |
| Limit Switches: |
Inner |
| Protection Class: |
IP54 |
| Warranty: |
2 Years |
| Certification: |
SGS |
| Material: |
Plastic + Metal |
| Folded: |
Medical Bed Motor |
Product Description

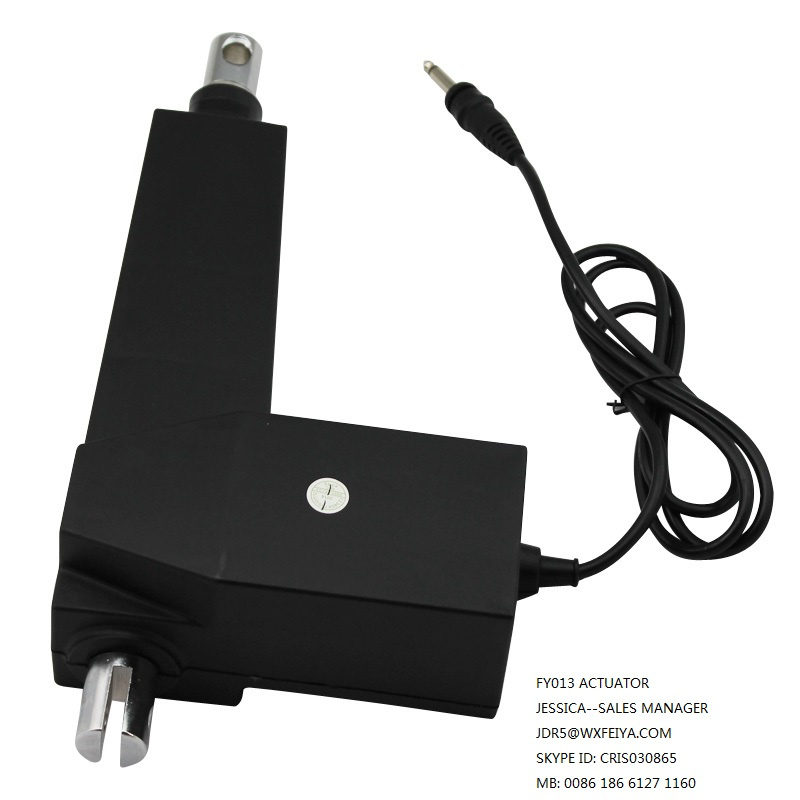

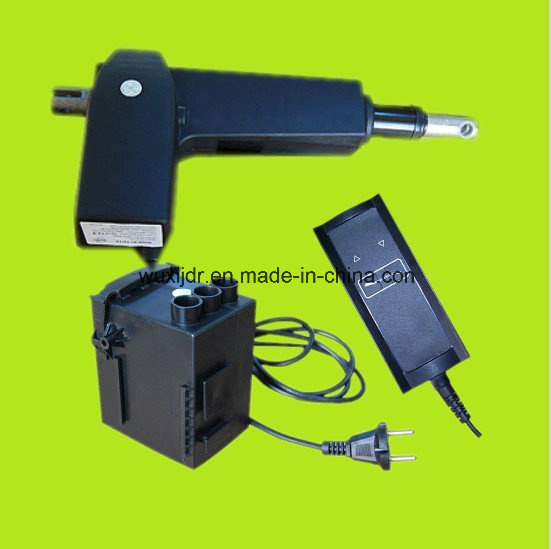

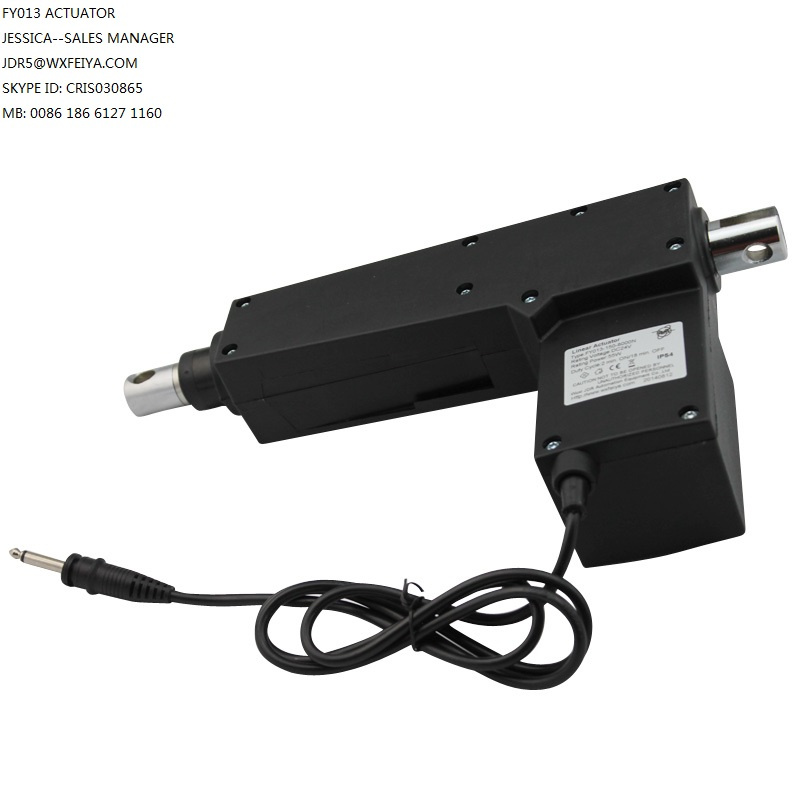

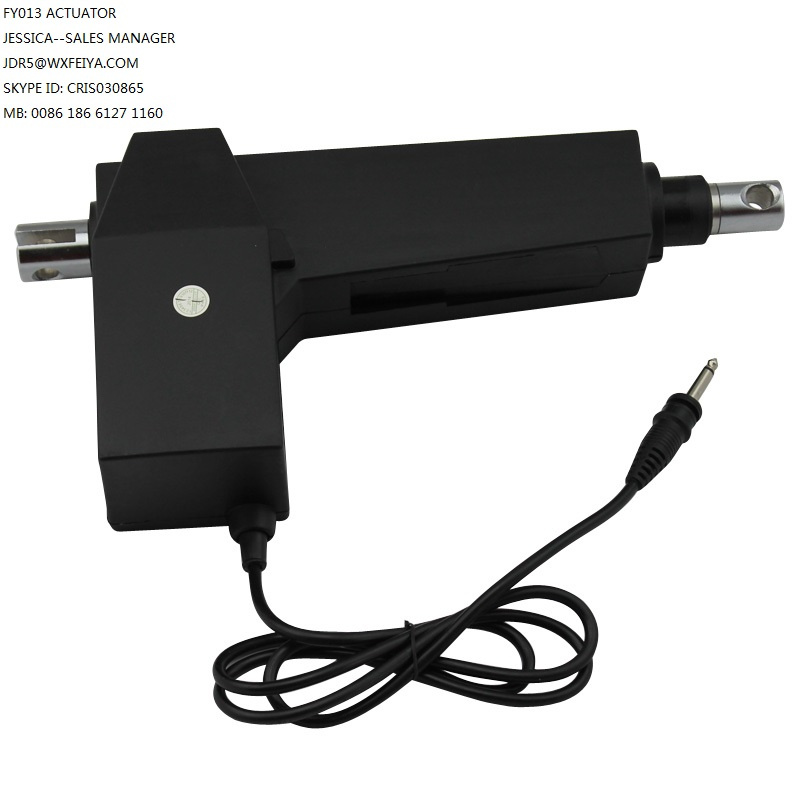

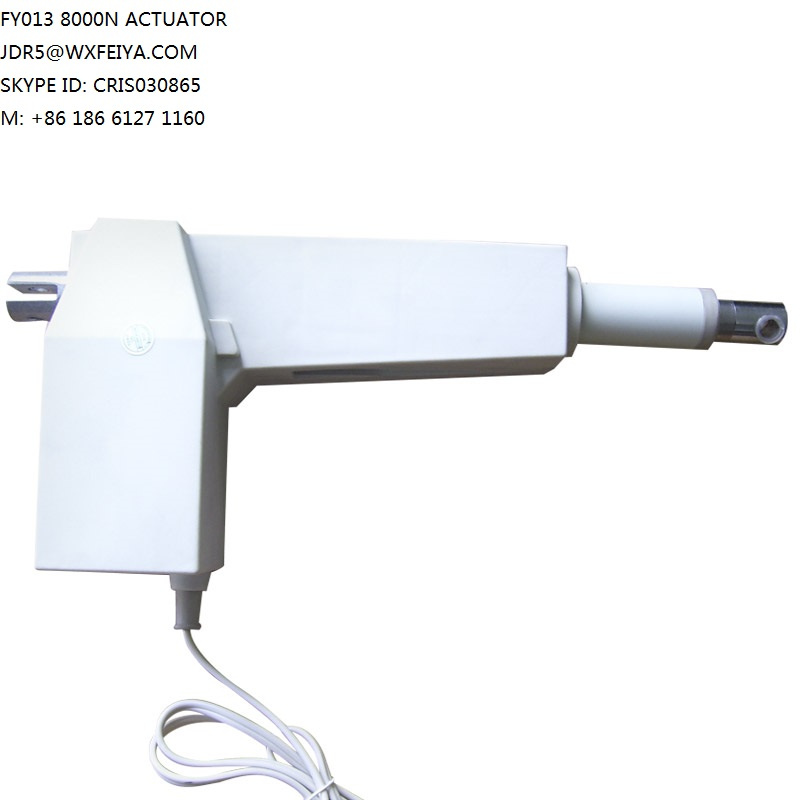

Nursing Bed Linear Actuator 6000N
1) Medical Linear Actuator
2) Used in Medical traction bed.
3) CE, RoHS approval
Specifications of FY013 Linear Actuator:
Name: Linear Actuator
Model: FY013
Usage: Electric Nursing Bed, Electric Hospital Bed, Personal Care Bed, other Application use
Input Voltage: 24V DC
Load Capacity: 6000N, 8000N
Free Load Speed: 4mm/s, 3mm/s
Standard Stroke: 50 mm --- 1000mm (Optional)
Installation Dimension: S + 175mm
Type of Duty: S2 -- 10 min (2 minutes work, 18 minutes rest)
Limit Switch: Builtin / Inner (can not be adjust after left factory)
Work Temp.: -26 to 65 centigrade
Protection Grade: IP54
Certificate: CE / EMC + LVD, RoHS

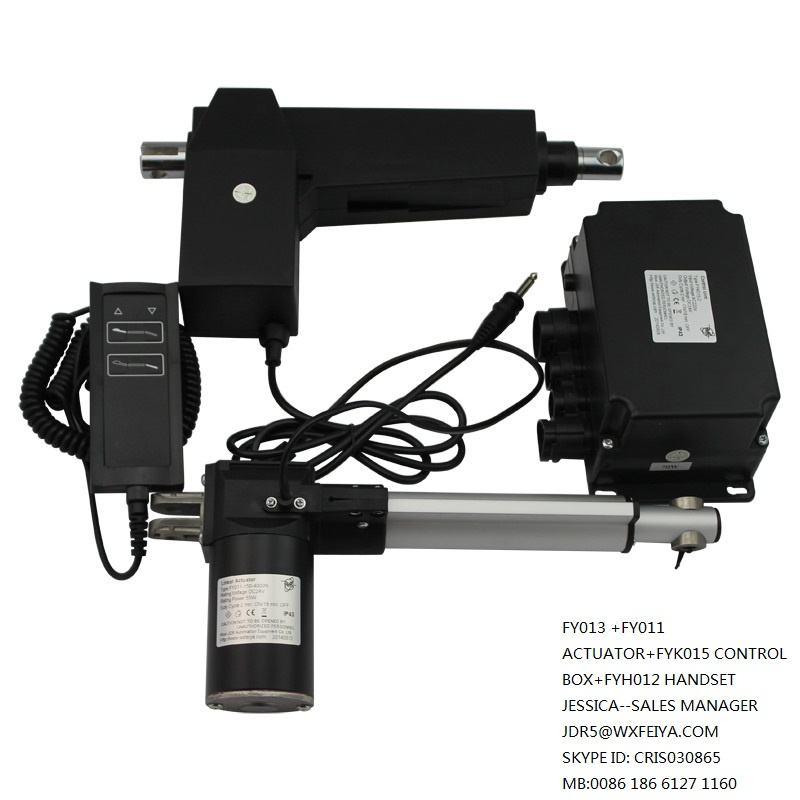

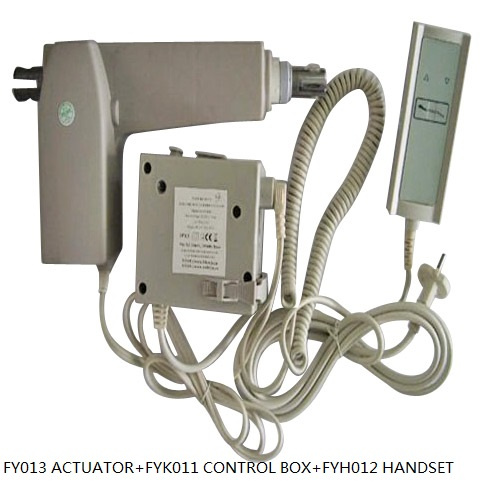

Control Box Used:
Control 1 Linear Actuator: FYK011-1, FYK012-1, FYK015-1, FYK016-1, FYK017A
Control 2 Linear Actuators: FYK011-2, FYK012-2, FYK015-2, FYK016-2
Control 3 Linear Actuators: FYK011-3, FYK012-3, FYK016-3
Control 4 Linear Actuators: FYK012-4, FYK016-4
Control 5 Linear Actuators: FYK012-5, FYK016-5
Control 6 Linear Actuators: FYK016-6
Handset Used: All FYH Series Handset, Pls contact us for detail pictures.
| Name: | Linear Actuator |
| Model: | FY013 |
| Usage: | Electric Nursing Bed, Electric Hospital Bed, Personal Care Bed, other Application use |
| Input Voltage: | 24v DC |
| Load Capacity: | 6000N, 8000N |
| Free Load Speed: | 4mm/s, 3mm/s |
| Standard Stroke: | 50 mm --- 1000mm (Optional) |
| Installation Dimension: | S + 175mm |
| Type of Duty: | S2 -- 10 min (2 minutes work, 18 minutes rest) |
| Limit Switch: | Builtin / Inner (can not be adjust after left factory) |
| Work Temp.: | -26 to 65 centigrade |
| Protection Grade: | IP54 |
| Certificate: | CE / EMC + LVD, RoHS |
| Control Box Used: | Control 1 Linear Actuator: FYK011-1, FYK012-1, FYK015-1, FYK016-1, FYK017A |
| Control 2 Linear Actuators: FYK011-2, FYK012-2, FYK015-2, FYK016-2 |
| Control 3 Linear Actuators: FYK011-3, FYK012-3, FYK016-3 |
| Control 4 Linear Actuators: FYK012-4, FYK016-4 |
| Control 5 Linear Actuators: FYK012-5, FYK016-5 |
| Control 6 Linear Actuators: FYK016-6 |
| Handset Used: | All FYH Series Handset, Pls contact us for detail pictures. |
Wuxi JDR Automation Equipment Co., Ltd, established in 2008, . Is a professional manufacturer and trading unit integrating the research, production and marketing of DC linear actuator. JDR's predecessor is Wuxi Feiya Electronical Equipment Co., Ltd, which was established in 2004.
Our company owns several automatic production lines and enough experience in the production and research of linear actuators and controllers. Our products are popularized in many occasions when need to be implemented with rectilinear motion such as electrical nursing beds, operational beds, traction beds, massage chairs, dental chairs, electrical sofas and show-cases. These products can adjust heights, move between front and behind, as well as angle change, which take the place of gas springs as well as AC decelerators.
Dreams drive science, technology creates life. Based on domestic market and aiming at overseas market, JDR has gradually started to establish perfect marketing net both at home and abroad.
"Quality First, Customer Paramount" is our established guidelines. "Based on honesty, providing high quality products and innovative service, striving after perfection" is our management concept.
With over 80 people's efforts, JDR is becoming better and better. We have sound management system and very low stuff turnover, and every department cooperate greatly.
Now, we have successful foreign trading experience in South Europe, West Europe, North Europe, North America, South America, Middle East and Southeast Asia.
We, Wuxi JDR, sincerely welcome your advices, suggestions and inquiries.
