| Prod Model: |
hydraulic hospital bed |
| Material: |
Plastic |
| Folded: |
Folded |
| Using Ambient: |
Hospital |
| Certification: |
ISO13485 |
| Type Of Hospital Bed: |
3 Function Bed |
Product Description

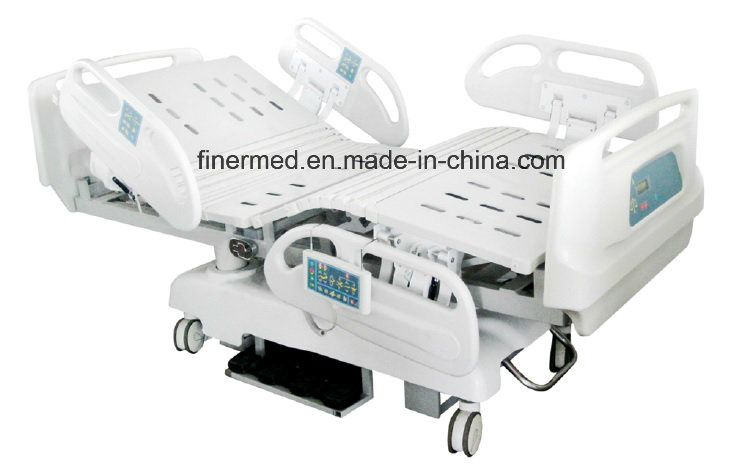

Eight function pedal control ICU electric hospital bed
ICU Electric Hydraulic Hospital Bed(CE/FDA)
Details:
In-bed scale system takes accurate weight of the patients
Audible alarm for patient away from bed.
Hydraulic system enables the heightadjustment, (reverse) trendelenburg.
Standard Function:
Detachable head and foot board
Four independence motors from LINAK
Weight readings system
With I. V. Pole
With Drainage bag hooks on both sides
Control hand held, can hook on the side rails
CPR handle
Electronic function Lock at end of foot panel, nurse control (optional)
Water proof mattress high density foam (optional)
Parameters:
Full Length 2150mm
Full width 1030mm
Maximum safe load 250kg
Accuracy of measurement 0.1kg (Optional 0.05kg 0.02kg)
Bed base height range maximum height 750mm
Maximum low 500mm
Bed base angle position adjustable Back section 0° ~80°
Knee section 0° ~40°
Trendelenburg 0° ~12°
Patient touching surface 900*1950mm
Castor diameter 150mm
Accessories:
1)I. V. Pole
2)Wheels
3)Automatic lifting railing
4) IV Pole
| ed Frame | cheap medical supplies made of cold-rolled steel plate, anti-rust treatment electric hospital bed |
| Headboard/footboard | icu hospital bed ABS, detachable |
| Bedboards | Steel 4-part with abs plastic edge covered |
| Backrest | For x-ray |
| Motor | Quiet and robust electric actuators provide reliable operation |
| Build-in control of all electrically operated functions and movements |
| Linak motor from Denmark |
| Backup battery | Equipped in the control box of motor system |
| Handrails | ABS handrails with embedded operator |
| Weighing Scale screen | Embedded in footboard |
| Nurse control Panel | Embedded in footboard |
| Manual CPR Handles | Each side on head side |
| Wheels | Four silent wheels with central-controlled braking system, φ125mm |
| Weight load | Fully tested sturdy construction capable of taking a maximum user weight of up to
250kg |
| Functions available |
| Backrest adjustment | 0-75° |
| Footrest adjustment | 0-40° |
| Height adjustment | 575-815mm |
| Trendelenburg | 0-12° |
| Anti-trendelenburg | 0-12° |
| Left turning | 0-17° |
| Right Turning | 0-17° |
| Weighing Function | Accuracy 0.01KG |
| Standard Accessories |
| Headboard/Footboard | 1set |
| Side Rails | 1set |
| Bed Frame | 1 set |
| Bedboard | 1 set |
| Wheels | 1 set |
| Patient Name Card | 1 piece |
| IV Pole Holder | 4 pieces |
| IV pole | 1 piece |
| drainage bag holders | 2 pieces |
Thanks for your attention to Finermed, One stop solution for medical and healthcare industry
Ningbo Finer Medical Instruments Co., Limited (as Finermed in short), is professional and powerful in manufacturing and exporting medical and healthcare products in Ningbo, China.
Since company was founded, Finermed is always working hard and committed to provide guaranteed high quality, competitive prices, excellent services and best value for our customers all the time. Till now, we also cooperating with more 150 Superior partner factories and have over 3000 items involving medical Disposable, Medical equipment, Hospital furniture, , Rehabilitation and Homecare products. Our medical products have been mainly exported to Europe, U. S. A., Middle East, Africa and so on., which was approved by ISO13485: 2003, CE, FDA.
With more than 10 years' experience, with a team of experienced staff in medical field, with strong factory supports, We are able to your strong supporter in a long view, sincerely invitation with you to be one of our cooperation partners in the near future.
