| Prod Model: |
TN-008 |
| Color: |
Ral7035, Ral9004, etc |
| Logo: |
Silk Print, Aluminum Sticker, Rubber Sticker |
| Packing Style: |
Assembled or Dis-Assembled |
| Shipping: |
Sea, Air, Train, Truck |
| Material: |
SPCC Cold Rolled Steel |
| Certificate: |
Ce. RoHS. SGS |
| Usage: |
Network Integration System |
| Installation: |
Wall-Mounted Cabinet |
| Certification: |
GS |
| Condition: |
Used |
| Type: |
Wall Mount |
| Fan Number: |
Optional |
| Capacity: |
4u~18u |
Product Description

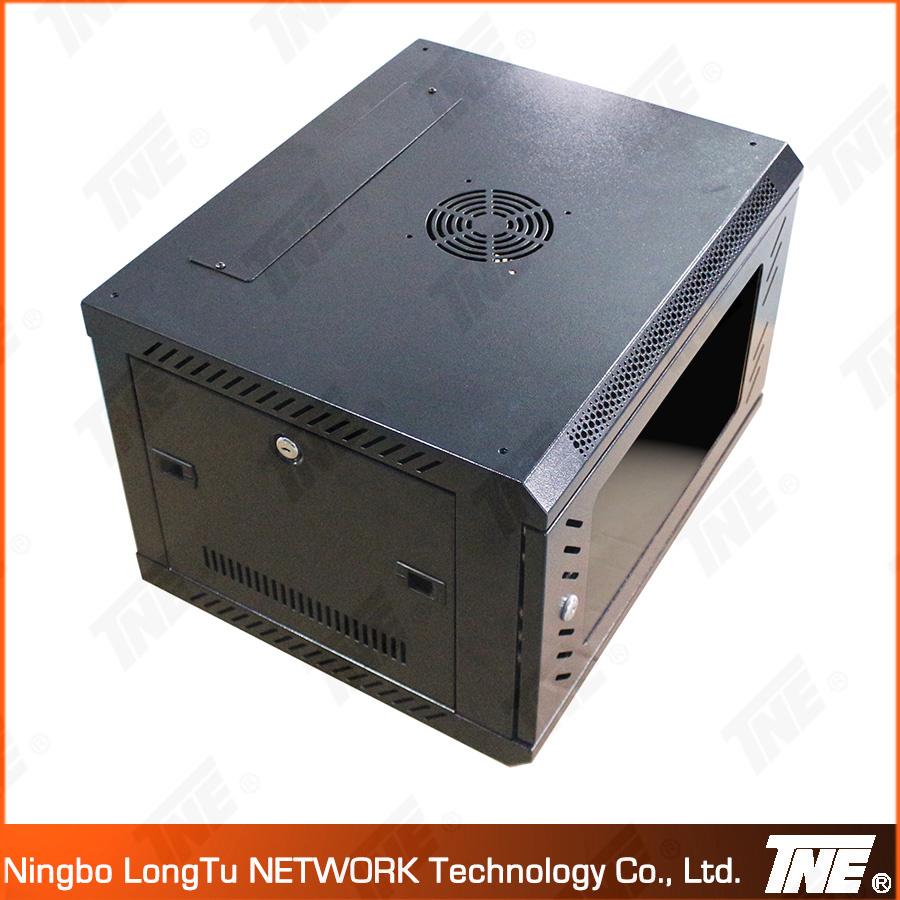

6U 550x450 Simple Wall Cabinet with Flat Packing Structure
SPECIFICTION.- One Section/ Single Section Wall Mount Cabinet
- Flat Pack Type
- Standing or wall mounting installation
- Adjustable feet and heavy duty castors are optional
- Removable side panels, side locks optional
- Cable entry on both of top cover and bottom panel
- 120mm fan available (220V or 110V)
- Turning angle of front door is over 180 degrees
SPECIAL FEATURES| Grounding screw | Front and Rear door, Frames |
CERTIFICATIONSWARRANTY| Product Warranty Period (Worldwide) | 3 Years |

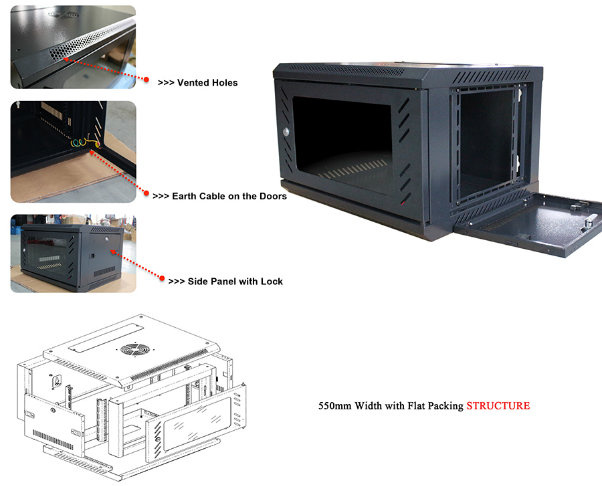

Standard:Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standardMaterial:High grade cold rolled steel.Thickness:Mounting profile: 1.50mm others: 1.2mmLoading Capacity:Static Loading: 60kgsSurface finish:Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic paintingDegree of Protection:IP20.Body Color:RAL7035, RAL7044, RAL9004 etc.Details Picture Shows
Size Form | Model No. | Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
| TN-008 | 4U | 550mm | 450mm/600mm | 279mm |
| TN-008 | 6U | 550mm | 450mm/600mm | 368mm |
| TN-008 | 9U | 550mm | 450mm/600mm | 501mm |
| TN-008 | 12U | 550mm | 450mm/600mm | 635mm |
| TN-008 | 15U | 550mm | 450mm/600mm | 769mm |
| TN-008 | 18U | 550mm | 450mm/600mm | 901mm |
| TN-008 | 22U | 550mm | 450mm/600mm | 1082mm |
| TN-008 | 27U | 550mm | 450mm/600mm |
1304mm
|

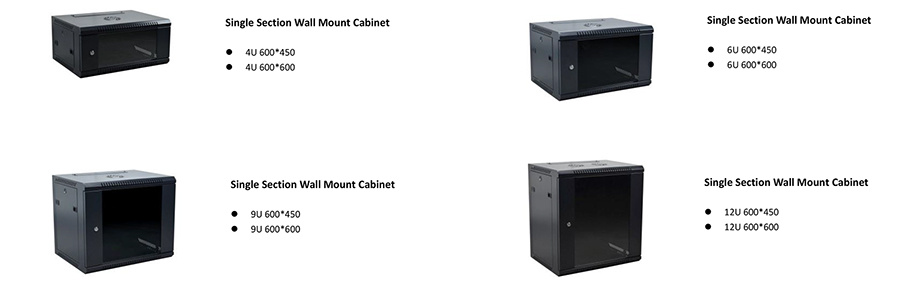

Size Example
Optional Accessory- Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
- 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
- 1U, 2U support board
- Vertical Cable manager
- 19'' Power distribution unit(PDU)
- 19'' Blanking plate 1U, 2U, 4U
- Heavy duty castor, Heavy duty castor with braker
- Optional lock for side panels
- Earth kit
And so on...
