| Prod Model: |
Tempered Safety Glass with hole and cutout |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Size: |
2134X3300mm; 1830X2440mm; 2134X3660mm; etc |
| Type: |
Tempered |
| Color: |
Clear |
| Technique: |
Tempered Glass |
| Thickness: |
6mm |
| Shape: |
Flat |
| Usage: |
Home Appliance |
Product Description

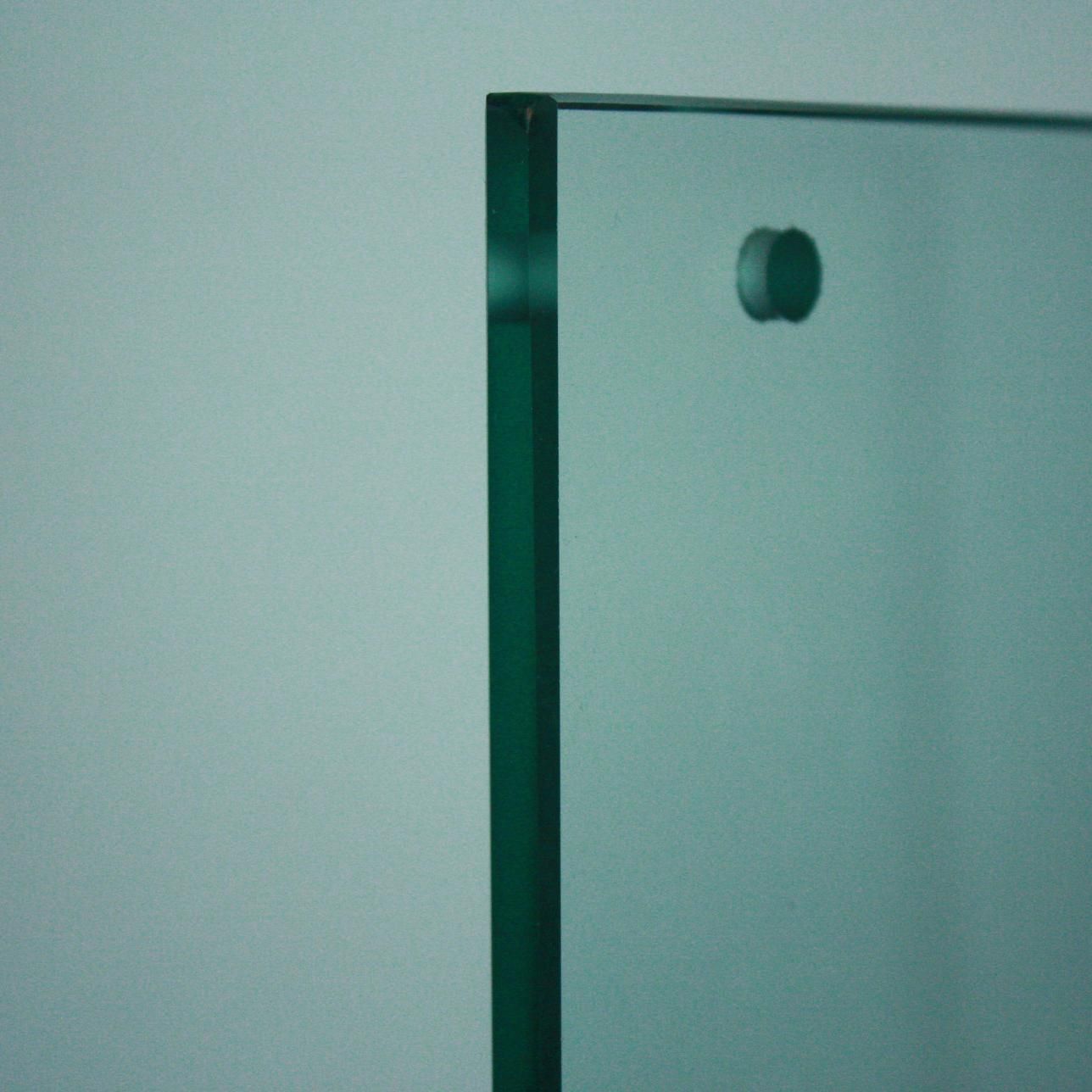

| 6mm Tempered Safety Glass with Hole and Cutout |
Tempered glass/6mm toughened glass/strengthened glass are made by forming compressive stress on the surface of the glass and heating the glass up to its intenerating temperature and then make the glass uniform cooling quickly. During the process of cooling, the exterior part of the glass is solidified because of the rapid cooling, while the interior part of the glass shrinks because of slow cooling, then forming compressive stress on the surface of the glass and tensile stress inside the glass, thus improving the intensity and heat stability of the glass.
Tempered glass/6mm toughened glass/strengthened glass can be with holes or cutouts to process into tempered laminated glass, tempered insulated glass, etc.
Standard: EN 12150; ASTM 1048; BS 6206: 1918; GB 15763.2-2005; AS/NZS 208: 1996
A
Pplications:
Tempered glass/6mm toughened glass/strengthened glass is safety glass, which is widely used as window glass, door glass, curtain wall glass, fencing glass in buildings, hotels, curtain wall, etc.
Color of tempered glass/6mm toughened glass/strengthened glass: Clear, brown, blue, green, grey, etc.
Max specification:
Flat tempered glass/6mm toughened glass/strengthened glass: 3000*8000mm
Bent tempered glass/6mm toughened glass/strengthened glass: 3000*5000mm, R=1500mm
Considering the characteristics of tempered glass/6mm toughened glass/strengthened glass, glass size should be confirmed before making production. Once tempered glass size is confirmed, tempered glass/toughened glass/strengthened glass can not be made mechanical treatment any more, otherwise, tempered glass/6mm toughened glass/strengthened glass will be broken.
Competitive Advantage:
Tempered glass/6mm Toughened glass/Strengthened glass has a very good performance of anti-curve, anti-impact intensity, 3 to 6 times better than normal glass. Tempered glass/Toughened glass/ Strengthened glass can afford pressure over 95MPa on the surface. Tempered glass/Toughened glass/ Strengthened glass has high stability even under temperature change of 200-300 centi-degree, while normal glass can only afford change of 70-100 centi-degree. Tempered glass/Toughened glass/ Strengthened glass becomes small sand shape if tempered glass/toughened glass/strengthened glass is broken under big force, which guarantee safety and less loss.
Safety performance: Tempered glass/6mm toughened glass/ strengthened glass will appearance hurtless obtuse angles when breakage.
Strength performance: Four times more than ordinary glass.
Heat stability performance: Three times more than ordinary glass, could bear the temperature change about 200° C.
1. Safety
2. Tempered glass/6mm toughened glass/ strengthened glass has 4-5 times strength than ordinary glass
3. Hot stability
4. Generously satisfy with different clients' requirement to meet different designs
Beijing Northglass Technologies Co. Ltd, a leader in glass industry, has been engaged in the research, development, processing glass since 1987. Produce range includes: Laminated safety glass, tempered safety glass, low e insulated glass, reflective glass, silk screen printed glass(ceramic frit glass, enamalled glass), tempered glass, curved tempered glass, hot curved glass, heat strenghened glass, fire proof glass, bullet proof glass, ultra clear glass(low iron glass), etc for curtain wall shower doors, windows, facades and furniture applications.
By far, we have asset USD50 million. Our head quarter is in HongKong, and our 3 fabrication companies are in China mainland having more than 1, 000 employees, of whom over 46% is specialized techical personel. Our company covers more than 390.000sqm. We have massive elites working at each process of working, among whom, professional technicians are over 26% and employees with Bachelor's degree are over 93%.
Our glass pass Australian CSI certificates, US IGCC SGCC certificates, European CE certificates and Chinese national certificates. Now we are working with customers in over 100 countries. To help customer to better achieve their success is our aim. Welcome you work with us, and establish long term cooperation!
