| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
| Prod Model: | Jaye |
|---|---|
| Wattage: | Customized |
| Voltage: | Customized |
| Name: | Swimming Pool Water Heating Element |
| Logo Mark: | Make as Customer Required |

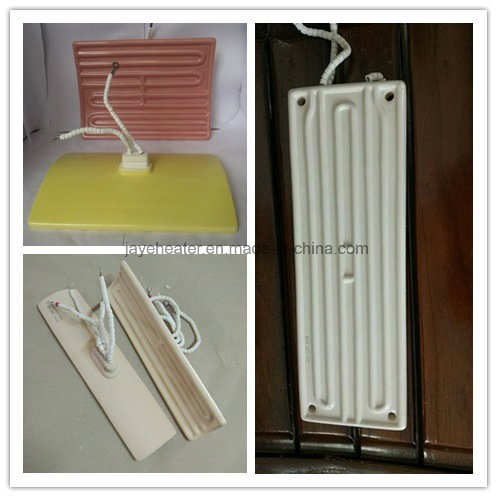

Electric Infrared Heater is efficient, robust heaters which provide long wave infrared radiation. They are used in a diverse range of industrial and engineering applications such as thermoforming heaters, packaging and as heaters for paint curing, printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas. Best Ceramic Space Heater produced by Yuheng include ceramic trough elements, ceramic hollow elements, ceramic flat elements, and ceramic infrared bulbs.
Main technical parameter and property:
1. Rupture strength for base body: | 440Kg/cm2 |
2.Resistance in common temperature: | 1012 ohm 0cm |
3.Property:good chemical stability;strong causticity-resistance;perfect oxidation-resistance | |
4.Heat losing in the non-radiation surface is small | |
5.The base body is heated to 800 C and put in cold water repeatly for ten times and no cracking. | |
6.The radiated element is heated after electrifying to rating power and immerged into cold water after interruption of power supply for forty times without damage. | |
7.The max radiance of element>0.9 | |
8.The effect of energy saving is obvious,increasing 10-25% compared with silicon carbide element | |
9.The life span can prolong more than a few times compared with silicon carbide element. | |

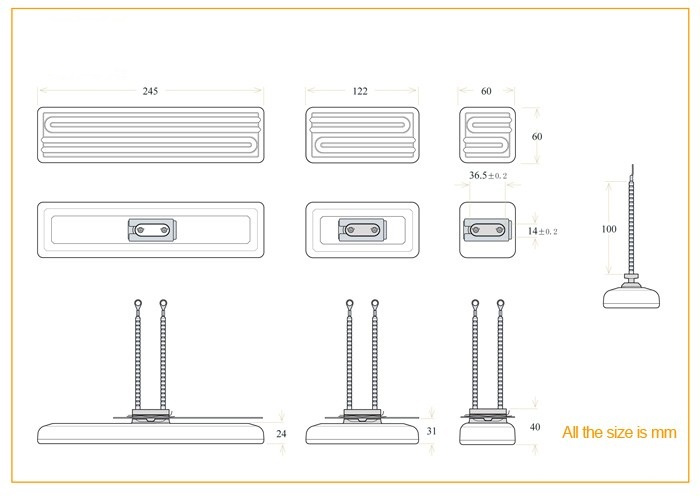

Specification:
Size(mm) | Shape | Power(Kw) | Size(mm) | Shape | Power(Kw) |
245×65 | arc | 0.25-1.0 | 300×300×16 | flat | 0.8-1.5 |
240×60 | arc | 0.5-1.0 | 240×160×16 | flat | 0.6-1.0 |
125×65 | arc | 0.2-0.5 | Φ70 | disk | 0.1-0.2 |
120×60 | flat | 0.1-0.325 | Φ100 | disk | 0.2-0.3 |
120×60 | arc | 0.1-0.325 | Φ140 | disk | 0.3-0.4 |
120×120 | flat | 0.1-0.8 | Φ150×Φ100×Φ60 | haff | 0.25-0.3 |
120×120 | arc | 0.1-0.8 | 125×125 | flat | 0.4-0.8 |
Applying domain:
Embedding type ceramic far infrared radiated heating elements are produced based on direct of international advanced technique and many years'research,with high conent of technology,good whole property,cleanness & sanitation,convenient assemble,acid-resistance,erodibility-resistance
Safe use,long life span ect.Widely used in vacuum plastic uptake,food roast, medical treatment and sanitation ect various infrared dryness and roast,solidify ect.They have ideal energy saving effect in the industry such as electron spin,light industry, electromechanical chemical industry, medical treatment,food industry ect and have obvious society benefit and economy benefit.
JAYE company can produce based on specification of customer.
Shape:black hollow core,disk,flat plate,arc
Optional Power: 100W-2000W(based on size)
