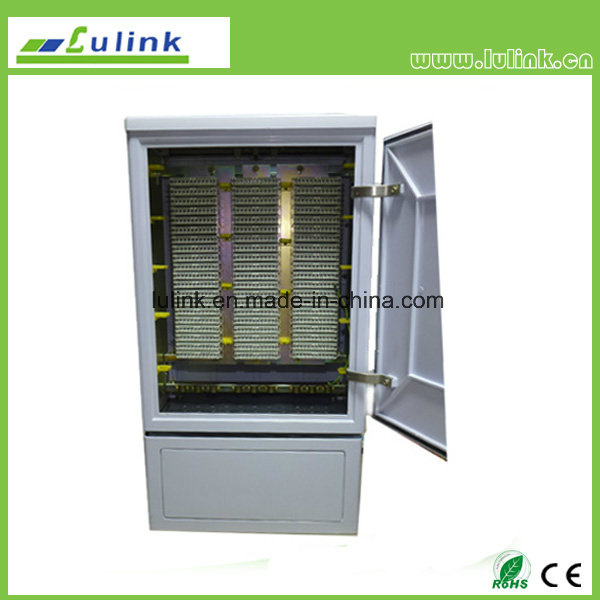

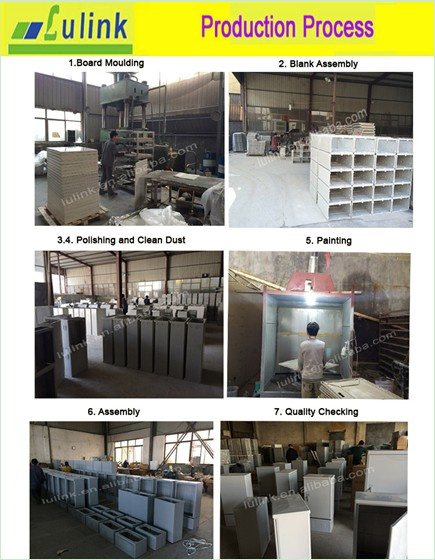

600/900/1200 pairs SMC Cross Connection Cabinet,
Fiber Optic Distribution Cabinet


Name of CommoditySMC Cross Connection Cabinet (Abbreviated is CCC)

Item No.LK-CCC600/900/1200
Size
960mm*530mm*320mm for 600pairs
1435mm*750mm*320mm for 900&1200pairs
(Remark: Tolerances is±10mm)
ColorGrey and white
Product FeaturesIt used for outdoor installation as point for flexible interconnection between the primary cables and the secondary cables of telecommunication cable heads.. it shall consist of three main parts

The CCC Housing

It is molding by SMC materials (glass fiber reinforced polycarbonate plastic) in high temperature.
The frame in good thickness, the door and bottom sealing plate are provided with sealing device, the waterproof door locks let the CCC in safe and reliable, good sealing performance has good insulation effect, can prevent rain and moisture into the box, which can effectively prevent the tank vapor condensation.
The surface of the housing sprayed evenly, no leakage and blowout, out of plastic, no impurities, and plastic solid. Long service life, aging resistance, corrosion resistance, impact resistance, and can resist the accident or the destruction of malignant.











The cable terminal blocks (CTB)
Which shall be separable to facilitate installation and replacement of any part during operation:

The CCC is accommodated termination block of 50,100 and 200 pairs with total capacity of 600, 900, and 1200pairs, Wire guiding rings are provided on both sides of each module.
The terminal block housing made of PBT materials.
The terminal block is insulation displacement contact system (IDC). The connection system facilitates termination of cable wire without striping the insulation, without soldering and without screwing.

The terminal blocks provided for 50, 100, and 200 pair shall consist of disconnection modules for 10 pair each, mounted on a back mount frame of stainless steel.

The individual pair terminals in each module shall have identification number 1 through 10. Each wire terminal shall be suitable for connecting two copper wires of 0.4 mm respectively 0.65 mm diameter .Wire guiding rings shall be provided on both sides of each module.

Each 50,100 and 200 pair block module shall be provided with a dust cover and a labeling plate indicating ,row number ,block number ,cable number, and pair from " " To " "

Accessories
The Following accessories for the terminal block shall be provided with each cabinet: insertion tooling, disconnection, plugs, test cords, 4 sets of anchor bolts, the sealing mud, brochures, stickers, 3 keys.





Technical indicators
The use of environment: environment temperature: -40 to 55ºC
Relative humidity:  ≤95%
Temperature: 40ºC
Atmospheric pressure: 70 ~ 106Kpa.
Electrical performance: contact resistance:  ≤3 MΩ
Insulating resistance:  ≥5×104MΩ
Dielectric strength: 50HZ, 500V AC voltage 1min no breakdown and flashover phenomenon.
Waterproof level: IP65.
Flame retardant performance: V1

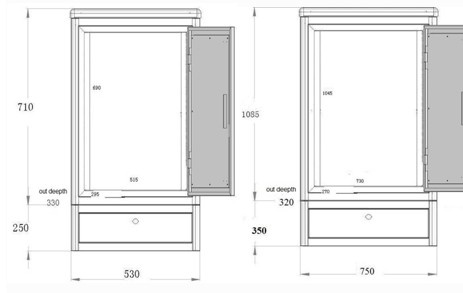

Schematic diagram of product size and structure

LK-CCC600                                                             LK-CCC900 / 1200
PackingCCC is sealed with a plastic bag and put it into the carton with shock protection foam, The outer carton which show product name, item number, quantity, country of origin, manufacturer name and trade mark, Year of manufacturing, Maximum stacking height, rainproof, and direction.
CTB wiring operation in the CCCCTB wiring operation in the CCC:
Taken out the seal ring from the bottom of the CCC, cut the seal hole and the hole size which follow up the enter cable's OD, then put back the seal ring to the original position.
After the cable enter the cabinet, the cable should be fixed on the cable guider ring which in the bottom of the cabinet, reserve the appropriate length cable which up to the cable guider ring located the top of the CCC and even 200mm longer, then use the insertion tooling finish the cable cut and keep the appropriate length of the cable core.
The cable core could be up and down about four wiring by orderly. Put the 10pairs mould to the back mount frame of stainless steel. Every 10pairs in a group, use the cable tie to fix the wire to the left bottom of the stainless steel back mount frame, The wire through the clamp on the bottom of the mould, then leading the wire into the contact slotPressing the wire onto the contact blades, and Cutting the excess wire
Succeeded the wire connecting, make the insulation performance test, and then install the second mould till finish the whole process.

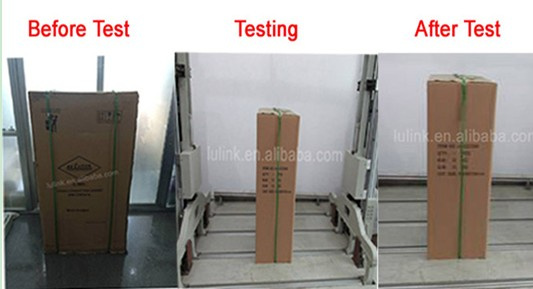

Drop For Packing test

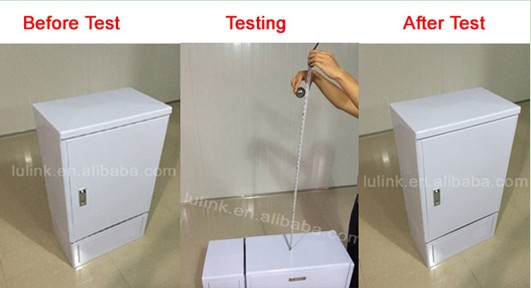

Mechanical Chock Test
METHOD

This test have been done in Electro by using 1 kilo gram metal ball drop on 1 meter , which is similar to accident like hitting the cabinet by a bicycle

Mechanical chock AreaNo.Observations
TOP1No damaged
Side2No damaged
le='font:7.0pt "Times New Roman"'>       Flammability tests

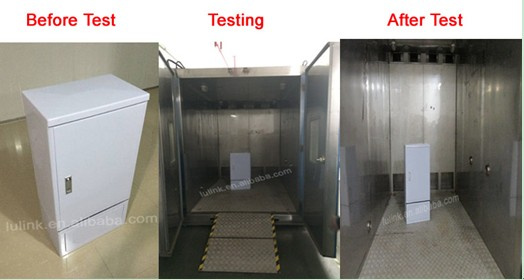

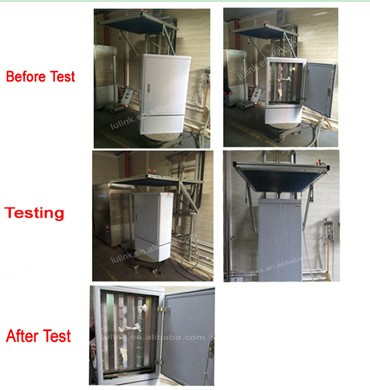

 Water test
METHOD
Electro used a water dropping with 2 bar pressure for small time (2 minutes) from upper side and 180 degree around.


Temperature test
METHOD

To put the cabinet into chamber where a temperature can be changed with 24 hours from -15 degree up to +55 degree, then they chock the cabinet with 1kg ball from 1 meter to test if there is any cracks in the cabinet
RESULTS
Impact AreaNo.Observations
 1No damaged



Flammability tests

MethodTable: Flammability tests according to: V-1P
Model Number:AC AUTOMATIC VOLTAGE REGULATOR (enclosure)
Material spec. :mm thickness
identifier /Sample No.t1
(≤30s)
t2
(≤30s)
t1+t2t3t2+t3
(≤60s)
Whether or not specimens burn up to the holding clampWhether or not specimens drip flaming particles that ignited the cotton indicator
1# / A0.50.51.00.51.0NONO
1# / B0.50.51.00.51.0NONO
1# / C0.50.51.00.51.0NONO
1# / D0.50.51.00.51.0NONO
1# / E0.50.51.00.51.0NONO
Total
(≤250s)
2.52.55.0--------
Note:
1) After flame time after first flame application, t1.
2) After flame time after second flame application, t2
3) Afterglow time after second flame application, t3
4) Total after flame time for any condition set (t1
 plus t2  for the 5 specimens) ≤250s
