| Prod Model: |
TN-008 |
| Color: |
Ral7035, Ral9004, etc |
| Logo: |
Silk Print, Aluminum Sticker, Rubber Sticker |
| Packing Style: |
Assembled or Dis-Assembled |
| Shipping: |
Sea, Air, Train, Truck |
| Material: |
SPCC Cold Rolled Steel |
| Certificate: |
Ce. RoHS. SGS |
| Usage: |
Network Integration System |
| Installation: |
Wall-Mounted Cabinet |
| Certification: |
GS |
| Condition: |
New |
| Type: |
Wall Mount |
| Fan Number: |
Optional |
| Capacity: |
4u~18u |
Product Description

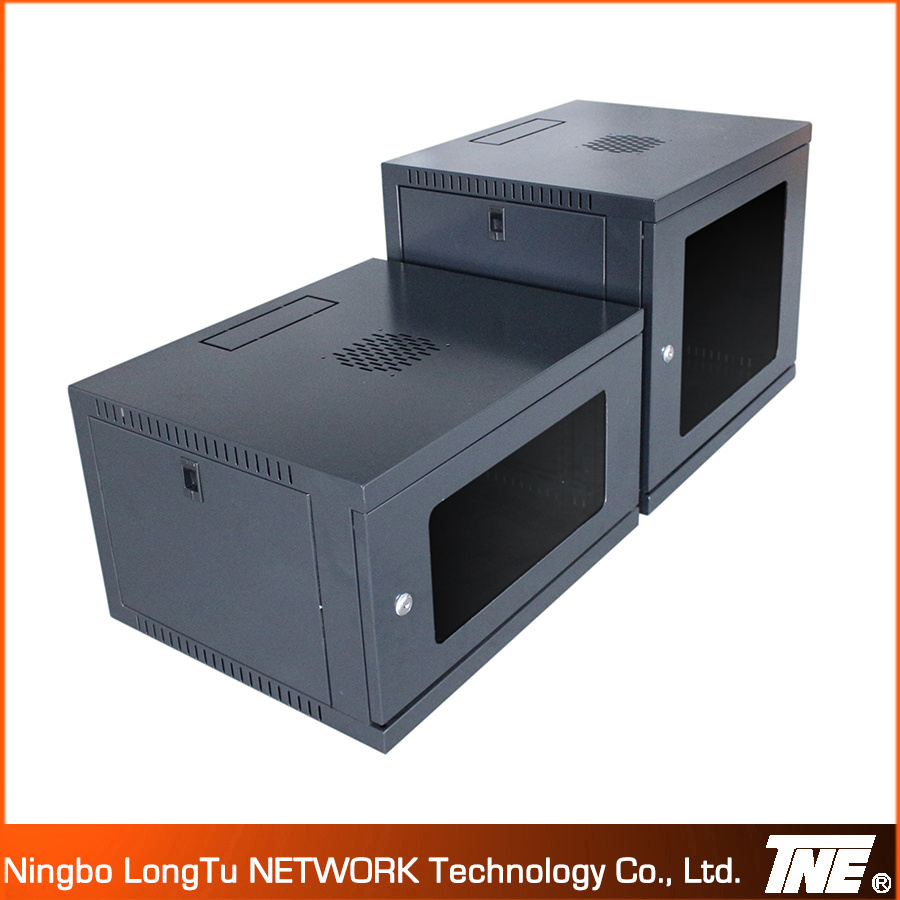

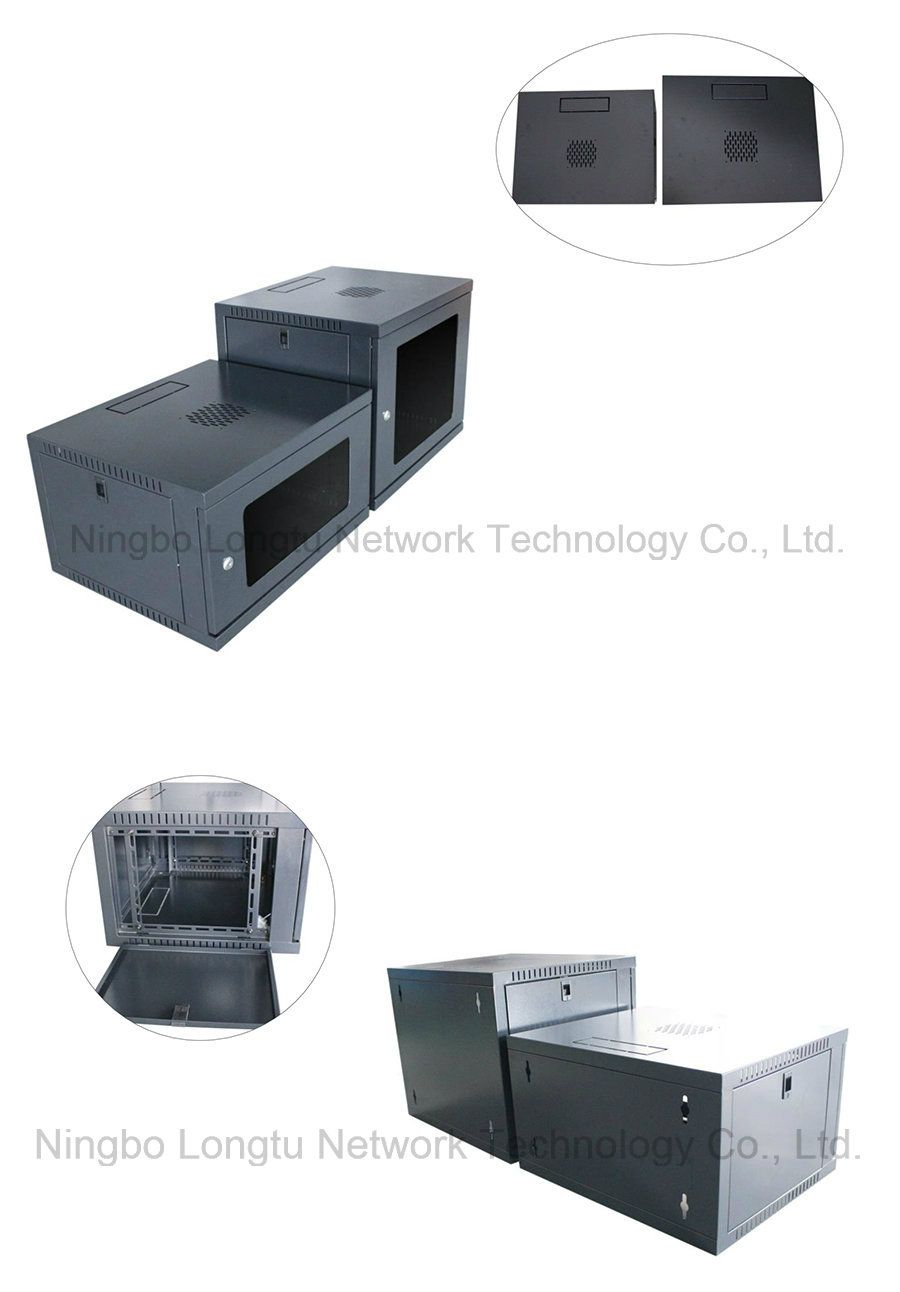

550mm Width Wall Mount Network Cabinet for easy installation servers
Description- One / Single Section Wall Mount Cabinet
- Can be Disassembled, Flat Packing, Save the Shipping Cost.
- Standing or wall mounting installation
- Adjustable feet and heavy duty castors are optional
Features- Easy mounting installation
- Removable side panels, side locks optional
- Cable entry on both of top cover and bottom panel
- 120mm fan available (220V or 110V)
- Turning angle of front door is over 180 degrees.
- SPECIAL FEATURES
| Grounding screw | Front and Rear door, Frames |
CERTIFICATIONS WARRANTY| Product Warranty Period (Worldwide) | 3 Years |
-
- Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard
Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 1.50mm others: 1.2mm
Loading Capacity:
Static Loading: 60kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Degree of Protection:
IP20
Body Color:
RAL7035, RAL9004 etc.
Size Form
Model No.
| Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
TN-008
| 4U | 550mm | 450mm/600mm | 279mm |
TN-008
| 6U | 550mm | 450mm/600mm | 368mm |
TN-008
| 9U | 550mm | 450mm/600mm | 501mm |
TN-008
| 12U | 550mm | 450mm/600mm | 635mm |
TN-008
| 15U | 550mm | 450mm/600mm | 769mm |
TN-008
| 18U | 550mm | 450mm/600mm | 901mm |
TN-008
| 22U | 550mm | 450mm/600mm | 1082mm |
TN-008
| 27U | 550mm | 450mm/600mm |
1304mm
|
Optional Accessory- Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
- 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
- 1U, 2U support board
- Vertical Cable manager
- 19'' Power distribution unit(PDU)
- 19'' Blanking plate 1U, 2U, 4U
- Heavy duty castor, Heavy duty castor with braker
- Optional lock for side panels
- Earth kit
And so on...
