| Prod Model: |
TQL-MFC500-3015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
Import Fiber Laser |
| Laser Power: |
2kw(Optional) |
| Processing Scale: |
3000mm X 1500mm |
| Power Demand: |
380V/50Hz |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Linear Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
Product Description

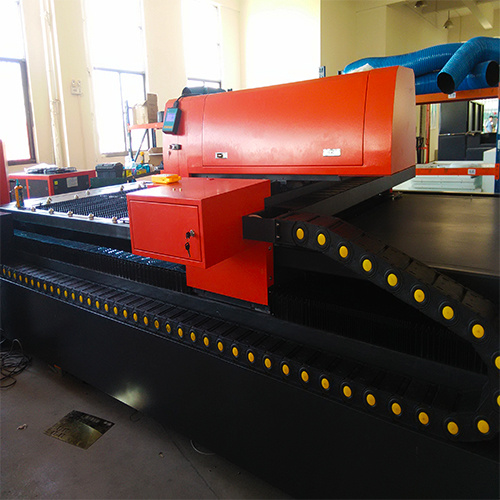

500W Fiber CO2 Laser Cutting Engraving Marking Machine
1. Machine features
1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2) High cutting speed: Cutting speed is more than 40m/min
3) Stable running: Adopting the top world import fiber lasers, stable performance, and key parts can reach 100, 000 hours;
4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency
5) Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6) Low maintenance: Fiber line transmission no need reflect lens, save maintenance cost;
7) Easy operations: Fiber line transmission, no adjustment of optical path;
8) Super flexible optical effects: Compact design, compact and easy to flexible manufacturing requirements.
2. Application Industrial
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
3. Applicable materials
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.
Our Strength
4.Technical paramters
| Model | TQL-MFC2000-4020 | TQL-MFC2000-3015 | TQL-MFC1000-4020 | TQL-MFC1000-3015 |
| Laser power | 2000W | 2000W | 1000W | 1000W |
| Laser type | Import fiber laser | Import fiber laser | Import fiber laser | Import fiber laser |
| Laser wave | 1070nm | 1070nm | 1070nm | 1070nm |
| Processing scale | 4000X2000mm | 3000X1500mm | 4000X2000mm | 3000X1500mm |
| X axis stroke | 4000mm | 3000mm | 4000mm | 3000mm |
| Y axis stroke | 2000mm | 1500mm | 2000mm | 1500mm |
| Z axis stroke | 120mm | 120mm | 120mm | 120mm |
| Max cutting thickness | 16mm | 16mm | 12mm | 12mm |
| Location precision | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
| Re-location precision | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Power demand | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Worktable max.load | 1600KG | 1600KG | 1600KG | 1600KG |
| Cooling way | Water cooling | Water cooling | Water cooling | Water cooling |
| Max speed | 40m/min | 40m/min | 40m/min | 40m/min |
| Cutting area | 0.2-16mm | 0.2-16mm | 0.2-16mm | 0.2-16mm |
| Weight | 12T | 11T | 12T | 11T |
| Outline size(mm) | 10870*3650*2130 | 9320*3280*2130 | 10870*3650*2130 | 9320*3280*2130 |

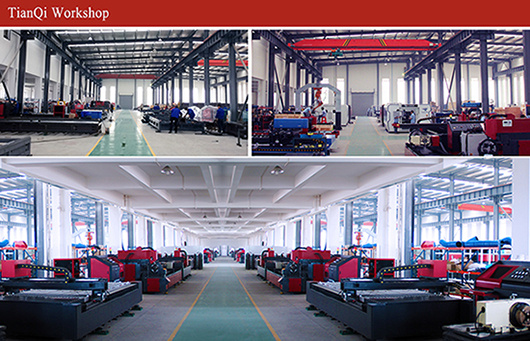

Company Shows
After-Sale Service
Packing and Shipping
Tianqi Laser is a world-famous metal laser cutting machine manufacturer which is specializing in R&D, manufacturing and selling of YAG and fiber laser cutting machine. Our group has our own import and export rights. We are the R&D Manufacturing Base of Hubei Province, Laser Optical Institute Listed Corporation of Hubei Province, Key High-Tech Enterprise of Hubei Province, Standing Committee Member of China Optical Society and R&D Base for China USTC Optoelectronics Postgraduates. We have strategic cooperation with Tianjin University, Hefei Optical Institute and other famous universities.
Products
Tianqi Laser main product YAG laser cutting machine, fiber laser cutting machine, laser welding machine, laser marking machine, robot machine. More than 30 kinds of industrial laser products and so on. It has been widely used to manufacture sheet metal processing, metal processing, advertising, kitchen utensils, automobile, lamps and lanterns, saws blade, electrical switch gear, metal handicrafts, textile machinery, food machinery, glasses manufacture, aerospace, medical equipment, meters and so on...Especially in sheet metal processing industry has replaced the traditional processing method, deeply industry users favor.
Tianqi Group' S newest development of six series fiber metal laser cutting machine is in the leading position in China, it has excellent beam quality, high conversion efficiency, fast cutting speed and low cost, strong mobility, suitable for various flexible cutting processing.
Design Features
Tianqi Laser, through continuous self-development, has developed the laboratory device into a 24-hour stable operation laser processing equipment. We have our own patent technology of ND: : YAG laser.
Quality
In order to guarantee the performance and quality of our products, Tianqi Laser strictly controls all processes, including processing, assembly and delivery.
Service
Tianqi Laser has established 28 domestic offices and 6 office abroad, resident marketing team and technical service personnel, to provide comprehensive pre-sale, sale and after-sale support and service.
In 2008, Tianqi Group became the Long-term OEM Supplier for the US McQuay Company, JP Daikin Corporation, Wuhan Iron and Steel Company and many other multinational companies. Each year, there are products worth $40 million are exported to 78 countries worldwide...
Now for the company continuously developing, we are looking for an agent with the high quality products, perfect mechanism, competitive price and good platform. We will provide the agent for perfect training and support, including technical service and target market analysis.
