| Price: | US $ 100-260/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | PTS500A |
|---|---|
| Color: | Yellow, Orange, Red or Customized |
| Material: | Metal+Polyurethane |
| Package Size: | 1000*510*310 |
| Apply For: | Warehouse |
| Type: | Scissor Hydraulic Lift |
| Usage: | Higher Level |
| Application: | Warehouse Crane |
| Carrying Capacity: | Weight Level |
| Driven Type: | Hydraulic |
| Running Mode: | Moving |
| Feature: | Insulating |

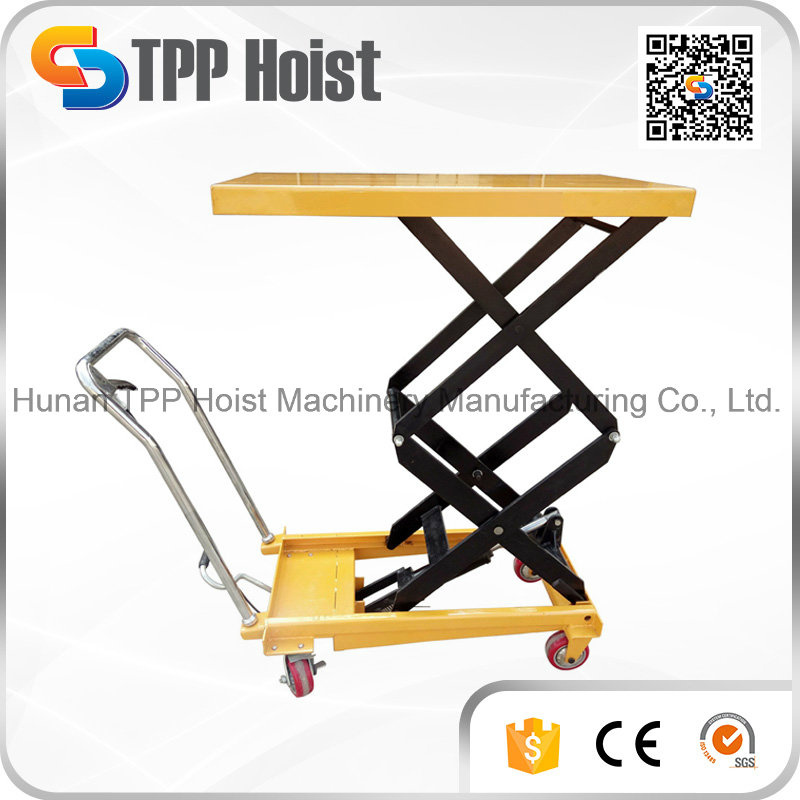

Features of 500kg Hand Manual Trolley Hydraulic Mechanical Double Scissor Lift Table PTS500A Wholesale
This mini scissor lift table lifts and lowers heavy cargo for easy loading and unloading.
Welded all-steel frame with powder-coat finish for maximum durability and protection.
Dual-Cylinder design provide safety lifting.
Chromed handle frame is both attractive and durable.
Convenient foot pump for easy lifting and lowering.

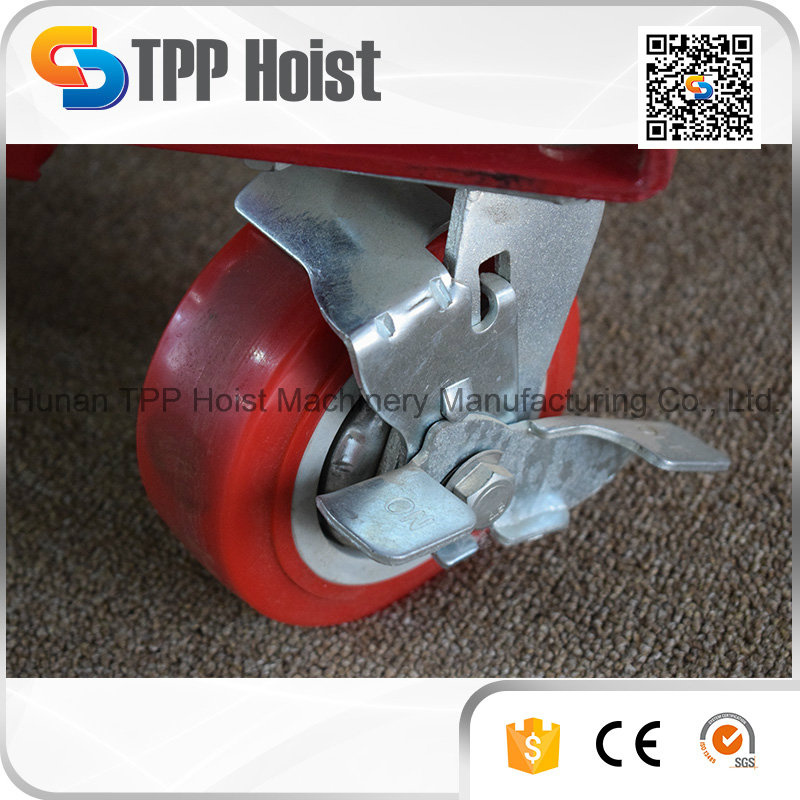

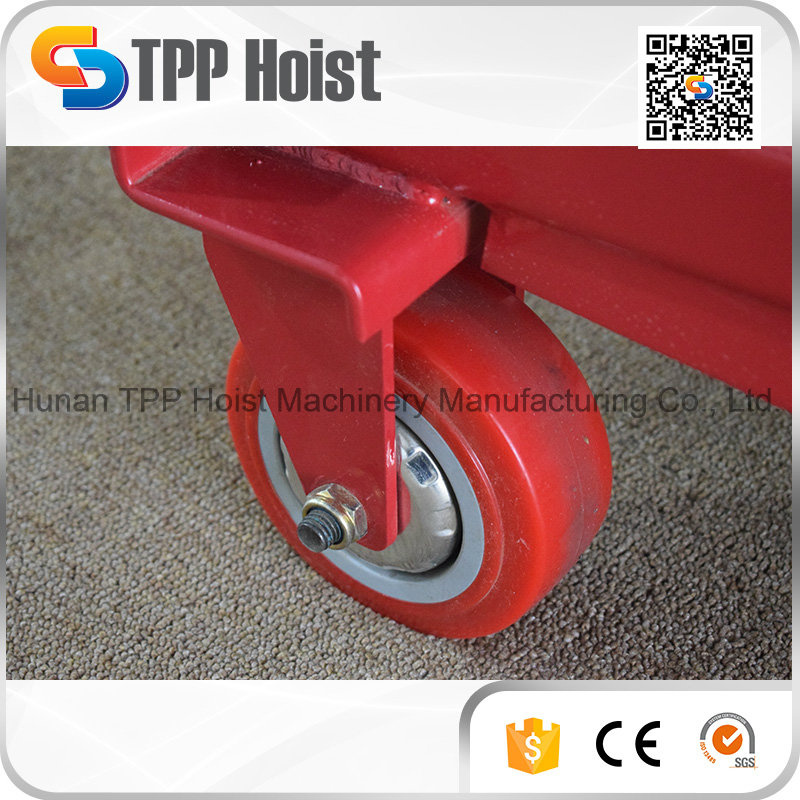

Moves easily on 4-polyurethane casters, 2 swivel with brakes and 2 rigid.
Safety Instruction.
Double scissor lift provides additional lifting height .
AC or DC Models are available.
Specifications of 500kg Hand Manual Trolley Hydraulic Mechanical Double Scissor Lift Table PTS500A Wholesale
| Model | PTD350A | PTD500A | PTS300A | PTS500A |
| Load Capacity(kg) | 350 | 500 | 300 | 500 |
| Min Height(mm) | 280 | 280 | 350 | 300 |
| Max Height(mm) | 900 | 900 | 1300 | 1300 |
| Table Size(mm) | 815*500*50 | 815*500*50 | 915*500*50 | 915*500*50 |
| Wheel Diameter(mm) | 125 | 125 | 125 | 125 |
| Handle Height(mm) | 960 | 960 | 960 | 960 |
| Overall Length(mm) | 880 | 880 | 980 | 980 |
| Overall Weight(kg) | 74 | 80 | 105 | 110 |
| Package Size(mm) | 900*510*310 | 900*510*310 | 1000*510*310 | 1000*510*310 |
Advantages of 500kg Hand Manual Trolley Hydraulic Mechanical Double Scissor Lift Table PTS500A Wholesale
Excellent hydraulic pump unit for low maintenance.
Heavy duty steel construction with epoxy powder coated finish to give greaterant-corrosion resistance.
Heavy duty lift table with150~350Kg capacity.
Polyurethane wheels fitted as standard complete with break.
Ideal for lifting and transporting a variety of goods.
Other table top sizes available to order Spare parts available From stock.
Certifications
Packing and shipping
Packing: Wooden pallet.
Shipping: By air/sea/express, Tianjin port/Shanghai port/Guangzhou port.
Delivery time: 2-8 working days after payment confirmed.
FAQ
1.The Mini Order?
One set accepted.
2.About sample?
Sample available any time. OEM samples accepted.
3.About payment terms?
TT & L/C.
4.How long does it take to receive my order?
About 2-8 working days after payment confirmed.
