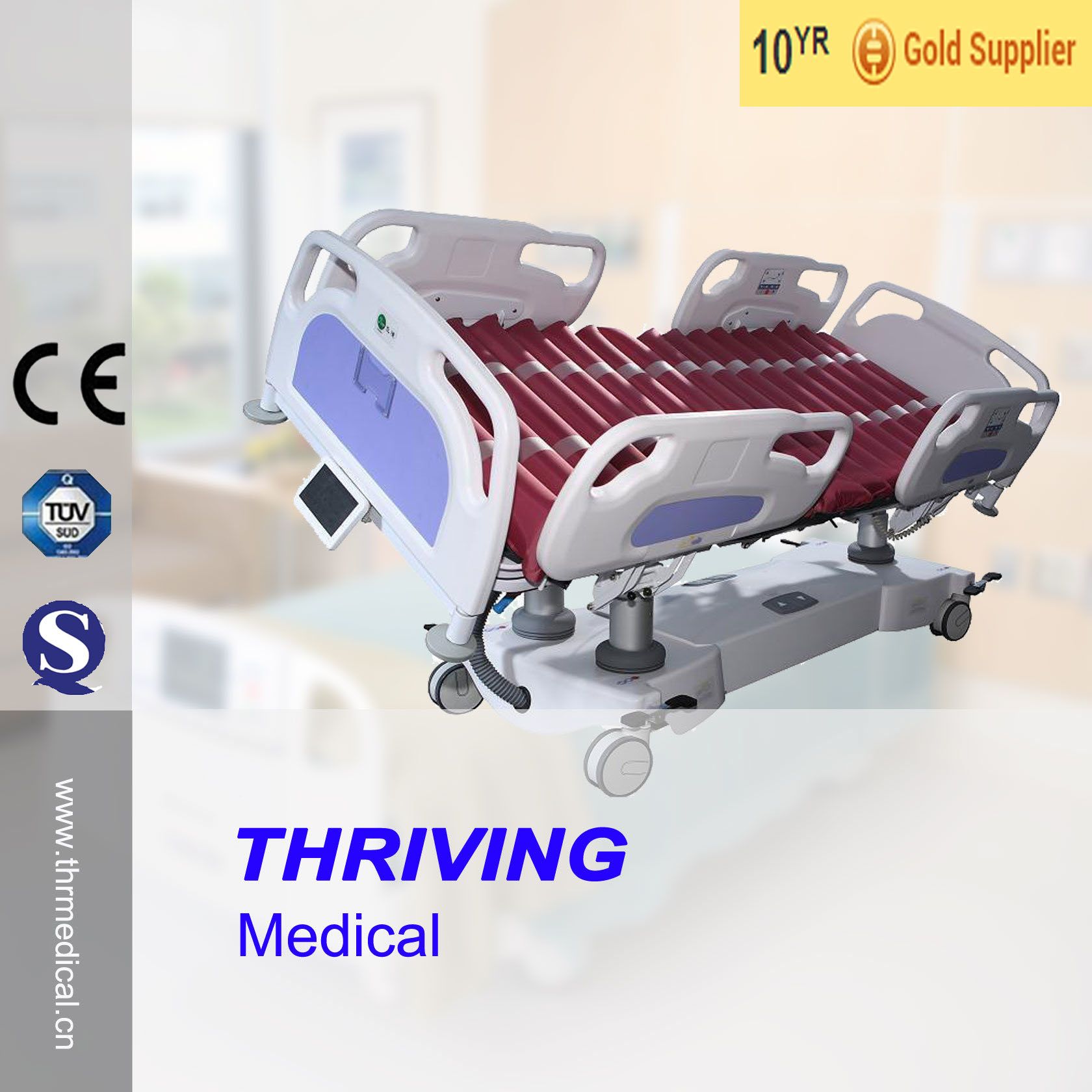

5-Function Hospital ICU Bed (THR-IC-11)

Prod Model:	THR-IC-11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bed:	5-Function Hospital ICU Bed
Material:	Metal
Type Of Hospital Bed:	Manual Bed
Folded:	Unfolded
Using Ambient:	Hospital

Product Description

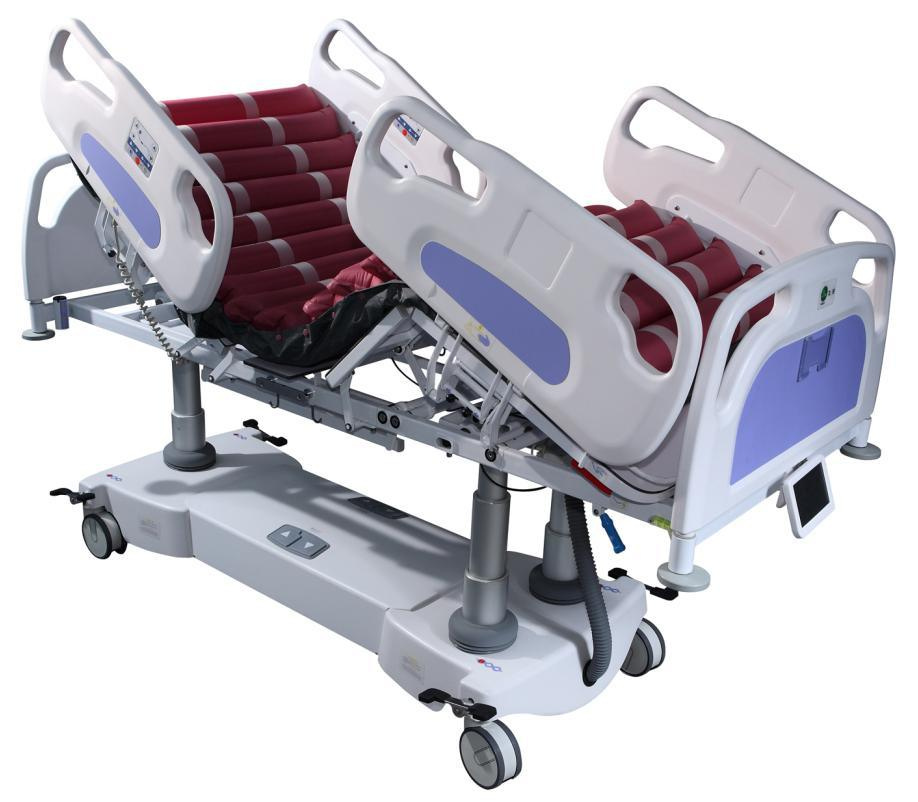

THR-IC-11 is widely used for patients diagnosis, critical care and recovery. With excellent multifunction and satisfactory appearance, this bed has pallet position adjustment lateral tilt function. It can be connected with wireless monitoring system which can control the bed and monitor the beds condition. The bed greatly reduces the work strength of caregivers and improves the nursing quality to patients.

Multi-bed position:

Droved by the actuator of German Dewert, the bed can change the height of the pallet, inclination angle of backrest segment and thigh rest segment, and angle of longitudinal and lateral tilt. Mean while this has one-key preprogrammed CPR position, cardiac-chair, Fowler position, and shock position. It meets all the requirements from caregivers and patients.

Lateral tilt function:

It can effectively prevent pressure ulcers and resolve the problem of regularly turning over the patients with pulmonary infection. It also provide better drainage after operation. Special mattress (personal shape) and belts for lateral tilt are available.

X-ray examination:

X-ray translucent material of the pallet and X-cassette tray behind backrest segment make it easily to take X-ray picture of upper body without moving patient. Optional X-cassette tray below the pallet allows C arm to exam whole body.

Advanced operation and clear LCD display:

This has three controllers, touch screen(6 inch), siderail controllers and foot controllers.

The main controller, touch screen can show medical record(should be with CCM system). Lockable Siderail controllers in both side of the backrest segment are available for patients in any positions. Foot controllers provide caregivers with simple operation of the bed while hands are not free.

Humanized Dual-Regress function:

When adjusting the backrest and thighrest segment, they simultaneously and smoothly slide apart. This effective design prevents the formation of pressure ulcers and avoids the wound split.

Technology characteristic:

1 Angle of lateral tilt: 30

2 Pre-programed positions: Cadiac-chair, Fowler position, shock position, CPR position, 3examination position.

3 Patient surface is made of HPL which is X-ray translucent and water-resistant.
Manual and electric CPR

4 2 operating system: 6inch touch screen, siderail controllers.
5 Dual-Regress function
6 X-ray tray behind backrest segment for upper body examination, and below the pallet for whole body examination.

Humanized functions:

1 With high volume battery, 50 basic operates available while power cut.

2 Adopting 150mm German TENTE medical castors and central brake system, the bed can bed moved smoothly in any direction or in a straight direction or be braked.

3 200mm bed pallet extension.
4 Removable head and foot board
5 Side rails can be folded under the pallet.
6 Each side of the pallet has 2 drainage hooks and holes in corners of the bed for drip bottle holder.
7 Bumpers in 4 corners of the bed
8 Fifth castor makes it easy for the bed to turning around and entering and exiting lift.
9 The level of water proof is IPX4.

Parameters:

Patient surface: 2100mm× 840mm
Angle of backrest segment inclination: 75°
Angle of thighrest segment inclination: 45°
Angle of Trendlenburg inclination: 17°
Backrest segment Regress: 12cm
Bed extension: 200mm
Caster diameter: 150mm
Height 490mm to 890 mm
Thighrest Regress: 90mm
Angle of Anti-Trendlenburg inclination: 17 deg;
Lateral tilt: 30 deg;
Maxnum load: 230kg
