| Prod Model: |
TN-007 |
| Color: |
Ral7035, Ral9004, etc |
| Logo: |
Silk Print, Aluminum Sticker, Rubber Sticker |
| Packing Style: |
Assembled or Dis-Assembled |
| Shipping: |
Sea, Air, Train, Truck |
| Material: |
SPCC Cold Rolled Steel |
| Certificate: |
Ce. RoHS. SGS |
| Type: |
Network Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Wall-Mounted Cabinet |
| Certification: |
RoHS |
| Condition: |
Used |
| Fan Number: |
1 or 2 |
| Capacity: |
From 4u to 22u |
Product Description

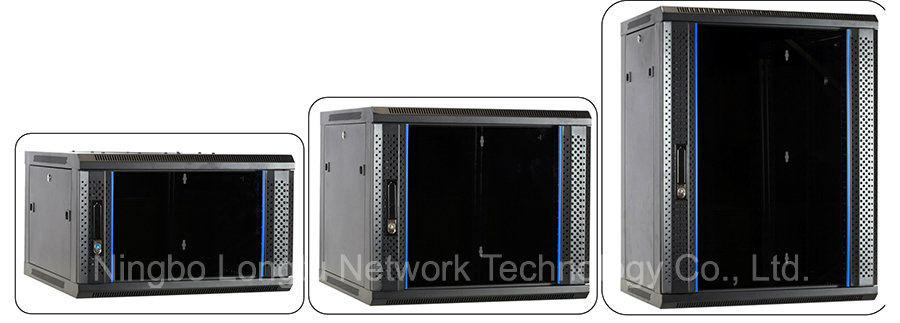

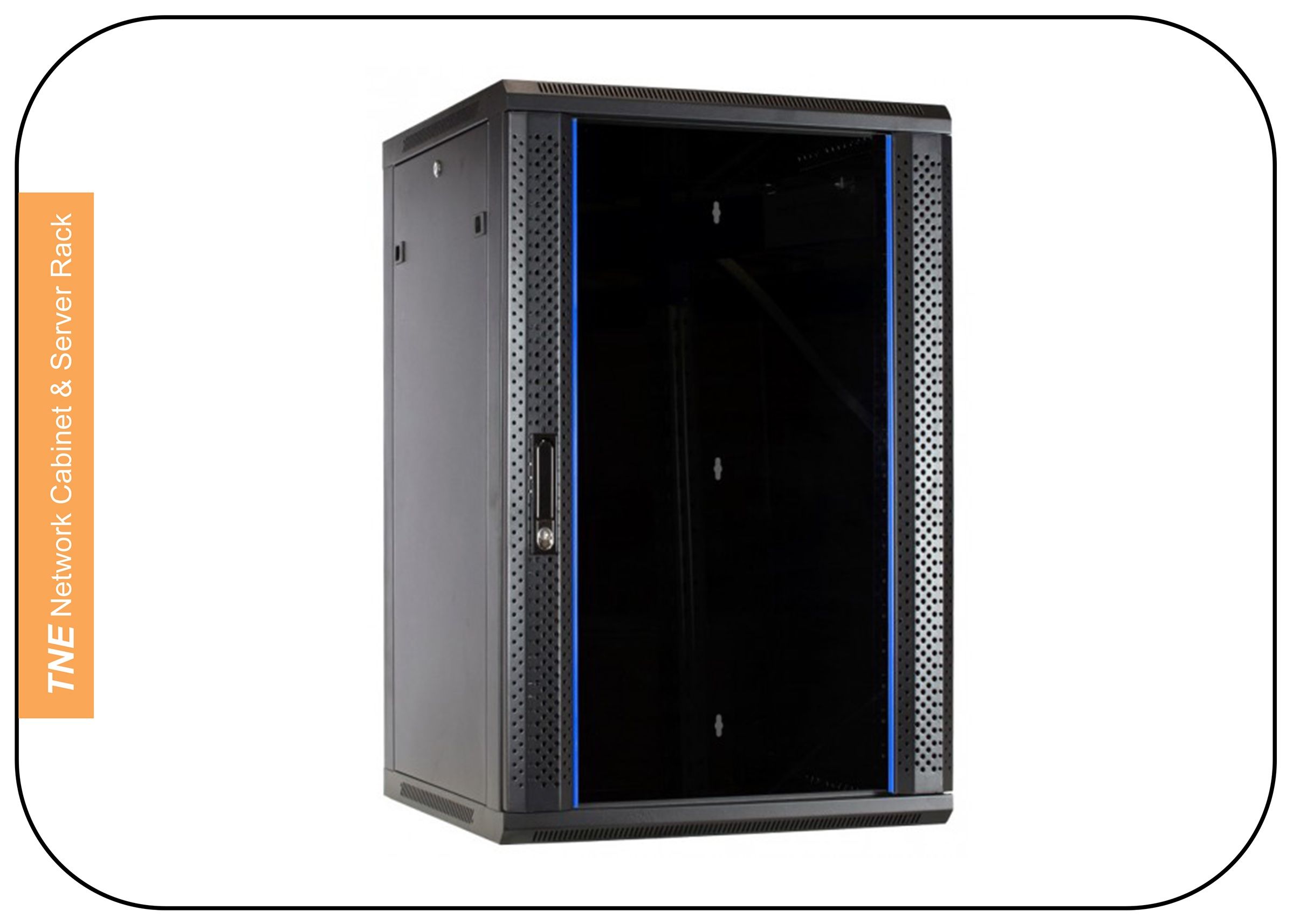

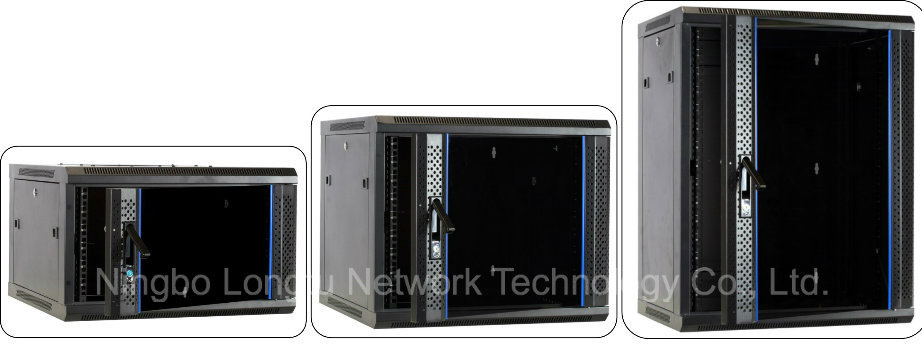

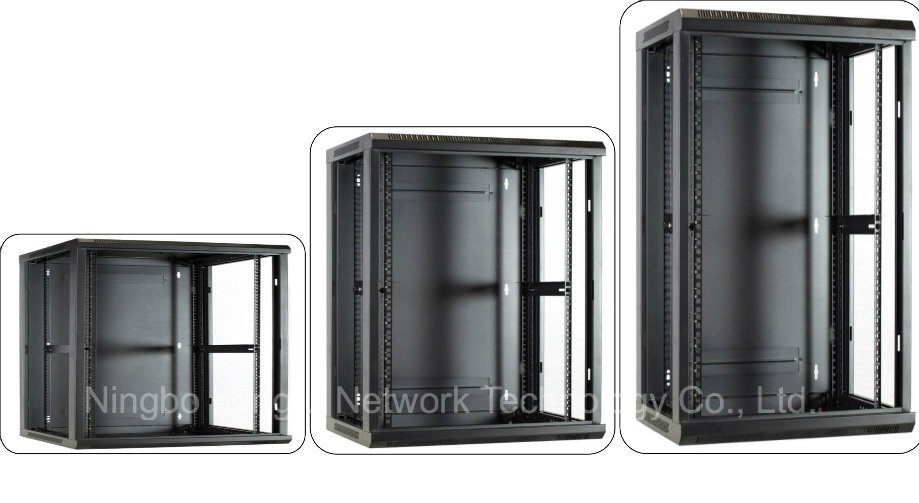

4U 6U 9U 12U Wall Mount Network Cabinet
Description> One / Single Section Wall Mount Cabinet
> Top with Fan hole and covered by steel plate.
> with one set "L" shape Bar
> Side door with Lock
> Can be Disassembled, Flat Packing, Save the Shipping Cost.
> Standing or wall mounting installation
> Adjustable feet and heavy duty castors are optionalFeatures> Easy mounting installation
> Removable side panels, side locks optional
> Cable entry on both of top cover and bottom panel
> 120mm fan available (220V or 110V)
> Turning angle of front door is over 180 degrees.
Standard
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard
Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 1.50mm others: 1.2mm
Loading Capacity:
Static Loading: 60kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Degree of Protection:
IP20
Body Color:
RAL7035, RAL9004 etc.
Optional Accessory> Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
> 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
> 1U, 2U support board
> Vertical Cable manager
> 19'' Power distribution unit(PDU)
> 19'' Blanking plate 1U, 2U, 4U
> Heavy duty castor, Heavy duty castor with breaker
> Optional lock for side panels
> Earth kit
And so on...Size Form| MODEL NO. | CAPACITY | WIDTH(MM) | DEPTH(MM) |
|
| TN-007-6406 | 6U | 600 | 450 |
| TN-007-6606 | 600 | 600 |
| TN-007-6409 | 9U | 600 | 450 |
| TN-007-6609 | 600 | 600 |
| TN-007-6412 | 12U | 600 | 450 |
| TN-007-6612 | 600 | 600 |
| TN-007-6415 | 15U | 600 | 450 |
| TN-007-6615 | 600 | 600 |
| TN-007-6418 | 18U | 600 | 450 |
| TN-007-6618 | 600 | 600 |
| TN-007-6422 | 22U | 600 | 450 |
| TN-007-6622 | 600 | 600 |
| TN-007-6427 | 27U | 800 | 450 |
| TN-007-6627 | 800 | 600 |
