| Prod Model: |
TN-002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Ral7035, Ral9004, etc |
| Logo: |
Silk Print, Aluminum Sticker, Rubber Sticker |
| Packing Style: |
Assembled or Dis-Assembled |
| Shipping: |
Sea, Air, Train, Truck |
| Material: |
SPCC Cold Rolled Steel |
| Certificate: |
CE. RoHS. SGS |
| 800mm Width: |
with 2 Vertical Cable Management |
| Type: |
Network Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Vertical |
| Certification: |
RoHS |
| Condition: |
Used |
| Fan Number: |
2 or 4 or 6 PCS |
| Capacity: |
12u ~ 47u |
Product Description

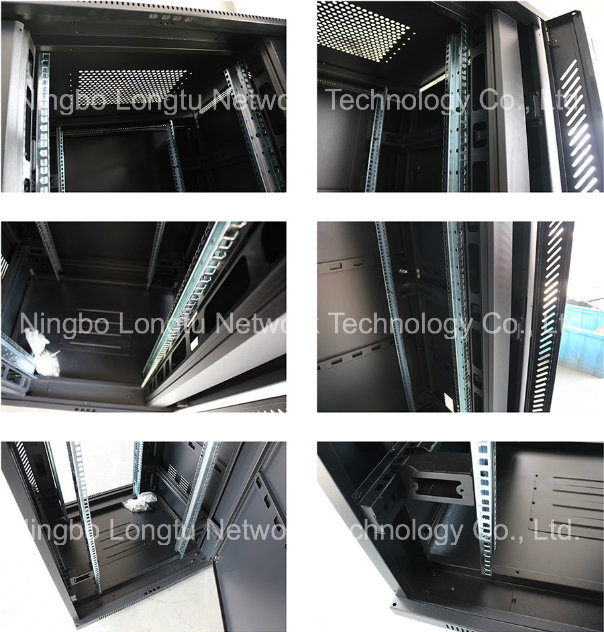

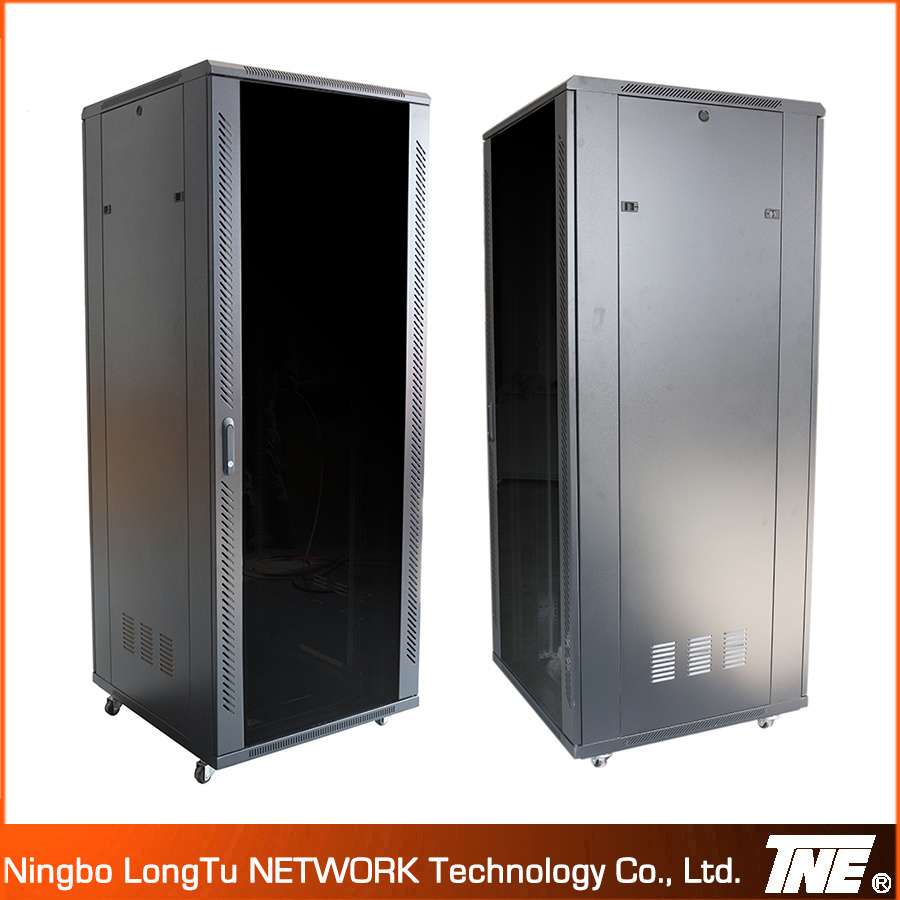

TN-002 Network Cabinet with Front Temper Glass Door
Description
> Front Temper Glass Door (Glass Thickness 5.0mm)
> Rear Flat Metal Door ( Perforated Door Optional)
> Top with ventilation Holes and Cable Entry holes.
> 4 PCS Galvnized (Zinc-Painting) Mounting Elements (Rail Mounts) 2.0mm
> Bottom with Castors (2 with Breaker) and 4 Adjustable feet
> 800mm width Cabinet with 2 pcs Vertical Management for Cables
Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard
Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 2.00mm others: 1.2--1.5mm
Loading Capacity:
Static Loading: 800kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Degree of Protection:
IP20
Body Color:
RAL7035, RAL9004 etc.
Optional Accessory
> Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
> 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
> 1U, 2U support board.
> Vertical Cable manager
> 19'' Power distribution unit(PDU)
> 19'' Blanking plate 1U, 2U, 4U
> Heavy duty castor, Heavy duty castor with braker
> Optional lock for side panels
> Earth kit
> And so on...
Size Form | Model No. | Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
TN-002
| 18U | 600mm/800mm | 600mm/800mm/1000mm | 988mm |
TN-002
| 22U | 600mm/800mm | 600mm/800mm/1000mm | 1166mm |
TN-002
| 27U | 600mm/800mm | 600mm/800mm/1000mm | 1388mm |
TN-002
| 32U | 600mm/800mm | 600mm/800mm/1000mm | 1610mm |
TN-002
| 37U | 600mm/800mm | 600mm/800mm/1000mm | 1833mm |
TN-002
| 42U | 600mm/800mm | 600mm/800mm/1000mm | 2055mm |
TN-002
| 45U | 600mm/800mm | 600mm/800mm/1000mm | 2188mm |
TN-002
| 47U | 600mm/800mm | 600mm/800mm/1000mm |
2277mm
|

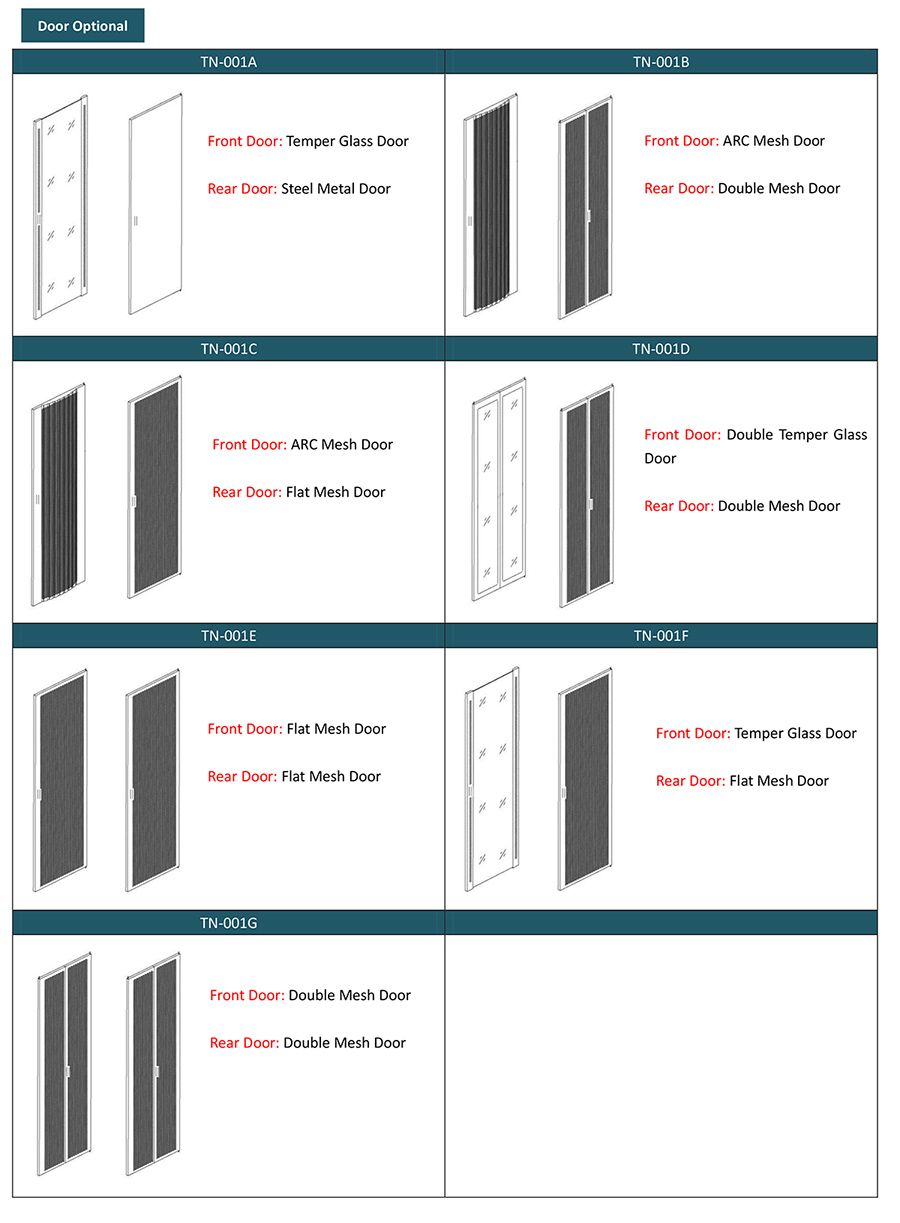

Optional Doors
FAQ
1) What is your Payment term?
---TNE accept T/T, L/C, Western Union.
2) What is your Trade term?
---TNE do EXW, FOB, CNF, CIF terms.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
