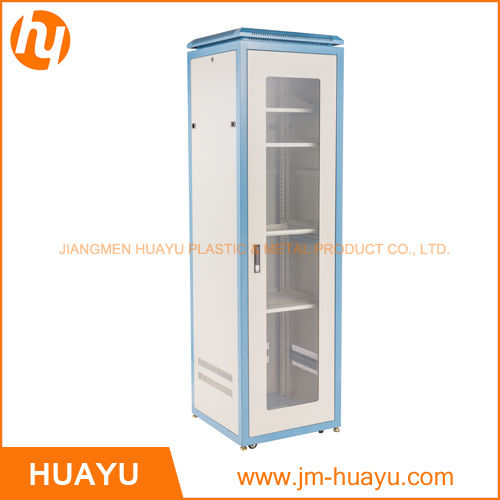

Name: 42u 800*800*2000mm Network Rack, Rack Mount Cabinet, Metal Cabinet
Brand: thisfurniture.com
SKU: 780294645
Availability: InStock
Rating: 4.3 (49 reviews)

Price:	US $ 30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	300/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HJB-8842A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	800 X 800 X 2000 mm
Static Load:	500 Kgs
Suitable Standard:	IEC197-2, Ein4194
Type:	Server Cabinet
Usage:	Network Integration System
Installation:	Vertical
Fan Number:	Two
Certification:	ISO
Condition:	New
Capacity:	42u

Product Description

42u 800*800*2000mm Network Rack, Rack Mount Cabinet,Metal Cabinet

Product pictures:

Feature:

Exquisite design with precise craftsmanship;

Welded steel frame for front and back part, which can be flat packing, easy to transfer;

Arc shapedented vented front door with hexagonal holes,can turn over 180 turning degree:

Vented rear door with hexagonal holes;

Removable side panel wit latch, easy to install(optional lock);

Adjustable feet and castors are available simultaneously:

Cable entry on the top, adjustable cable entrance at the bottom with panel:

Advanced handle locks for front door, optional other lock;

S-shaped mounting profile, free to move forward and back;

Efficient baying kit of cabinet, earthing kit:

Optional plinth to fix cabinet on floor; under base cable entry:

Various optional Accessories for common using:

Unassembled packing, about 2/5 of original volume, save container space

Standard:

Comply with IEC197-2, EIN4194 Standard;

Loading Capacity:

500 Kgs;

PRODUCT DETAILS:

Product name :	Network cabinet
(1) Model No.:	HJB-8842A
(2) Size :	8008002000MM
(3) Capacity :	42 U
(4) Brand name :	Huayu
(5) Cabinet standard :	19'' inch inner installation
(6) Material :	High quality SPCC cold rolled steel T:1.0-1.2mm
(7) Place of origin :	Guangdong China (mainland)
(8) Color :	Black, White or Gray (Special Color on Request)
(9) Packing :	Flat ,packing or assembled packing
(10) Loading capacity:	500KG
(11) Thickness :	1.0-1.5mm
(12) Installation :	19'' inch inner installation
(13) Surface finish :	Degreasing,pickling,phoshating,phoshating, powder coating
(14) Delivery details:	6 working days
(15) Packing:	(a) Film around the spareparts
	(b) EPE corner protectors in the four corners of carton
	(c) High quality cartons with strip .
