Prod Model: |
JK10438 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Rated Loading Capacity: |
4000kg |
Min.Lifting Height: |
400mm |
Max.Lifting Height: |
2050mm |
Lifting Time: |
55-65s |
Weight: |
520kg |
Work Platform Size: |
1700*1200mm |
Model No.: |
Jk10438 |
Power: |
.AC.2.2kw |
Voltage: |
380V/50Hz |
Color: |
Red / Yellow /Forklift Truck Can Be Customersed |
Application: |
Building Crane |
Carrying Capacity: |
Weight Level |
Driven Type: |
AC |
Running Mode: |
Stationary |
Feature: |
Insulating |
Product Description

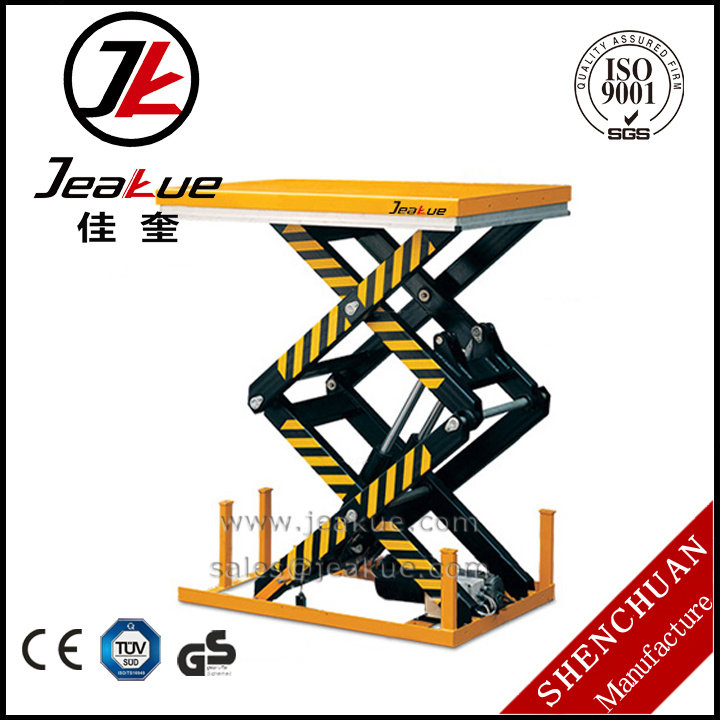

4000kg two scissors electric Lift Table
Model | | JK10436 | JK10437 | JK10438 |
Rated Loading Capacity | kg | 1000 | 2000 | 4000 |
Min.Lifting Height | mm | 305 | 360 | 400 |
Max.Lifting Height | mm | 1780 | 1780 | 2050 |
(L*W) Platform Size(L*W) | mm | 1300*820 | 1300*850 | 1700*1200 |
(L*W) Base Size(L*W) | mm | 1240*640 | 1220*785 | 1600*900 |
Lifting time | s | 35-45 | 35-45 | 55-65 |
Power Components | | 380V/50HZ.AC.1.1KW | 380V/50HZ.AC.1.5KW | 380V/50HZ.AC.2.2KW |
Net Weight | kg | 210 | 295 | 520 |
1.Product Details :
2.Company information:
Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd. was established in May 2003 in Shanghai. Over the past 10 years, we have been always adhering to the idea of "all service to meet customers' needs", breaking
through technology, manufacturing the finest products, improving service with our globalization vision.
We have developed a variety of international advanced products joint with world-renowned industrial equipment manufacturers, such as: ABB, ZF, BOSCH, CAT, TEREX, and a variety of sophisticated
products with independent intellectual property patents together with well-known Chinese universities in the area of
machinery, electronics, physical mechanics etc.
3.Quality Certification:
CE,CQC,ISO9001,UL
4.Packing details
International Standard Packaging/ Three Wheels Driving Forklift
5.After-sales Service Provided
Engineers available to service machinery overseas
6.Delivery Details
Within 7 Days
7.Products Instruction:
Dynamical System :
The maturely disposed,powerful but economical Xinchai490,495,498BPG diesel engine and
WF491GP gasoline engine meet the demand for noise and discharge.C240,4TNE92,4TNV94L,4TNE98 diesel and
K21,K25,4G64 gasoline engine are for option. As for the transmission,with TCM technology ,function is reliable./
Counterbalanced Diesel Forklift
Hydraulic System:
1.Hydraulic System rationally adopts supple and stiff tubes to reduce pressure loss,accelerating the lift of mast. Hydraulic
units employ the seal units imported from Japan and passing thousand of tests.
2.Heat Dissipation System:
3.Newly adopted advanced radiator improves the radiator cooling performance greatly .Advanced heat dissipation
technology improves heat dissipation channel,which enhances the truck heat dissipation capability further./ Counterbalanced
Diesel Forklift
Electrical System:
Electric system adopts advanced wiring harness,waterproof parts and widespread multirun use to improve the circuits
security and stability.Without tool,the circuit integration can be maintained just by hand.
Comfort:
H series adopts advanced man-machine engineering design,including the engine collocated with floating shock-mitigating device ,the elastic linked steering axle,the redirector providing low tensional moment,the semi-floating bonnet with
built-in heat and sound insulation,and built-in cylinder design.All of those ensure the comfort of driving for this diesel forklit.
Clean:
The domestic engines all meet EPA emission control regulation.The imported engines come up to EU stage-3 emission
control regulation,and obtain EPA accreditation.
Efficiency:
Based on the safe principle,the high lifting speed of the mast improves working efficiency .Turing radius and width of right
angle stacking aisle are decreased through reducing the dimension of the whole truck,which raise the efficiency of storehouse,
and enable the truck to operate in limited space.
Safe:
A throttling device is set in pipe system,so the mast won't result in failing to control even some pipes broke. By using wide
vision design, the scope of the operator's vision has been greatly improved ,so as to make the operation faster and safer.
