| Price: | US $ 12000-14000UNIT |
|---|---|
| Min Order: | 2UNIT |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | FZCZ9600TJZHJ |
|---|---|
| Axle: | Fuwa / BPW |
| Suspension: | Leaf Spring Suspension |
| Kingpin: | Jost 2" or 3.5" |
| Langing Gear: | Jost |
| Twist Lock: | 12 |
| Tire: | 12.00r20 |
| Valve: | Webco |
| Color: | Customized |
| Payload: | 40t |
| Warranty: | 12month |
| Independent Suspension Type: | Multi-link Type |
| Type: | Lowbed Trailer |
| Shape: | Lowbed |
| Axle Number: | 3 |
| Tire Number: | 12 |
| Material: | Q345A Material for I-Beam |
TECHNICAL HIGHLIGHTS:
Specifications:
| Item | Unit | Quantity | Notice |
| Overall size | 15000length*3000width*3150height, height will be adjusted according to the tractor | ||
| axle | piece | 4 | 13T FWA |
| tyre | piece | 16 | 11.00R20 |
| rim | piece | 16 | 8.0-20 |
| leaf spring | piece | 8 | 100mm width*10pcs*16mm thickness |
| suspension | set | reinforced type | |
| relay valve | whole vehicle | 1 | WABCO |
| landing gear | pair | 2 | front : JOSTA400, one sides operation rear: JOST 14 inch |
| kingpin | piece | 1 | JOST90# bolted type |
| tie-in | piece | 2 | haldex |
| chamber | piece | 8 | stored chamber T30/30 |
| twist lock | piece | 12 | can load 1*40'' container |
| floor | 6.0MM checkered type | ||
| upper and lower wing plates | 20/25mm,using the highly quality Q345 steel, | ||
| main beam | 600mm,webplate:14mm using the highly quality Q345 steel | ||
| side beam | 294Height H Steel Section | ||
| cross beam | 12# channel steel | ||
| ramp | width: 800mm, double spring reinforced type, length depends on the drawing | ||
| reflectors | Red triangle reflectors at the rear of the trailer and on side | ||
| tool box | 1 | standard | |
| spare tyre carrier | 2 | according to our design | |
| color | according to your required RAL color code |

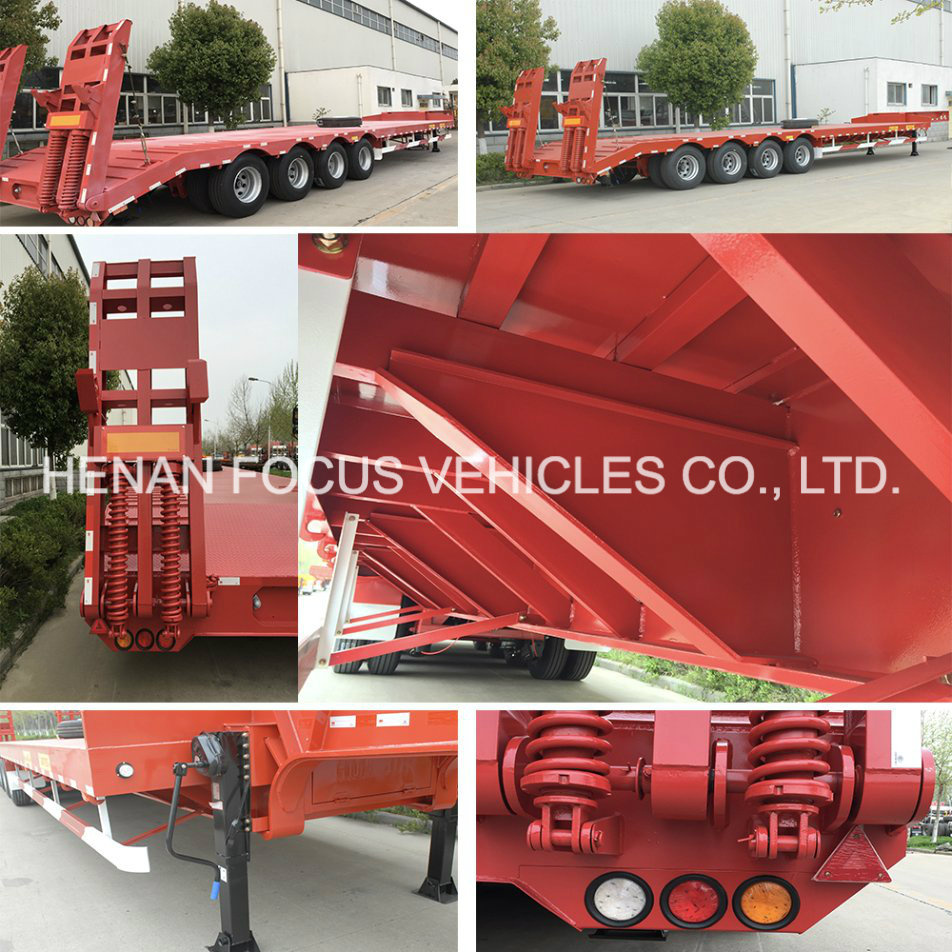

Details of the lowbed trailer for your reference
Customized:
1-Lowbed trailers for excavators or other construction equipments transport
2- The loading surface can be customized
3- The thickness of the loading surface can be thicker to load heavy stones or equipments.
4-material of the main beam: Q345
5-Suspension: spring suspension, Rigid, single point, bogie or air suspension
6-Axles number: 2 3 4 axles.
8-Jost landing gear, FUWA axles and Tri-angle tires
9-extendable or sliding type optional, extendable wing for wider width of loading surface
10- Can add 4 twist locks for 20ft container transport also

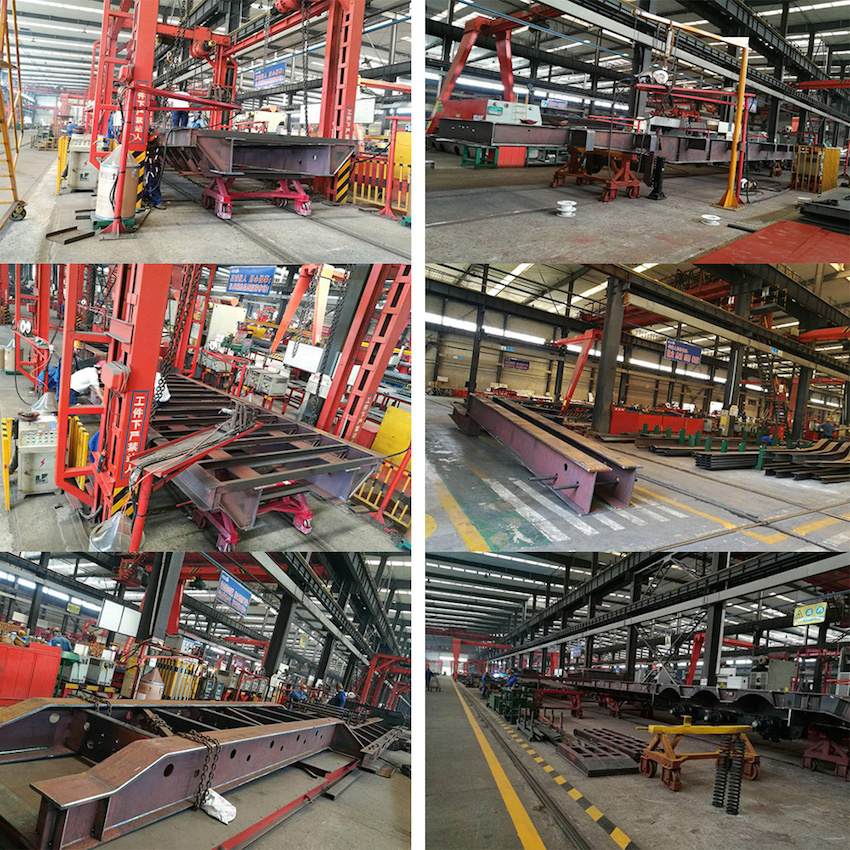

TRAILER MANUFACTURING
Buying Guides
1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news → completing production;
6**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
Why Choose Focus vehicles?
--WHAT ARE OUR ADVANTAGES ?
**Competitive price--We work as the leading dealers of Various leading China TRUCKS and SEMI TRAILERS, and Construction machinery manufactures/factories, and are treated with best dealership prices every year. From comparison and feedbacks from clients, Our price is more competitive than others even manufacturers/ factories.
**Ouick Response--Our team is consisted of a group of dilligent and enterprising people.Working 24/7 to respond client inquires and question all the time. Most problems can be solved within 12 hours.
**Fast Delivery--Normally it will take more than 30 days for manufacturers/factories to produce the ordered machine, while we have a variety of resources, locally and nation widely, to receive machines timely manner.
--WHICH PAYMENT TERMS CAN WE ACCEPT?
Normally we can work on T/T term or L/C term.
**On T/T term, 30% downpayment is required in advance, and 70% balance shall be settled before shipment, or against the copy of origial B/L for old clients.
**On L/C term, a 100% Irrevocable L/C without "soft clauses" can be accepted. Please seek the advice from the individual sales manager whom you work with.
--HOW LONG WILL OUR PRICE BE VALID?
We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year, We only adjust our price based on two situations:
** The rate of USD: RMB varies significantly according to the international currency exchange rates.
** Manufacturers/Factories adjusted the trucks and machinery price, becaue of the increasing labor cost, and raw material cost.
--WHAT LOGISTICS WAYS WE CAN WORK FOR SHIPMENT?
We can ship trucks, trailers and machinery by various transportation tools.
**For 90% of our shipment would go by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe etc. either by container or RoRo /Bulk shipment.
**For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan etc., We can ship trucks trailers, machinery by Road or Railway.
**For light spare parts in urgent demand, we can ship it by international courier service. such as DHL, UPS, TNT, or Fedex.
