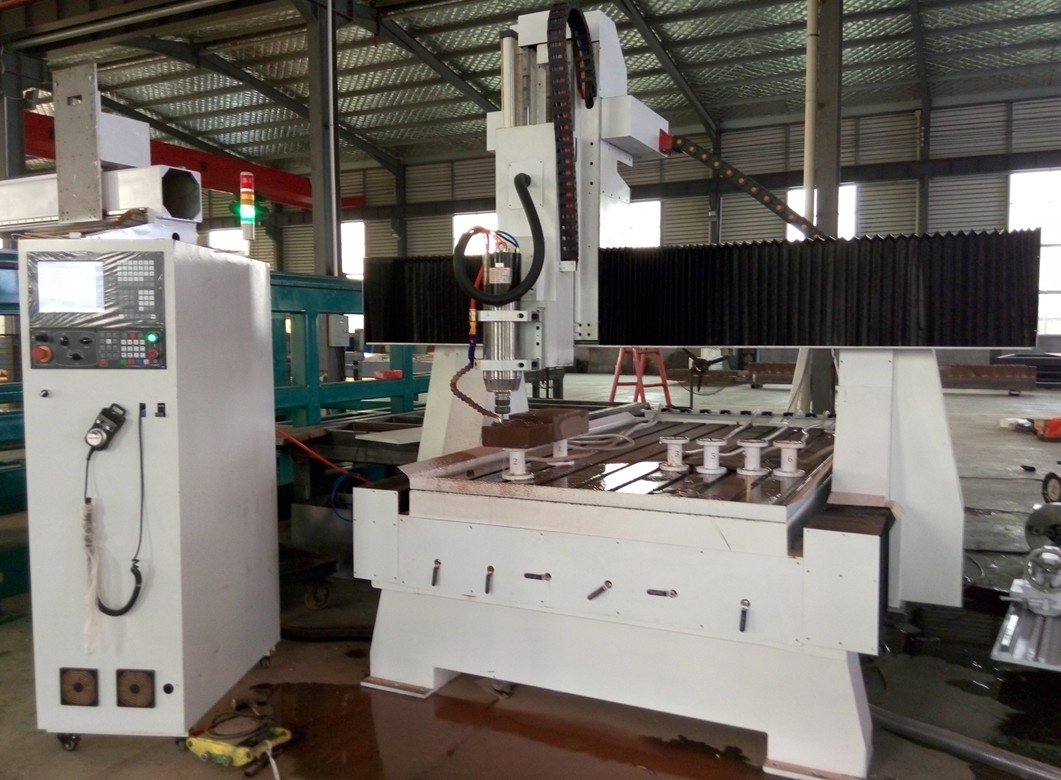

3D CNC Router / Stone CNC Engraving Cutting Machine for Wood, MDF, Aluminum, Stone, Glass

Name: 3D CNC Router / Stone CNC Engraving Cutting Machine for Wood, MDF, Aluminum, Stone, Glass
Brand: thisfurniture.com
SKU: 789708545
Availability: InStock
Rating: 4.3 (123 reviews)

Price:	Negotiable/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JCS1325L
Function:	Line Engraving
Application Material:	Marble
Automation:	Automatic
Control:	CNC
Current:	AC
Application:	Construction etc

Product Description

Reduced price !! 3D CNC router with Saw cutting / Stone engraving cutting machine for wood,MDF,aluminum,stone,glass

For cutting/engraving foam ,plastic,stone,wood,aluminum,Alucbond,ACP,copper,PVC ,glass etc

For making kitchen top / counter top / table top / basin table etc

For making furniture / mould / releif / sculpture / artwork / decoration / craft / mold etc

1.Technical Specifications

Description	Parameters
Model	JCS1325L
X,Y,Z axis working area	13002500300mm
Whole structure	Welded Steel gantry structure
Table surface	Clamp & T-slot & water tank
X,Y,Z structure	Taiwan HIWIN Square linear guide rail
X,Y structure	Rack and pinion transmission,high speed and more stable; Y -double motor drive
Z structure	Imported ball screw, high precision
Max. idling speed	50m/min
Max. working speed	25m/min
Repositioning Accuracy	±0.05mm
X Y Z working Accuracy	< 0.02mm
Spindle	5.5KW ATC water-cooling spindle
Spindle rotating speed	0-24000rpm/min
Tool magazine	Linear ATC system, with 8pcs tool magazine
Diameter of tools	Φ3.175 -Φ20
Collet size	ER 32
Operation language	G code (plt, mmg, uoo, bmp)
Driving system	Japan servo motor and driver
Operating system	Ncstudio control system
Working voltage	AC380V, 3ph, 50-60Hz
Software	UcancamV8 / Type3 / Artcam software (option)

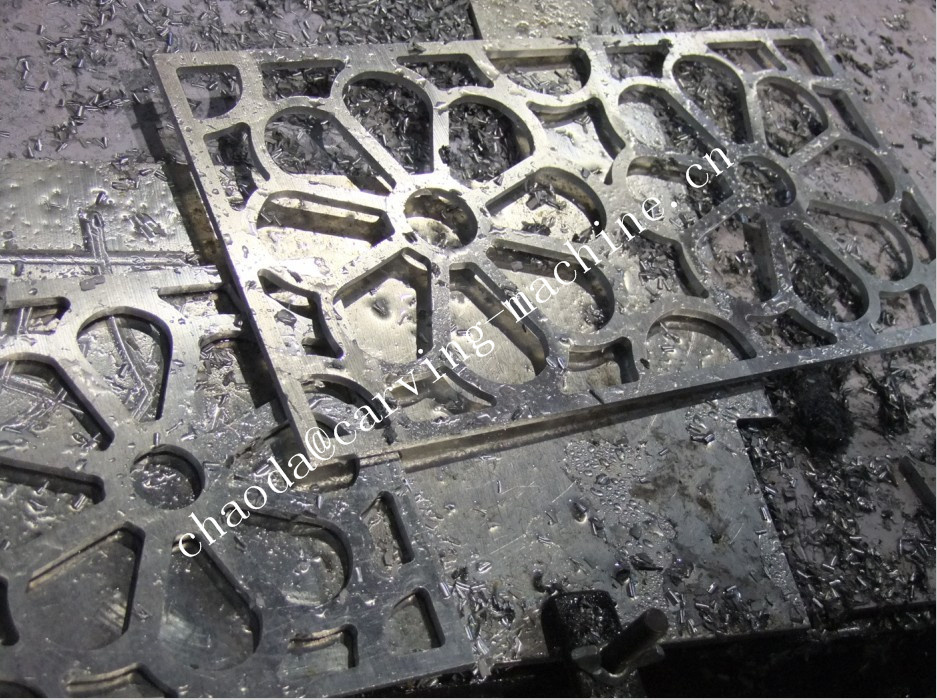

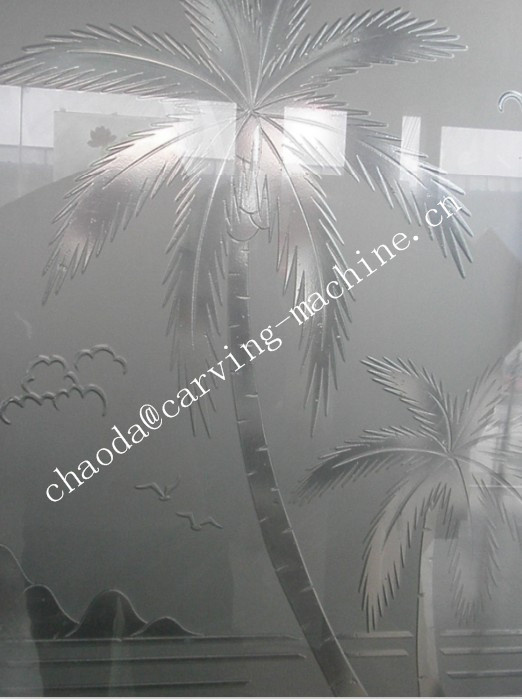

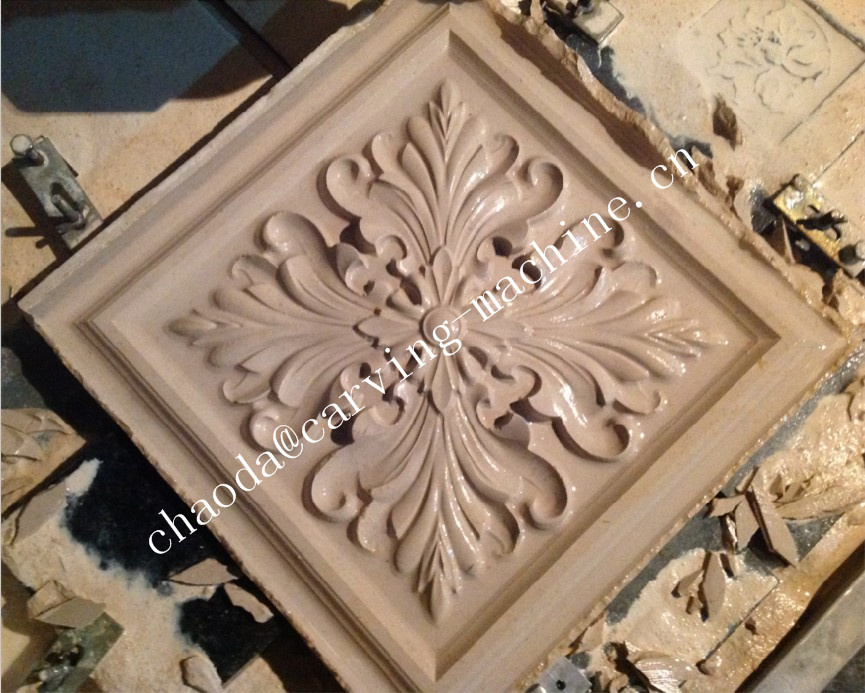

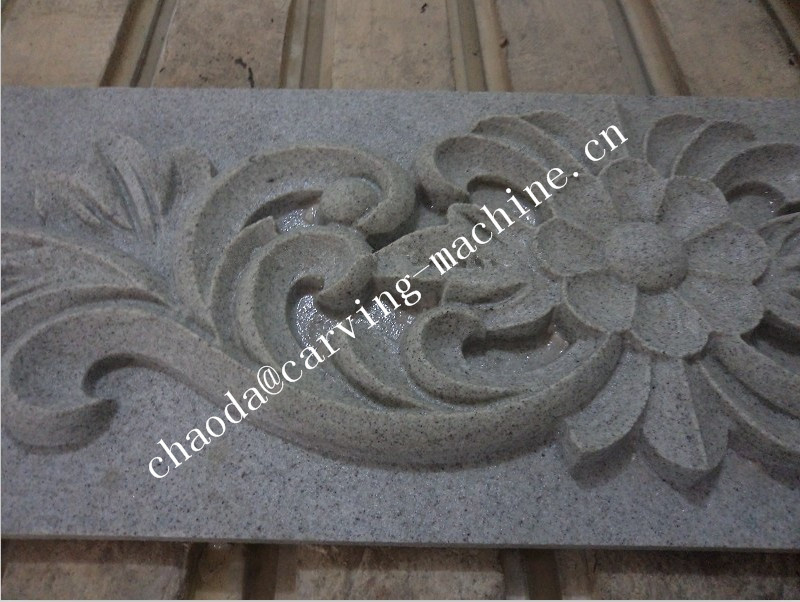

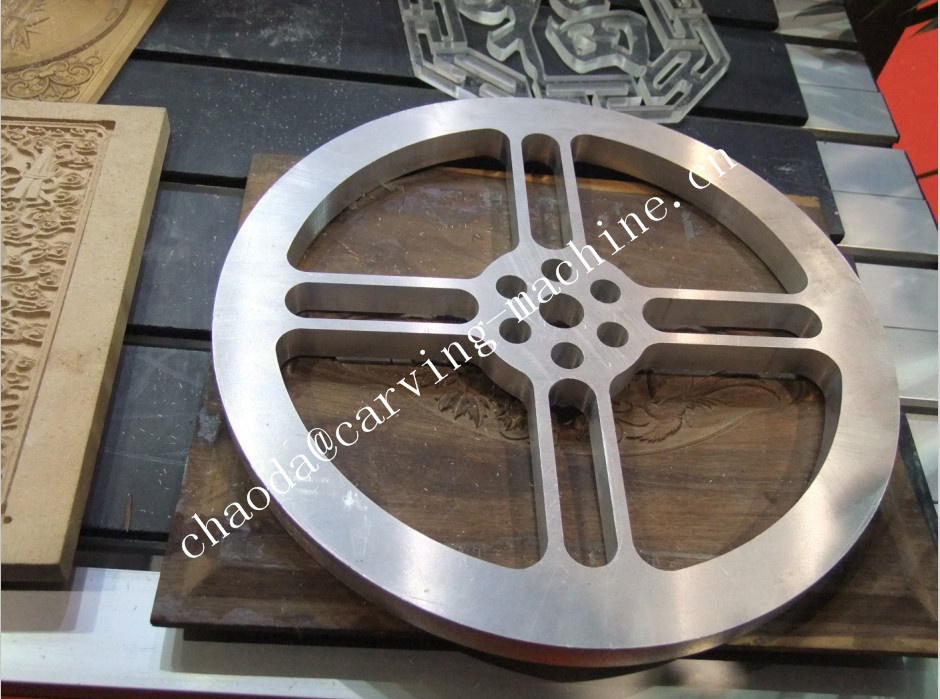

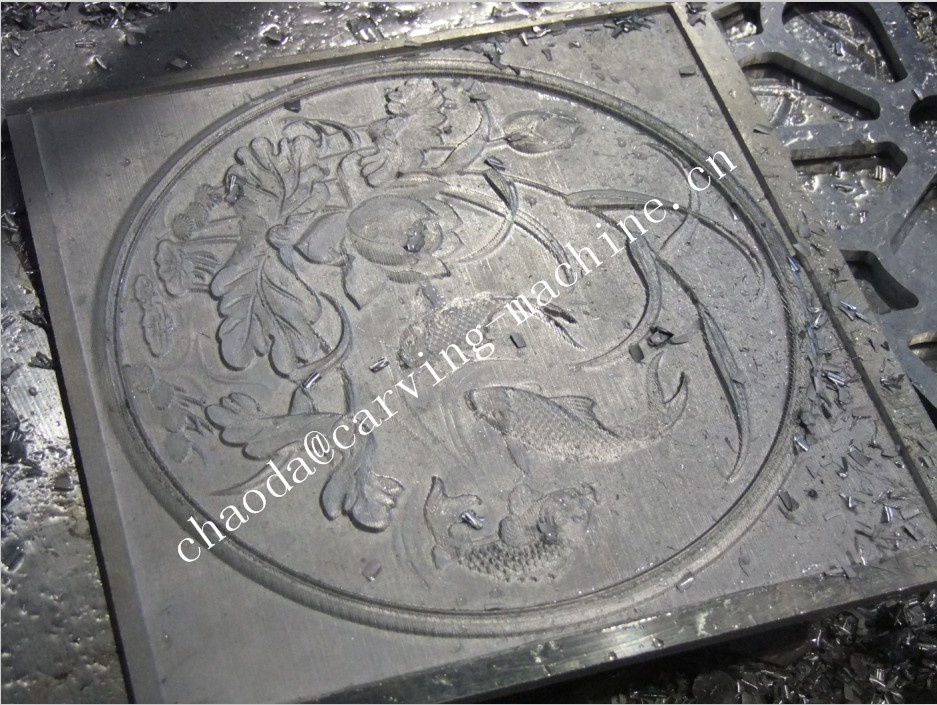

2.Sample photo

A Factory You Can Trust:

Located in Linyi City, Shandong Province, Linyi CHAODA International CNC Technology Co., Ltd is a professional manufacturer of CNC Router Machine, Laser Engraving and Cutting Machine, Plasma Metal Cutting Machine, 3D Scanner, vacuum Forming Machine, etc.

Our factory was established in 2002 and covers 40000 Square meters.

We have experienced and professional engineers who devote themselves to machines' research, development, production, and after- sale service. Our machines have won praise from customers worldwide and with very good reputation in this field.

Quality and Safety:

We have implemented a strict and complete quality control system, which ensures that each machine can meet quality requirements of customers. Besides, all of our machines have been strictly inspected before shipment. Our machines have attained CE certificate with Quality Test report & BV certification.

Your satisfaction, Our eternal pursuit!

Our aim is to help customers realize their goals. We are making great efforts to achieve mutual benefit relationship and sincerely hope to cooperate with you!
