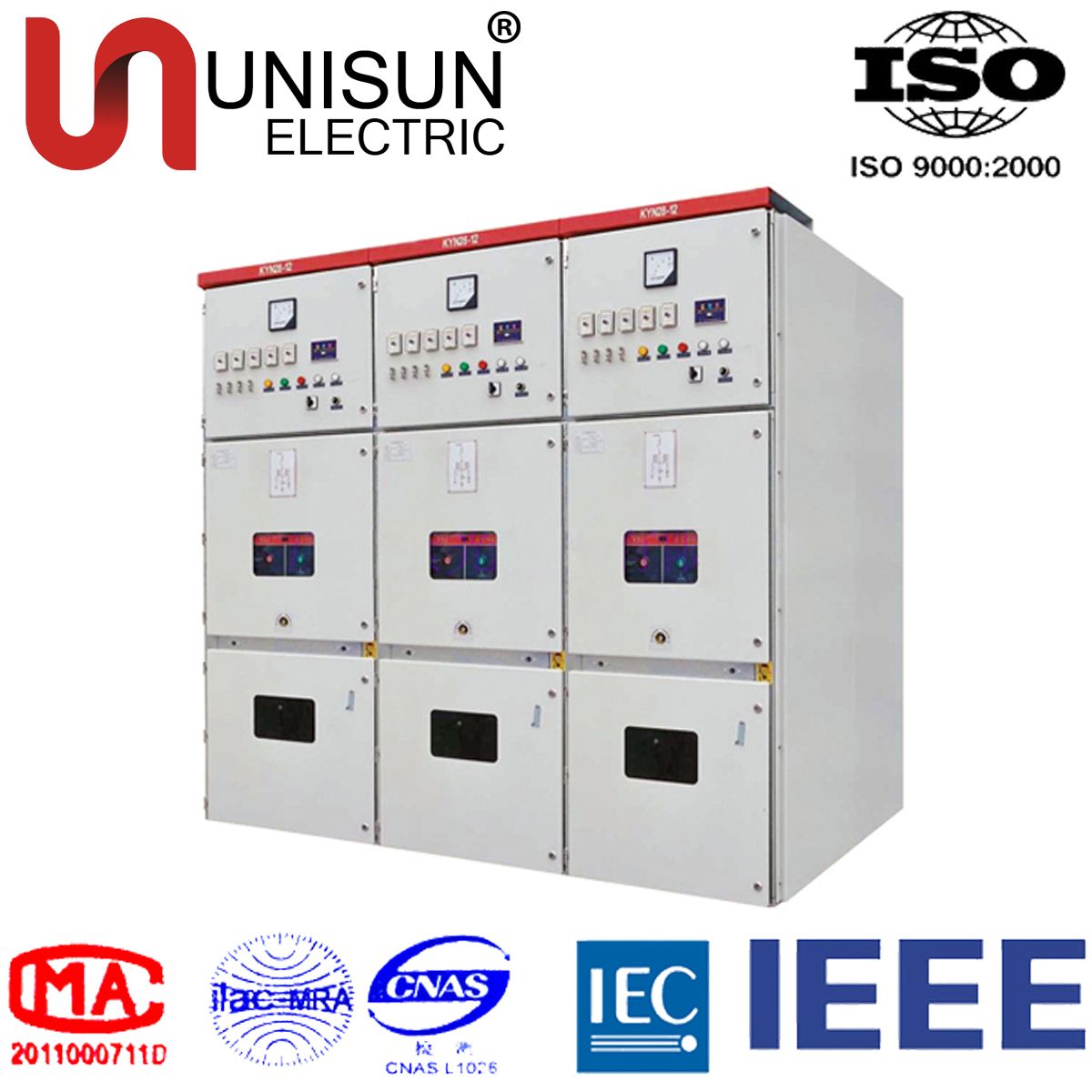

33kv Draw-out Type Air Insulation Metal Enclosed Switch Cabinet
| Price: |
US $ 1000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Product Description
DescriptionThe Unisun enjoy more than 16 year experience manufacture SF6 Ring main Unit in china, we import first APG line from Germany to localized air pressure guage production craft, our APG manufacturing including SF6 switch disconnector, embedded pole and etc epoxy resin insulation parts. iUN-panel units are used for the MV section in MV/LV transformer substations in public distribution systems and MV consumer or distribution substations up to 24 kV. FeatureThe iUN-panel range is made up of modular units containing metal-enclosed SF6 switchgear, using Sulphur hexafluoride (SF6) or vacuum:- switch-disconnector;
- Vacuum circuit breaker;
- Vacuum contactor;
- disconnector.
Unit definitionsBelow is the list of iUN-panel range units used in MV/LV transformer substations and industrial distribution substations:- IM, IMC, IMB switch;
- PM fused switch;
- QM, QMC, QMB fuse-switch combination;
- CRM contactor and contactor with fuses;
- DM1-A, DM1-D, DM1-S single-isolationSF6 type circuit breaker;
- DMV-A, DMV-D, DMV-S single-isolation vacuum type circuit breaker;
- DM1-W, DM1-Z withdraw able single-isolationSF6 type circuit breaker;
- DM2 double-isolation SF6 type circuit breaker;
- CM, CM2 voltage transformers;
- GBC-A, GBC-B current and/or voltage measurements;
StandardsiUN-panel units meet all the following recommendations, standards and specifications:- IEC:60694:
- IEC62271-200
- IEC60265
- IEC60420
- IEC60255
- IEC62271-100
- IEC62271-102
DesignationiUN-panel units are identified by a code including:- an indication of the function, i.e. the electrical diagram code: IM, QM, DM1, CM, DM2, etc.
- the rated current: 400 - 630 - 1250 A;
- the rated voltage: 7.2 - 12 - 17.5 - 24 kV;
- the maximum short-time withstand current values: 12.5 - 16 - 20 - 25 kA.1 s;
- the color is of RAL 9002 type (frosted satin white).
Example for a unit designated: IM 400 - 24 - 12.5- IM indicates an "incoming" or "outgoing" unit;
- 400 indicates the rated current is 400 A;
- 24 indicates the rated voltage is 24 kV;
- 12.5 indicates the short-time withstand current is 12.5 kA.1 s.
The hereunder values are for working temperatures from -5°C up to +40°C and for a setting up at an altitude below 1000 m.Internal arc withstand:- standard:12.5 kA. 0.7 s;
- enhanced:16 kA. 1 s.
Protection index:- units: IP2XC (IP3X consult us);
- between compartments: IP2x.
Electro-magnetic compatibility:- relays: 4 kV withstand capacity, as per recommendation IEC 60801.4;
- compartments:
- electrical field:
Temperatures:The cubicles must be stored in a dry area freefrom dust and with limited temperature variations.- for stocking: from -40°C to +70°C,
- for working: from -5°C to +40°C,
- other temperatures, consult us.
Main characteristics| Rated voltage (kV) | 24 |
| Insulation level | |
| 50 Hz, 1 mn | Insulation | 50 |
| (kV rms) | Isolation | 60 |
| 1.2/50μs | Insulation | 125 |
| (kV peak) | Isolation | 145 |
| Breaking capacity |
| Transformer off load (A) | 16 |
| Cables off load (A) | 31.5 |
| Short-time withstand current | 25 | 630 - 1250 A |
| (kA.1 s) | 20 | 630 - 1250 A |
| | 16 | 630 - 1250 A |
| | 12.5 | 400 - 630 - 1250 A |
The making capacity is equal to 2.5 times the short-time withstand current. Maximum breaking capacity| Rated voltage (kV) | 24 |
| Units |
| IM, IMC, IMB, | 630 A - 800 A* |
| NSM-cables, NSM-busbars |
| PM, QM, QMC, QMB | |
| CRM | |
| CRM with fuses | |
| SF6 circuit breaker range: |
| DM1-A, DM1-D, DM1-W, DM1-Z, DM1-S, DM2 | 20 kA |
| Vacuum circuit breaker range: |
| DMV-A, DMV-D, DMV-S | 20 kA |
