| Price: | US $ 1900-2000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | HL-QG-JC-SYT-003 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | Customzied |
| Mrerial: | Customzied |
| Fittings: | Customized |
| Details: | Customized |
| Accessories: | Customized |
| Product Name: | Lab School Furniture |
| Manufacture: | Yes |
| OEM Service: | Yes |
| ODM Service: | Yes |
The lab school furniture should be customized.

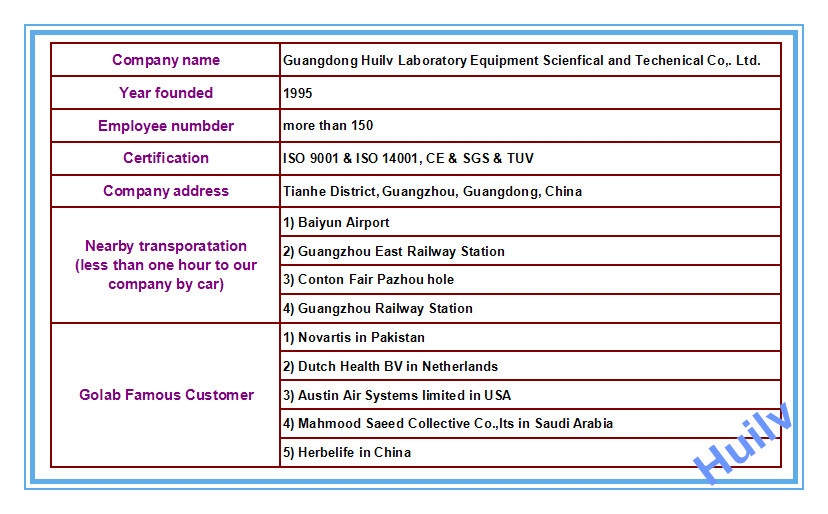

A: company information for quick research

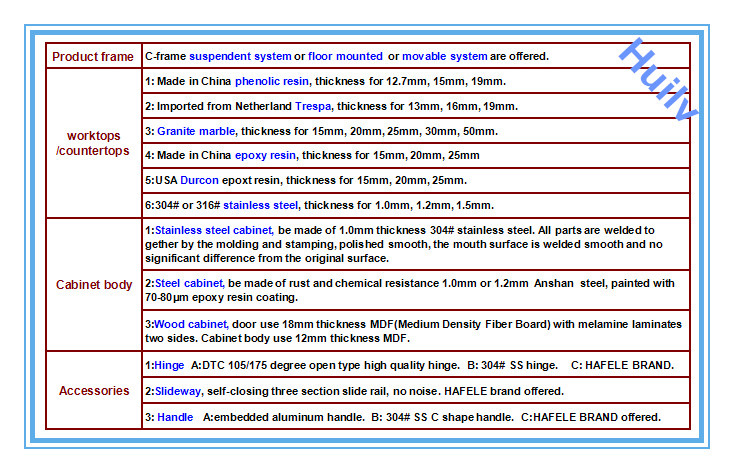

B: gerenal specification for reference

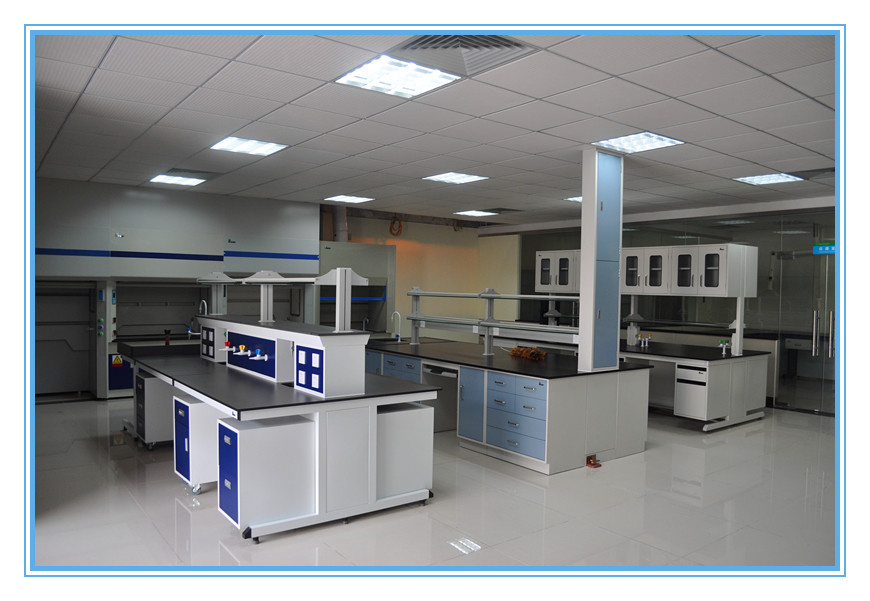

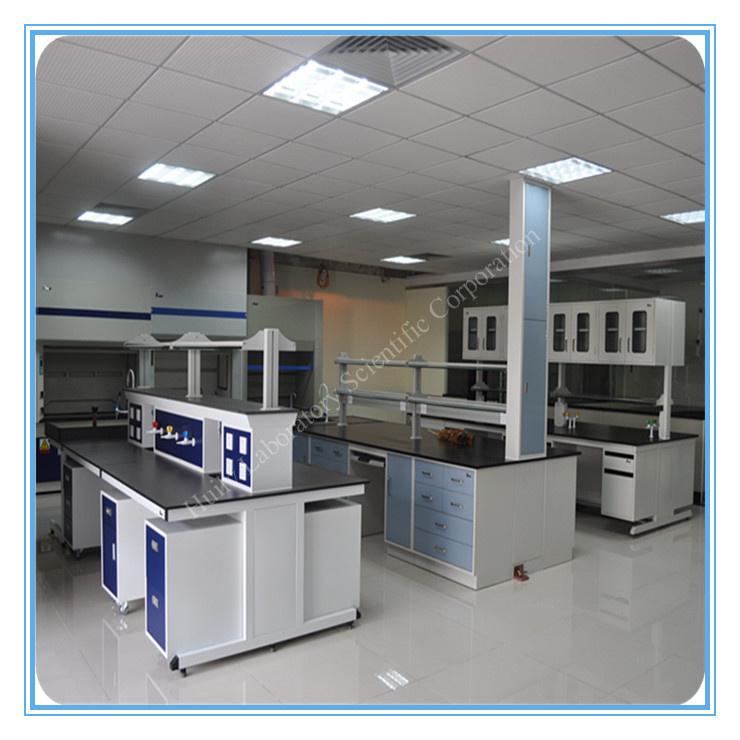

C: showroom picture for reference
D: lab school furniture details
Work Top: the below options are available.all the lab worktops is chemical resistant,heat resistant,against solvent,
acid and alkali resistant, scratch and impact cutting resistant.monolithic smooth, non-glare finish.
Phenolic tops:13/16/19/25mm thickness of Wilsonart Chemsurf chemical resistant laminate;
15/19/25mm thickness Belmax Lab grade phenolic resin laminate.
Epoxy Resin Tops:13/16/19/25mm Durcon Epoxy Resin Worksurface.
16/19/25mm Siruike lab grade epoxy resin tops.
Ceramic tops:20mm/30mm Ornices Ceramic Work Top.
Trespa tops: 13mm/15/19mm Trespa worktop.
Compact tops: 13mm.
Body & Cabinet: Made of 18mm high pressure semi-solid wood (MDF) covered with 0.4mm High Pressure Laminate (HPL) on both sides with 3 mm PVC edging strips. Customized size and style.
Optional Sink: International standard lab grade PP sink,epoxy sink,ceramic sink are available for option.
Reagent Rack: The main frame is made of 1.5mm thickness of cold-rolled steel plate. The adjustable shelve
are made of 12mm thickness of reinforce glass with stainless steel tube for guardrail.
Electric Fitting:sockets and power point all are optional for electric supply.according to customer specification.
Water Faucet : cold & hot water outlet ,two way water Outlet,three way water outlet are available.
Accessories: pegboard,eyewash ,gas outlet are should be used in the lab bench.
Hinge:105/175 degree open type high quality hinge;2.0mm thickness 304# stainless steel hinge;
hydraulic hinge are available.
Handle:304# Stainless steel handle;embedded aluminum handle with epoxy coating,lines handle are available.
Slideway: Stainless steel self-closing three section slide rail, no noise.hydraulic slideway are available.
| Worktop | Phenolic resin, epoxy reisn, ceramic etc (black, white, grey etc) |
| Frame | C-type, 40*60*1.5mm square steel tube with 75μm epoxy resin powder coating |
| Cabinet | 15mm thickness of MDF with melamine laminates two-sided, edging strips. |
| Handle | embedded aluminum alloy handle |
| Hinge | DTC175 |
| Accessories | Faucet, sink, socket, reagent shelf etc |
| Worktop | Phenolic resin, epoxy reisn, ceramic etc (black, white, grey etc) |
| Frame | C-type, 40*60*1.5mm square steel tube with 75μm epoxy resin powder coating |
| Cabinet | 1.2mm thickness of cold-rolled steel with 75μm epoxy resin powder coating |
| Handle | C-type, stainless steel handle |
| Hinge | DTC175 |
| Accessories | Faucet, PP sink, socket, reagent shelf, gas valve etc |
Please be noted:all the specification and requirement should be customized.
