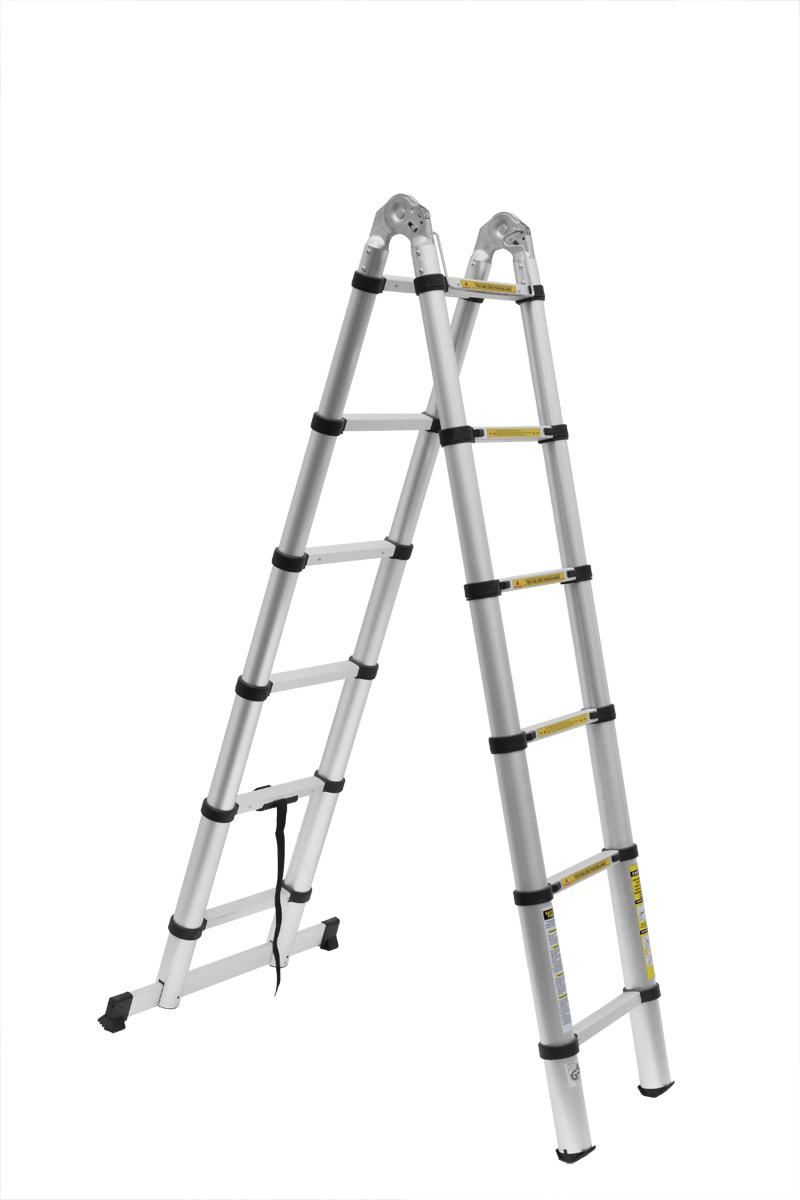

3.8m Multi-Purpose Telescopic Ladder with Small Hinge

Prod Model:	JK-1002D
Markets:	North America,South America,Eastern Europe,Mid East,Eastern Asia,Western Europe
MOQ:	200 PCS
Certificate:	CE/En131
Thickness:	1.3mm
Delivery Time:	20-25 Days
Max Loading:	150 Kgs
Payment Term:	Tt L/C at Sight
Loading Port:	Ningbo
Weight:	13.5kgs
Aluminum Mode:	6063t5
Packaging Detail:	Shrink Wrap
Type:	Fixed Straight Ladder
Function:	Telescopic Ladder
Material:	Aluminum
Loading:	150kg
Insulation:	Non-Insulated
Pedal Number:	12 Step
Color:	Silver White, Red/Bule

Product Description

JK-1001D	Extension length: 3.2M(1.6M+1.6M)	150Kg	12.0KGS	13.5KGS	330PCS	770PCS	200PCS	89*52*20CM
	Folding height:88CM
	A step ladder height:156CM
	Aluminum mode:6063
	Thickness of Aluminum:1.3MM
JK-1002D	Extension length: 3.8M(1.9M+1.9M)	150Kg	13.5KGS	14.0KGS	310PCS	740PCS	200PCS	92*52*20CM
	Folding height:91CM
	A step ladder height:187CM
	Aluminum mode:6063
	Thickness of Aluminum:1.3MM
JK-1003D	Extension length: 4.4M(2.2M+2.2M)	150Kg	15.0KGS	16.0KGS	300PCS	710PCS	200PCS	95*52*20CM
	Folding height:CM
	A step ladder height:187CM
	Aluminum mode:6063
	Thickness of Aluminum:1.3MM
JK-1004D	Extension length: 5.0M(2.5M+2.5M)	150Kg	16.5KGS	17.0KGS	290PCS	680PCS	200PCS	98*52*20CM
	Folding height:85CM
	A step ladder height:187CM
	Aluminum mode:6063
	Thickness of Aluminum:1.3MM

3.8m telescopic ladder with hinge:
· Materials: 6063A (aluminum)/PA.
· Thickness of aluminum: 1.3mm.
· Open size: 606 X 860 X 980mm.
· Folding size: 606 X 100 X 3, 200mm.
· Height between steps: 300mm.
· Step number: 12.
· Top step to ground: 3, 800mm.
· Maximum loading capacity: 150kg.
· Packing: Protective membrane + polyfoam + carton.
· Carton size: 520X 890X 190mm.
· Net weight: 13.5kg.
· Gross weight: 14.0kg.
· Loading:
  20ft GP container: 310pieces.
  40ft GP container: 620 piece.
  40ft HQ container: 740pieces.
Product Description:
1.Composed of ultra-strong aluminum alloy.
2.Each step can hold a load of 150kg.
3.Large rubber feet pads.
4.The whole ladder uses black anode treatment, which prevents oxidation, increasing product lifespan          and making the entire exterior flat and smooth.
5.Uses multifunctional joint ladder structure, allowing the ladder to be used in different environments and    sites.
6.Increased rubber guards prevents scratches when touched during use, and also prevents internal dust    buildup.
7.Used for home, plumbing and electric work, monitoring construction, high technology industry, clean          rooms, and outdoor activities.
Concept:
1.Aluminum ladder is developed under the concept of People safety,comfortable,and High Quality.
2.Based on abundant and historical designs which are handed down continuously throughout the world.
3.We strive to produce new premium quality products to suit all needs.
4.That is why we have named this the aluminum ladder series.
5.One characteristic of this product is unlike wood ladders heavy ,this product is designed of easy                  application and light weight.
6.We strive to provide and satisfy our customers with innovative ladders.
Safety Features:
1).Rectangular aluminum tubing: strut joins designed to minimize parallel movement and strange                   sounds.
2).Extending bottom: flared feet enhance stability and balance.
3).Flat aluminum board can be added to enhance stability.
4).Ladder's steps and tube made of high quality aluminium, light and easy to move.
5).Aluminium multipurpose ladder with small hinge,it is also foldable to be stored.Hot Sale
Attentions:
1.Erect ladder on a level base.
2.Erect ladder on a firm base.
3.Face ladder when ascending or descending ladder.
Ladder are widely used in Store,House and Office;
We are professional ladder factory and hot sale all over the world.
