| Prod Model: |
YSST-270 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Internal Size(mm): |
900*600*500 (W*H*D) |
| Cu(Chcooh) PH Value: |
3.0-3.2 |
| Salt PH Value: |
6.5-7.2 |
| Salt Spray Vehicle: |
Air+Acid(Base)Liquid |
| Material: |
Imported PVC & PP |
| Heating Method: |
Stainless Steel Heater |
| Warranty: |
Free Parts Warranty for 12 Months |
| Controller: |
Digital Electronic Controller |
| Application / Usage: |
Resistant to Aicds Testing |
| Spray Volume: |
0.5-3.0 (M/80cm/Hr) |
| Type: |
Universal Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
| Maxcapacity: |
N/a |
| Control: |
Controller |
| Oil Cylinder Position: |
N/a |
Product Description

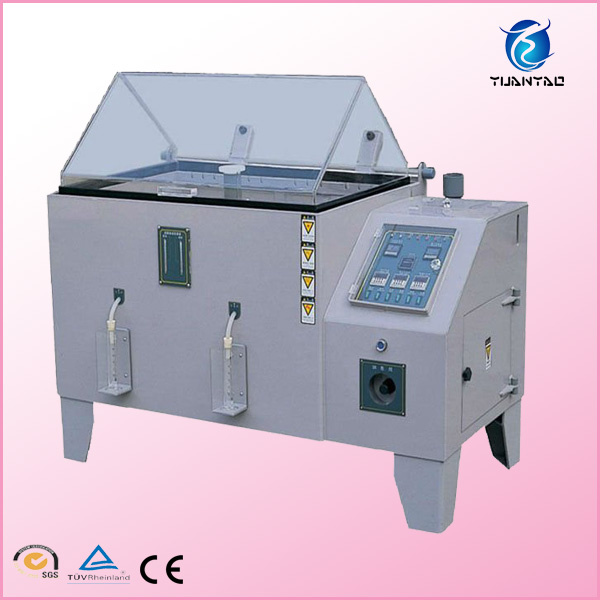

270L LCD Touch Screen PVC Salt Fog Test Cabinet
Salt Fog Test Cabinet is designed for products used in intense changeable environment, such as parts of automobile, airmaterial, photographic equipment, building materials, electroplate films&coatings and electrical & electronic system etc. It is suitable to resist to metal electrochemical corrosion.
Main features
1. The Salt spray test chamber for NSS CASS test is made of transparent materials so that the operator can see the tested sample in it and the spraying situation of the tested sample.
2. A waterproof structure is adopted between the chamber cover and chamber body, thus there is no salt spray overflow.
3. Pressure barrels use Henry's law, heating and humidifying, provide humidity to inner of salt spray testing machine.
Heating system
Salt Spray Test Equipment uses steam heating, heating speed, reduce the standby time, when the temperature reached, the thermostat automatically switches the state, the temperature accuracy, less power consumption.
Control system
High-precision temperature controller, Japan OML timer to control the time, the overall temperature error of ± 1° C.
| Model | YSST-108 | YSST-270 | YSST-480 | YSST-600 |
| Inner chamber size (W*H*D) | 600*400*450 | 900*500*600 | 1200*500*800 | 1200*500*1000 |
| Exterior chamber size(W*H*D) | 1070*580*1030 | 1380*800*1150 | 1700*950*1210 | 1900*1300*1400 |
| Temp Range | Inside Chamber | Room temp.~50ºC, ±0.5ºC |
| Air | Room temp.~63ºC, ±0.5ºC |
| Salt water | Room temp.~50ºC, ±0.5ºC |
| Saturated Air Pressure(kg/m) | 0.8 ~ 2.0 |
| Spray Volume(m/80cm/hr) | 0.5 ~ 3.0 |
| PH | Salt | 6.5 ~ 7.2 |
| Copper acetate | 3.0 ~ 3.2 |
| Exter./Inner. Mterial | P.V.C & P.P |
| Syatem | Salt Spray Veicle | Air+acid(base)liquid |
| Heating system | SUS#304 &316 stainless steel heater + taflon |
| Controller | Hydrometer,salinomerer,fog collector,glassbar |
| Other Components | Digital electronic control+S.S.SR |
| Safety Devices | Overheating prevention circult-breaker,dehydration and
Overheating prevention mechanism,breakdown indicator light |
|
| Power supply | AC1,220V ±10%,50/60Hz |
