DC Brushless Gear motor GMP56-TEC5760 |
| Product Name: |
DC Brushless Gear motor GMP56-TEC5760 |
| Maximum Efficiency: |
80%-90% |
| Voltage: |
6V-24V |
| Press Fit Force(Statics): |
40N |
| Maximum Winding Temperature: |
80ºC |
| Max Allowable Screw Into Flange: |
1.8mm |
| Ambient Temperature Range: |
-30-65ºC |
| Axial Play: |
Preset |
| Axial(Dynamix): |
0.8N |
| Maximum Radial Play: |
≤0.02mm |
| Application: |
Power Tools |
| Operating Speed: |
Low Speed |
| Structure And Working Principle: |
Brushless |
| Excitation Mode: |
Permanent Magnet |
| Type: |
DC Brushless Gear motor |
| Certification: |
RoHS CE |
| Brand: |
TT motor |
Product Description
| Website | www.ttmotor.com |
| Contact | Elina Yan |
| Tel | +86-1581-3704-981 |

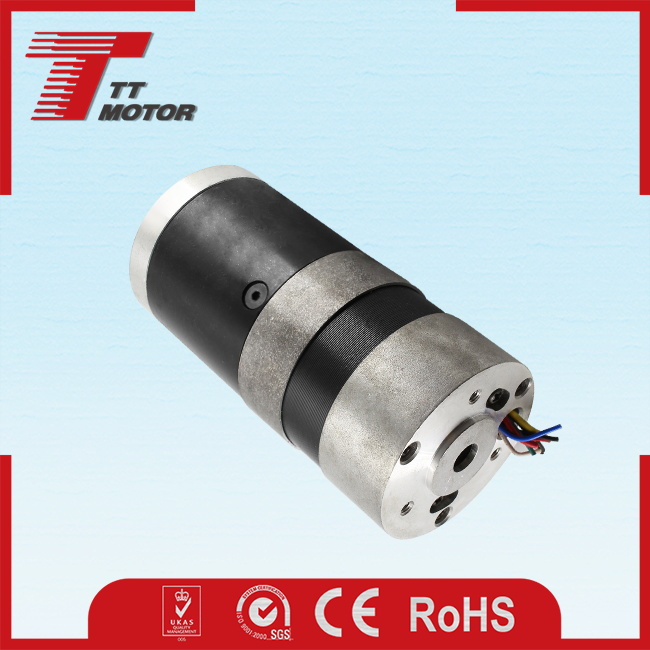

24V brushless electric motor for automatic massage chair generator parts
Main Features
| 1.OEM/ODM 56mm gearbox plus 57mm brushless motor |
| 2.Small size dc gear motor with low speed and big torque |
| 3.56mm gear motor provide 30.0Nm torque and more reliable |
| 4.Suitable to small diameter, low noise and big torque application |
| 5.Reduction ratio:4,13,15,18,47,55,65,77,168,198,234,276,326 |
| Motor model no. | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Rated current | Output power | Stall torque | Stall current |
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A |
| TEC5760-1220 | 12.0 | 2000 | 350 | 1600 | 1100 | 2100 | 18 | 2400 | 5.0 |
| TEC5760-2440 | 24.0 | 4000 | 200 | 3000 | 1600 | 3500 | 50 | 4500 | 8.0 |
| TEC5760-2480 | 24.0 | 8000 | 700 | 6100 | 2100 | 7600 | 132 | 6700 | 12.0 |
Gear motor technical data : GMP56-TEC5760-1220-xxx
| Reduction ratio | 4 | 13 | 18 | 47 | 55 | 77 | 168 | 198 | 326 |
| Length mm | 36 | 48 | 48 | 59 | 59 | 59 | 70.2 | 70.2 | 70.2 |
| No-load speed rpm | 500 | 150 | 110 | 42 | 36 | 26 | 12 | 10 | 6 |
| Rated speed rpm | 400 | 120 | 88 | 34 | 29 | 21 | 10 | 8 | 6 |
| Rated torque kg.cm | 4.0 | 11 | 16 | 36 | 42 | 59 | 110 | 130 | 215 |
| Max.momentary tolerance torque kg.cm | 9 | 25 | 35 | 79 | 92 | 129 | 242 | 285 | 300 |
Gear motor technical data : GMP56-TEC5760-2440-xxx
| Reduction ratio | 4 | 13 | 18 | 47 | 55 | 77 | 168 | 198 | 326 |
| Length mm | 36 | 48 | 48 | 59 | 59 | 59 | 70.2 | 70.2 | 70.2 |
| No-load speed rpm | 950 | 300 | 220 | 80 | 70 | 50 | 23 | 20 | 12 |
| Rated speed rpm | 750 | 230 | 165 | 64 | 55 | 39 | 18 | 15 | 9 |
| Rated torque kg.cm | 6.0 | 17 | 23 | 53 | 62 | 86 | 161 | 190 | 300 |
| Max.momentary tolerance torque kg.cm | 16 | 47 | 65 | 148 | 173 | 243 | 300 | 300 | 300 |
Gear motor technical data : GMP56-TEC5760-2480-xxx
| Reduction ratio | 4 | 13 | 18 | 47 | 55 | 77 | 168 | 198 | 326 |
| Length mm | 36 | 48 | 48 | 59 | 59 | 59 | 70.2 | 70.2 | 70.2 |
| No-load speed rpm | 1950 | 600 | 430 | 165 | 140 | 100 | 47 | 40 | 24 |
| Rated speed rpm | 1500 | 470 | 340 | 130 | 110 | 80 | 36 | 30 | 19 |
| Rated torque kg.cm | 8.0 | 22 | 30 | 69 | 81 | 110 | 210 | 250 | 300 |
| Max.momentary tolerance torque kg.cm | 24 | 70 | 98 | 220 | 258 | 300 | 300 | 300 | 300 |
Packing & Delivery
Packaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
By Sea: Depends on which country
