| Prod Model: |
TN-007M |
| Packing: |
Assembled or Dis-Assembled |
| Logo: |
Silk Print, Aluminum Sticker, Rubber Sticker |
| Material: |
SPCC Cold Rolled Steel or Eg Steel |
| Static Loading: |
60kgs |
| Type: |
Network Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Wall-Mounted Cabinet |
| Certification: |
SGS |
| Condition: |
New |
| Fan Number: |
Optional |
| Capacity: |
4u to 27u |
Product Description

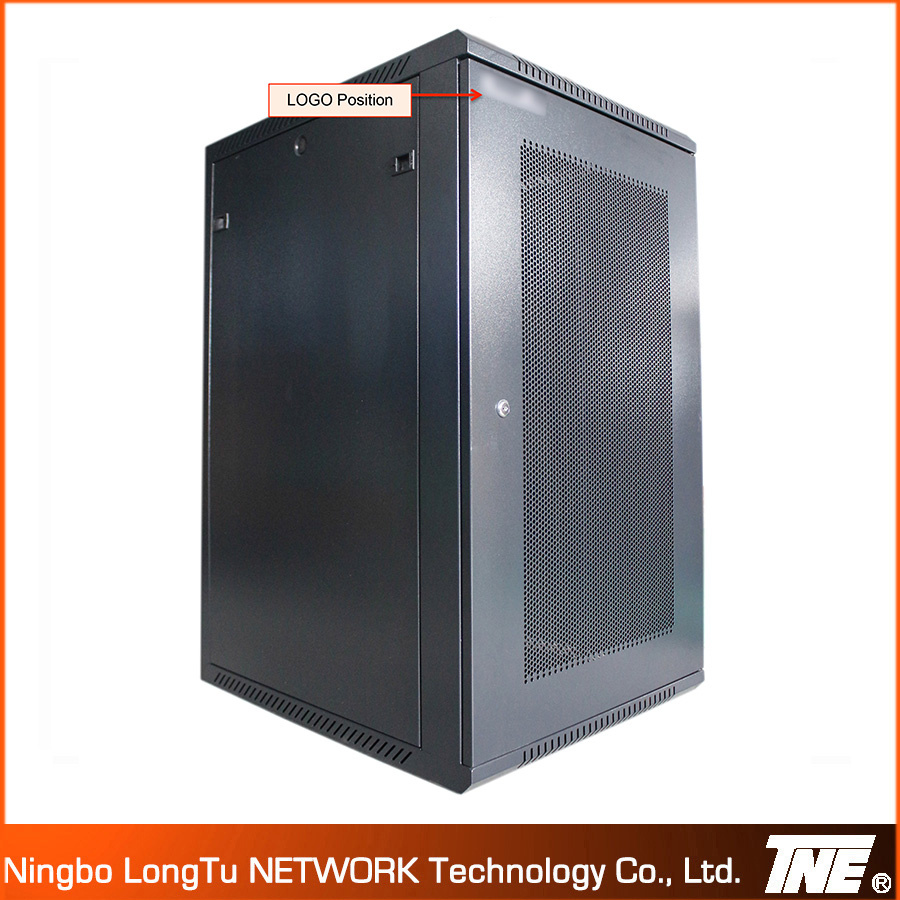

22U Single Section Wall Mount Cabinet with Front Flat Mesh Door
These 450mm Deep Wall Mounted Server Racks are ideal for small network installations where both Servers and Patching are require. The additional depth offers increased versatility and the 600mm width gives ample space for cable management.
These cabinets are suitable for holding shallow servers up to a depth of 565mm
Features:
- Lockable Mesh (Perforated) Front Door
- Removable and Lockable Steel Side Panels
- Adjustable 19" Profiles Front & Rear
- Cable access holes, with gland plates top and bottom
- Earth Bonding Kit
- Cabinets are finished in Grey.
Accessories are available on the following pages:
- PDU's
- Shelves
- Fans, Blanking Panels and Nuts and Bolts
Please Note: Casters are not compatible with wall mounted cabinets.

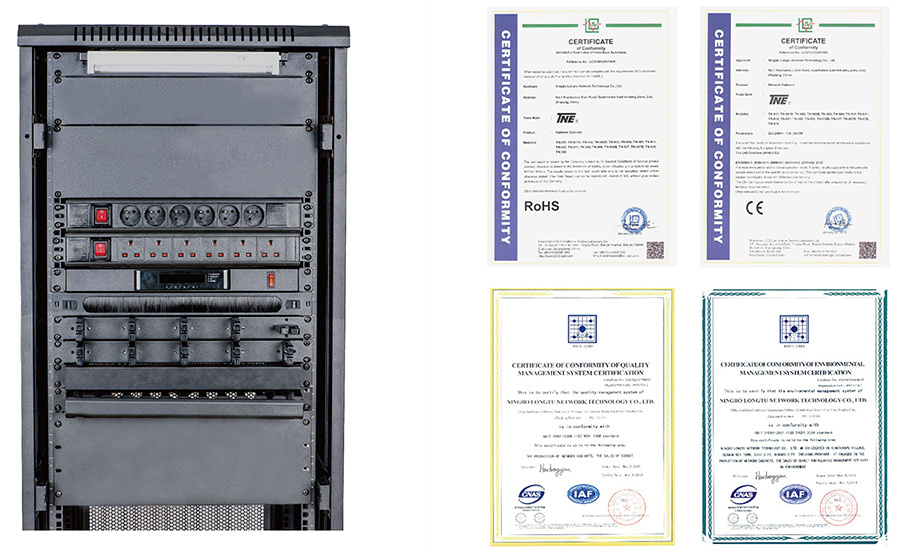

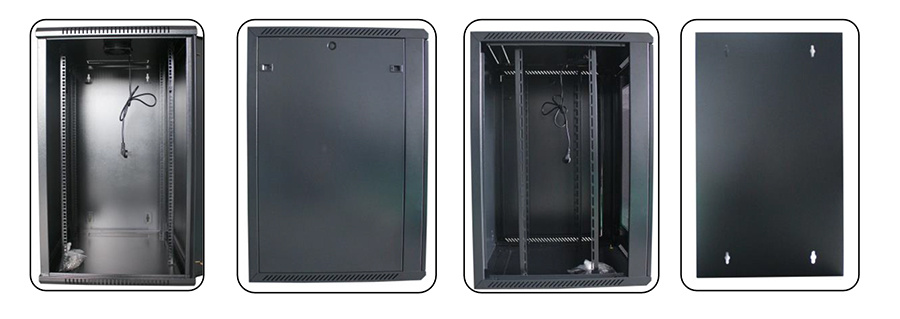

Pictures Details:

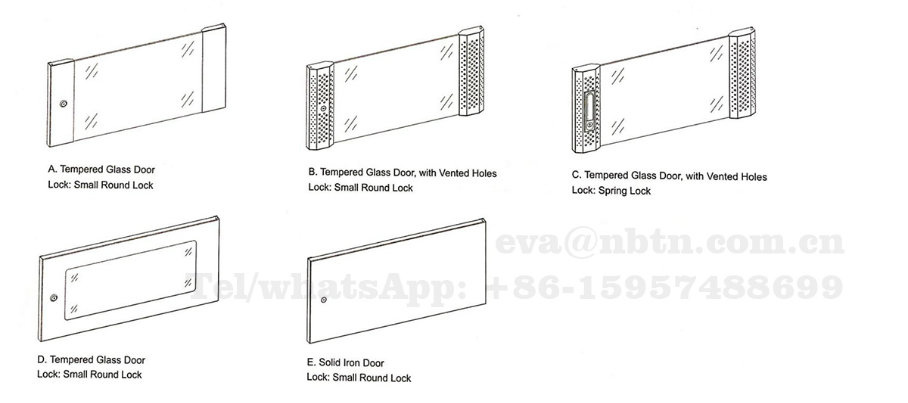

Door Optional:
Size Form | MODEL NO. | CAPACITY | WIDTH(MM) | DEPTH(MM) |
|
| TN-007M-6406 | 6U | 600 | 450 |
| TN-007M-6606 | 600 | 600 |
| TN-007M-6409 | 9U | 600 | 450 |
| TN-007M-6609 | 600 | 600 |
| TN-007M-6412 | 12U | 600 | 450 |
| TN-007M-6612 | 600 | 600 |
| TN-007M-6415 | 15U | 600 | 450 |
| TN-007M-6615 | 600 | 600 |
| TN-007M-6418 | 18U | 600 | 450 |
| TN-007M-6618 | 600 | 600 |
| TN-007M-6422 | 22U | 600 | 450 |
| TN-007M-6622 | 600 | 600 |
| TN-007M-6427 | 27U | 800 | 450 |
| TN-007M-6627 | 800 | 600 |
