| Prod Model: |
BS20/4-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quality Managment Standard: |
ISO9001 |
| Main Frame Profile: |
204X120X4mm(4-Channel) |
| Eave Connection: |
Hot-DIP Galvanized Twin Steel Plate |
| Roof Fixing: |
Bar Tension |
| Frame Material: |
Hard Pressed Extruded Aluminum 6061/T6 |
| Cover Material: |
Double PVC Coated Polyester Textile, Flame Retarda |
| Top Style: |
Ridge Tent |
| Capacity: |
>10 |
| Material: |
PVC |
| Usage: |
Exhibition, Warehouse, Celebration etc |
| Structure: |
Single Skin |
| Color: |
White |
| Waterproof: |
Waterproof |
| Customized: |
Customized |
| Style: |
Many Doors |
| Pole Material: |
Anodized Aluminum Alloy |
| Season: |
All Season |
Product Description

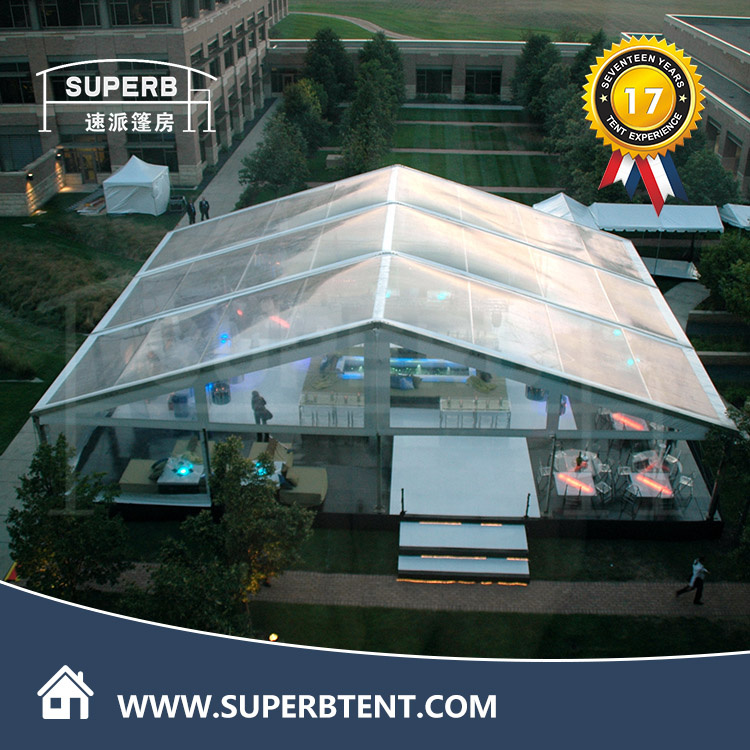

20x30m Luxury Wedding Canopy Tent with tent chair
1. Luxury wedding party tent in Nigeria;
2. ABS and glass sidewalls;
3. Pleated satin fabric decoration linings inside.
Product Description
1. Application
20x30m Luxury Wedding Canopy Tent with tent chair(BS series, A frame) can be widely used as the wedding tent, party tent, exhibition tent, conference tent, different kinds of festivals tent, hajj tent, corporate events tent, sports tent, & temporary, semi-permanent or permanent building purpose etc.
2. Materials
Fabric: Double PVC coated polyester fabric, 650-900g/sq. M, water proof, UV resistance, anti-mildew, self-cleaning, fire retardant according to standard NFPA701 & DIN4102 B1/M2
Frame: Hard pressed extruded aluminum 6061/T6, anodized surface finishing.
Main frame profile size: 204X120X4mm;
Connections: Hot-DIP galvanized steel;
3. Life span of fabric(cover & sidewalls): 8-10years
Life span of aluminum frame: 20-30years
4. Structure safety parameters
Wind load: 102km/h (0.5kn/M2)
Snow load: 25kg/sq. M
5. Color available
White, red, yellow, blue, green, black, grey, transparent etc
6. Optional Accessories:
Ground anchor, anchor puller, weight plate, glass door, fire door, glass wall, ABS hard wall, Sandwich walls, auto-rolling door, decoration lining, flooring system, clear PVC windows sidewalls, transport rack for the glass door & walls, ramp etc; Chairs, tables, & other furniture for the parties are also provided for your option.
7. Specification for 20x30m Luxury Wedding Canopy Tent with tent chair (BS series, A frame), pls refer to below chart:
| Type | Span (m) | Side height (m) | Ridge height (m) | Bay Distance (m) | Roof Pitch | Longest Component (m) | Wind Load (km/h) |
| BS10/4-5 | 10 | 3.9 | 5.4 | 5 | 18° | 6 | 100 |
| BS12/4-5 | 12 | 3.9 | 5.9 | 5 | 18° | 6.5 | 100 |
| BS15/4-5 | 15 | 3.9 | 6.3 | 5 | 18° | 8.1 | 100 |
| BS20/4-5 | 20 | 3.9 | 7.1 | 5 | 18° | 10.7 | 100 |
| BS21/4-5 | 21 | 3.9 | 7.3 | 5 | 18° | 11.3 | 100 |
| BS25/4-5 | 25 | 3.9 | 7.9 | 5 | 18° | 10.7 | 100 |
| Main frame Profile | 204x120x4mm(4-channel) |
| Eave Connection | Hot-dip Galvanized Twin Steel Plate |
| Roof Fixing | Bar Tension |
| Frame Material | Hard Pressed Extruded Aluminum 6061/T6 |
| Cover Material | Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,650-900g/sq.m |
