| Price: | US $ 10000-15000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Paypal,Money Gram |
| Prod Model: | Plastic Rattan Extruder Machine |
|---|---|
| Application: | Plastic Melt Extrusion |
| Usage: | Extrusion Plastic Products |
| Voltage: | 50Hz |
| Guarantee: | 1 Year |
| Product Type: | Extrusion Molding Machine |
| Feeding Mode: | Multiple Feed |
| Assembly Structure: | Separate Type Extruder |
| Screw: | Single-Screw |
| Engagement System: | Full Intermeshing |
| Screw Channel Structure: | Deep Screw |
| Exhaust: | Don't Exhaust |
| Automation: | Automatic |
| Computerized: | Computerized |
| Type: | Rattan Extruder |
| Plastic Processed: | PE PP |

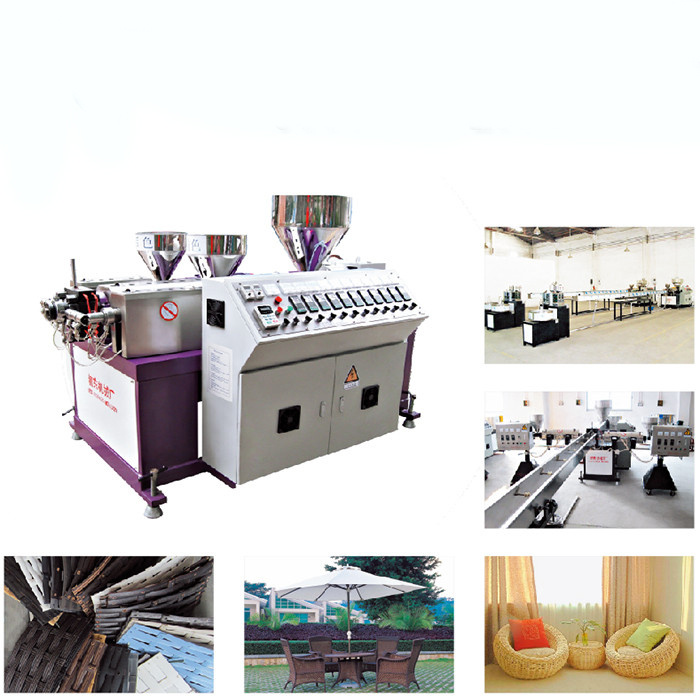

| Model: 2018 New design synthetic rattan plastic chair making machine | ||||
| Item | Unit | part(s) | number | Description |

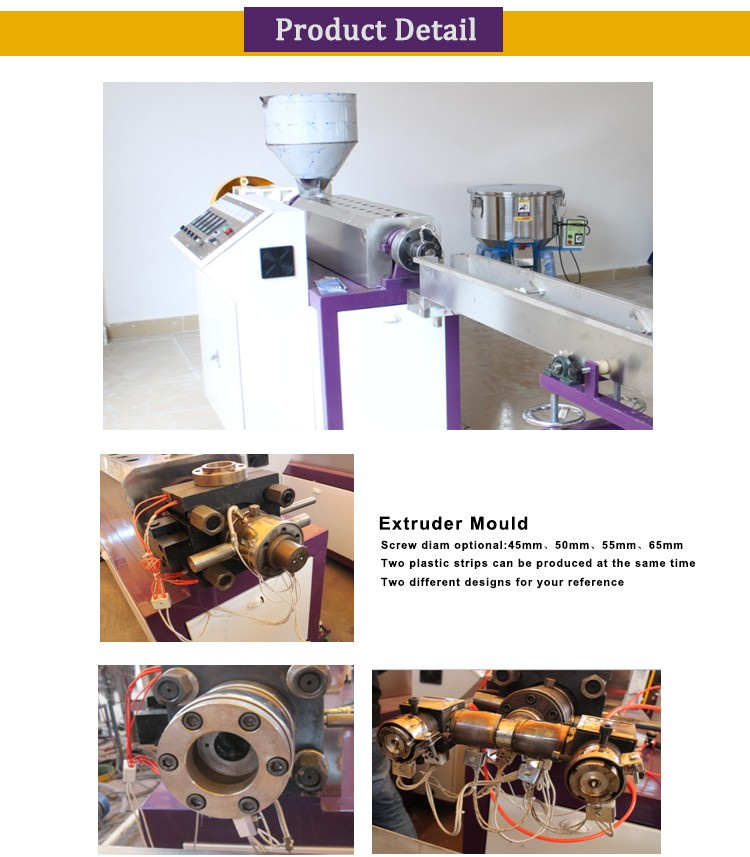

| 1 | Three-in-one extruder | Main extruder screw & barrel | 1 set | Ø25 ; L/D:22:1, substrate:38CrMoAlA, nitriding |
| Sub-extruder screw & barrel | 2 sets | Ø25 ; L/D:22:1, substrate:38CrMoAlA, nitriding | ||
| Main gear box | 1 set | both oblique gear, hardening, polished | ||
| Main Motor | 1 set | 11kW, both frequency varying | ||
| Sub-motor, reducing | 1 set | cycloidal needle wheel motor, 2.2kW | ||
| Hopper & Fan Cover | 1 set | stainless steel | ||

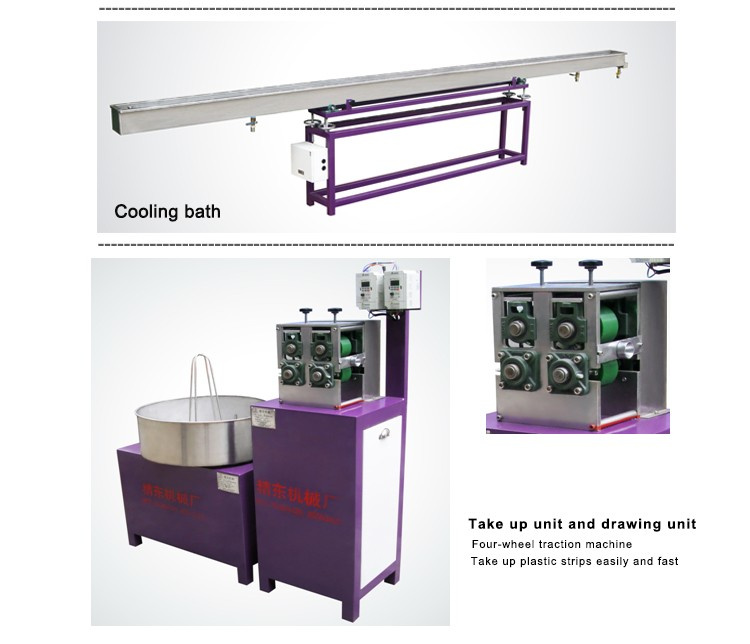

| 2 | Cooling bath | 1 set | length:6m, stainless steel | |
| 3 | Drawing & Take-up unit | 1 set | drawing motor:1.5kW, take-up motor:0.75 kW, both frequency varying | |

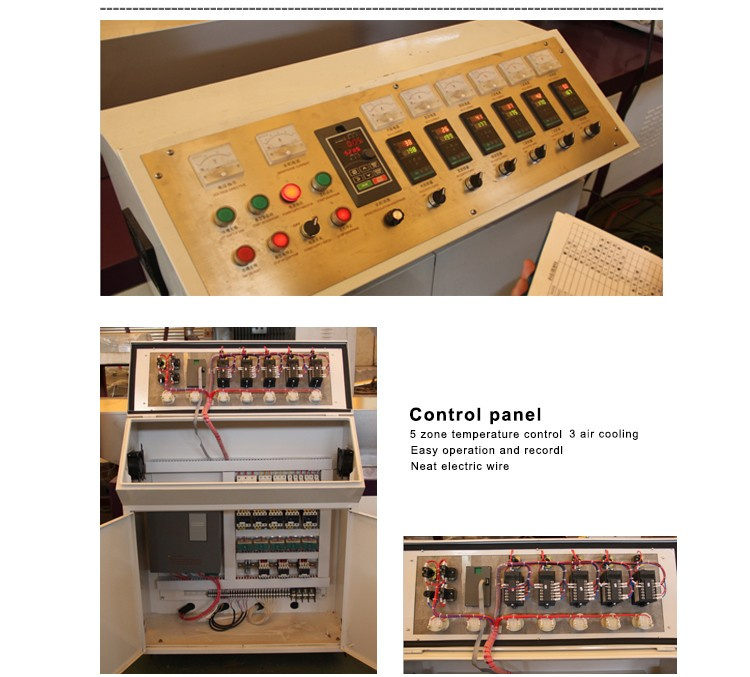

| 4 | Panel | 1 | 11 zone temperature control, 7 air colling | |
Our Services
Before sale
1.We provide service for consulting on end product analysis and facilities selection.
2.We can arrange you to visit our local clients to see how our facilities work.
After purchasing
1.We can provide ways on materials purchase.
2.Free offering of product formulation.
3.We provide service for training on process.
4.Before delivery, trial production to give qualified end product.
5.OEM service to meet client's special demanding
After sales
1.Technical advisory services for a long time
2.The machine will have one year of warranty.During the warranty period,if any part of machine is brokenot by man made.We will replace it with the new one freely for you.The warranty date will begin since the machine be sent out upon we receive the B/L.
FAQ
Q: How do I buy from your company?
A: When you find the product you want, just send inquiry to us, and we will reply you within 24 hours .then send you order conformation information, when you confirm to buy the products, we will prepare the proforma invoice and bank details for you. then you paid.
Q: How do I make payment for my order?
A: You make payment by taking the proforma invoice and our bank details,you can use T/T(bank transfer), Western Union. finish the payment.
Q: How can you guarantee my payment ?
A : Our company is MADE IN CHINA SUPPLIER. and SGS have make us done enterprise authentication. We always adhere to the "customers foremost, quality first" of aim, pay attention to honesty, the pursuit of excellence.
Q: Can I buy different models in one time?
A: Yes we can combine the shipments.
Q: How long is your delivery time ?
A: We normally ship your order within one month since receving your payment.
