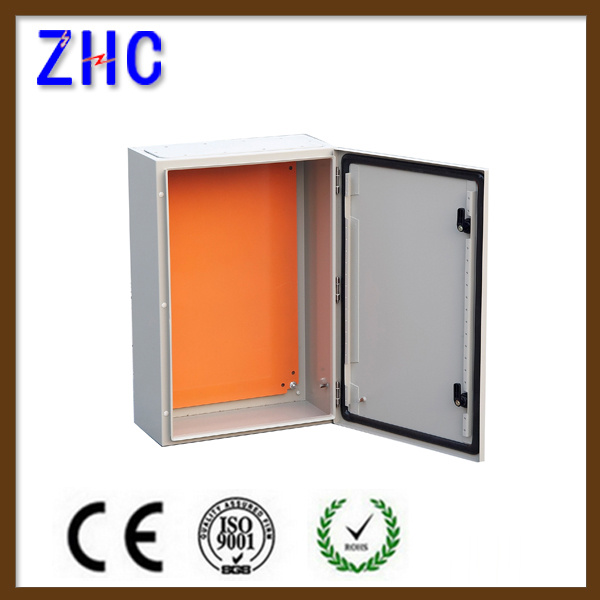

2015 Ral7032 Powder Coating NEMA IP65 Wall Mounted Cabinet

Name: 2015 Ral7032 Powder Coating NEMA IP65 Wall Mounted Cabinet
Brand: thisfurniture.com
SKU: 639018575
Availability: InStock
Rating: 4.3 (81 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ST2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
External Size:	IEC Standard or Customized
Certificate:	CE
IEC Standard:	ISO9001
Mounting Plate:	Zinc Steel or Powder Coating Steel
Structure:	Wall Mounted
Material:	Steel
Type:	Wall Mounted Cabinet

Product Description

2015 HOT SALE ISO9001 CE RAL7032 POWDER COATING NEMA IP65 WALL MOUNTED CABINET

Product Features of Wall Mounted Cabinet

1.Using: wall mounted box is mainly suitable for indoor and outdoor electrical, communications, fire fighting equipment, iron and steel smelting, petrochemical, electronics, electricity, railways, construction sites, mines, mining, airports, hotels, ships, large factories, coastal plants, loading dock equipment, sewage and waste treatment facilities, environmental hazards facilities.

2.Material: wall mounted box with new material selection, quality cold roll steel , or can be requested by the customer to the first Optional materials can be customized stainless steel or zinc steel

3.IP65

Product Construction of Wall Mounted Cabinet

-Back and side panels manufactured in 1.5mm sheet steel.

-Mounting plate manufactured in 2.5mm sheet steel.

-Door Manufactured in 2mm sheet steel with reinforcing frame. Finish: standard cycle thermosetting epoxypolyester powder coating.

-Structure, door RAL 7032 textured finish.

-Mounting plate: RAL 2004 smooth finish(Also available for zinc coated)

-Protection degree: IP 65 to EN60 529 NEMA 12. Supply include:

-Back and side panels(structure)

-Mounting plate. (Also available without mounting plate)

-4 Mounting plate suppots.

-Front door with reinforcing frame with 4 hinges a 4 point locking system.

-Cable gland plate supplied

-4 Lifting eyebolts

Full Size Range of Wall Mounted Cabinet

NO.	H	W	D	THICKNESS
NO.	mm	mm	mm	Door/mm	Body/mm	M.P/mm
1	200	200	150	1.2	1.2	2
2	250	200	150	1.2	1.2	2
3	300	200	150	1.2	1.2	2
4	300	200	200	1.2	1.2	2
5	300	250	150	1.2	1.2	2
6	300	250	200	1.2	1.2	2
7	300	250	250	1.2	1.2	2
8	300	300	150	1.2	1.2	2
9	300	300	200	1.2	1.2	2
10	300	300	250	1.2	1.2	2
11	400	300	150	1.2	1.2	2
12	400	300	200	1.2	1.2	2
13	400	300	250	1.2	1.2	2
14	400	300	300	1.2	1.2	2
15	400	400	150	1.2	1.2	2
16	400	400	200	1.2	1.2	2
17	400	400	250	1.2	1.2	2
18	400	400	300	1.2	1.2	2
19	500	300	150	1.2	1.2	2
20	500	300	200	1.2	1.2	2
21	500	300	250	1.2	1.2	2
22	500	300	300	1.2	1.2	2
23	500	400	150	1.2	1.2	2
24	500	400	200	1.2	1.2	2
25	500	400	250	1.2	1.2	2
26	500	400	300	1.2	1.2	2
27	500	500	150	1.2	1.2	2
28	500	500	200	1.2	1.2	2
29	500	500	250	1.2	1.2	2
30	500	500	300	1.2	1.2	2
31	600	400	150	1.2	1.2	2
32	600	400	200	1.2	1.2	2
33	600	400	250	1.2	1.2	2
34	600	400	300	1.2	1.2	2
35	600	500	150	1.2	1.2	2
36	600	500	200	1.2	1.2	2
37	600	500	250	1.2	1.2	2
38	600	500	300	1.2	1.2	2
39	600	600	150	1.2	1.2	2
40	600	600	200	1.2	1.2	2
41	600	600	250	1.2	1.2	2
42	600	600	300	1.2	1.2	2
43	700	400	200	1.2	1.2	2
44	700	400	300	1.2	1.2	2
45	700	500	150	1.2	1.2	2
46	700	500	200	1.2	1.2	2
47	700	500	250	1.2	1.2	2
48	700	500	300	1.2	1.2	2
49	700	600	200	1.2	1.2	2
50	700	600	250	1.2	1.2	2
51	700	600	300	1.2	1.2	2
52	800	600	200	1.5	1.5	2
53	800	600	250	1.5	1.5	2
54	800	600	300	1.5	1.5	2
55	800	600	400	1.5	1.5	2
56	800	800	200	1.5	1.5	2
57	800	800	250	1.5	1.5	2
58	800	800	300	1.5	1.5	2
59	1000	600	200	1.5	1.5	2
60	1000	600	250	1.5	1.5	2
61	1000	600	300	1.5	1.5	2
62	1000	700	200	1.5	1.5	2
63	1000	800	200	1.5	1.5	2
64	1000	800	250	1.5	1.5	2
65	1000	800	300	1.5	1.5	2
66	1000	800	400	1.5	1.5	2
67	1000	1000	250	1.5	1.5	2
68	1000	1000	300	1.5	1.5	2
69	1200	600	200	1.5	1.5	2
70	1200	600	250	1.5	1.5	2
71	1200	600	300	1.5	1.5	2
72	1200	800	200	1.5	1.5	2
73	1200	800	250	1.5	1.5	2
74	1200	800	300	1.5	1.5	2
75	1200	1000	250	1.5	1.5	2
76	1200	1000	300	1.5	1.5	2
77	1200	1000	400	1.5	1.5	2
78	1200	1200	250	1.5	1.5	2
79	1200	1200	300	1.5	1.5	2
81	1400	600	300	1.5	1.5	2
82	1400	800	300	1.5	1.5	2
83	1400	800	400	1.5	1.5	2
84	1400	1000	300	1.5	1.5	2
85	1400	1000	400	1.5	1.5	2
86	1400	1200	300	1.5	1.5	2

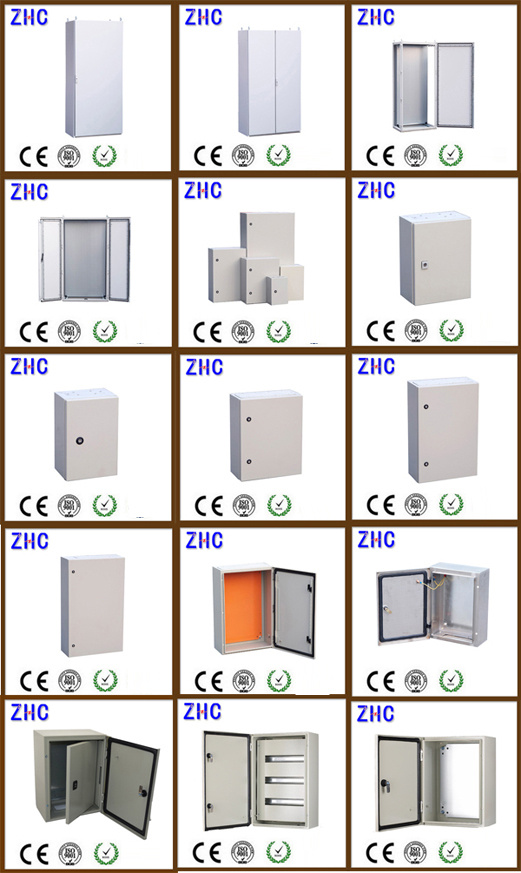

Similar Product of this series of Wall Mounted Cabinet

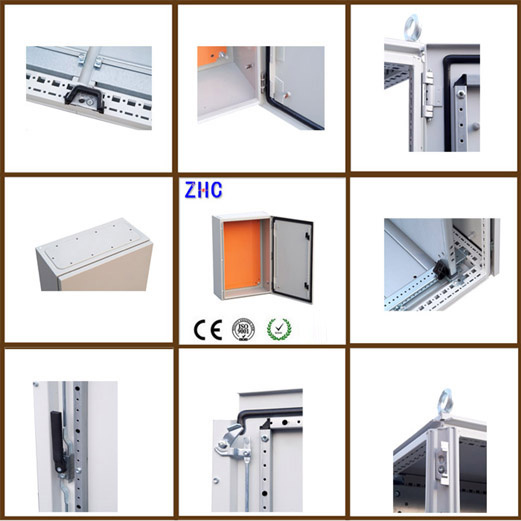

Construction of Wall Mounted Cabinet

Certificate of Wall Mounted Cabinet

About US:

Our company in the R&D, manufacture and sale of low voltage electric applicants, such as industrial plug, aerial fittings, switches, distribution box and other related products. Our factory, with the aim of high quality and low price, offers superior OEM services, and has accumulated abundant experience in manufacturing low voltage.

1. We already get the certificate of ISO9001, CE, SGS, RoHS

2. We have 10 years of manufacture and 8 years exporting experience.

3. We have completely sales service system, ensure every detail is going smooth.

4. We have new designed products each year by our R&D Department.

5. Perfect testing system ensure each product is qualified.

6. We have a good reputation in Russia, Spain, India, Thailand, south American, MID-east market and so on.

How to Order?

1. Please let us know what kind of model.

2. Proforma invoice (PI) will be sent to you.

3. Please check and confirm the PI.

4. Once we confirmed the order, please pay the discussed deposit soon.

5. After getting your deposit payment, all goods will be sent to you in by sea or air within one month.

6. OEM/ODM is welcomed...

Shipping:

1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).

2. We Provide Drop shipping Service.

3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.

4. In order to ensure you receive your order tax free upon import, we can declare lower value if needed.

5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Payment:

1. TT or L/C at sight.

2.30% deposit and 70% against shipping documents.

Warranty:

1. We provide 2 year quality warranty.

2. If the product is defective, please notify us within 3 days of delivery.

3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods.

Based on mutual benefit, our company development business with more than 50 countries, our main market is south amercian, north Africa, Middle East Asian, south east Asian, east Europe.
