| Prod Model: |
FP-ch-002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White, Blue, Red or as Customer |
| Column And Purlin: |
Light Steel Structure with Sandwich Panel |
| Environment-Friendly: |
Recycling Material |
| Roof And Wall Panel: |
Light Steel Structure with Sandwich Panel |
| Usage: |
Workshop |
| Certification: |
BV |
| Customized: |
Customized |
Product Description
| | Roof | Gray white
50mm EPS(Polystyrene)Sandwich panel |
| 4 | Floor | Plywood +PVC carpet |
| 5 | Window | PVC double sliding window |
| 6 | External door | Sandwich panel door |
| 7 | Wall | Gray white
50mm EPS(Polystyrene)Sandwich panel |
| 8 | Corner castings | SHS |
1. Flexible size and combination:freely at length, width and height.
2. Simple installation:4 people / day install more than 4 sets.
3. Good performance in water proof solution.
4. Environment materials, it can be assembled and disassembled several times.
5. Container house is movable and portable by crane .
6.Economic transportation:Bulk packaging, 15sets/40HC .

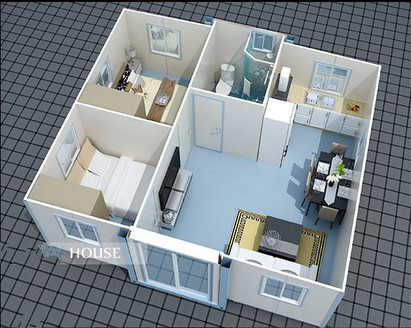

Flexible container house can be worker camp/accommodation/site office/kitchen/toilet and so on.
If you have your own idea, please let us know the size or plan, we will design for you!1. Technical Parameter:
(1).Size: GP20, GP40 and HP40 of shipping container
(2).Wind Resistance: Grade 12
(3).Wall permitted loading: 0.6KN/ m2
(4).Ceiling Permitted live loading: 0.5 KN/m2
(5).Wall Coefficient of thermal conductivity: K=0.442W/mk
(6).Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K
Characters:
(1). Good ability to assemble and disassemble for several times without damage.
(2). Could be lifted, fixed and combined freely.
(3). Heatproof and waterproof.
(4). Cost saving and convenient transportation (Each 4 container house can loaded in one standard container)
(5) Service life can reach up to 15 - 20 years
(6) We can provide the service of installation, supervision and training by extra.
Dimensions and Weight
(1).Inner length /external length :5.81m/6.06m
(2).Inner width /external width: 2.188m/2.438m
(3).Inner height/external height:2,410m/2.591m
(4).Weight: 2000kg per unit
Steel framework
(1).Material: steel material Q345, thickness: 3.5mm,for top beam frame. Base beam frame and column.
(2).Surface working: epoxy painting,two bottom and two surface.
(3).Fittings: 8 standard container corner mould fittings PVC standard rainwater pipe
(4).Forklift openings: size 100*250mm, distance is 1200mm
Floor
(1).External wainscot: Flat galvanized color steel sheet, 0.5mm thickness
(2).Floor structure: Girder made of 3.5mm steel. The purlin is C section steel. dimension 60x40x1.5mm.
(3).Warm proof Insulation layer:
(a)75mm rock wool
(b)18mm bamboo plywood
(c)2.0mm PVC floor leather for living rooms floor;
Ceiling
Construction:
(1).Roof exterior layer: 1.2mm steel plate with epoxy painting
(2).Warm proof insulation filling: 75mm rockwool between C section purlins;
(3).Inner wainscot: 8mm OSB board with 12mm PVC decoration board.
(4).Roof water drain: 4 PVC rainwater pipes in the corner pillars, diameter 50mm
Walls
(1).Panel width: 1150mm; panel total thickness: 75mm, five panels fit into the long side and two panels fit into the short side.
(2).Common room wall: 75mm rockwool 0.4/0.4mm Galvanized . Steel on both side .
Desity of Rockwool: 120Kg/m3
(3).Galvanize window opening on the wall if needed.
Door
(1).External door: Insulated with opening dimension 950*2100mm, furnished with lock
with 3keys.
(2).Inner door: Insulated steel door.
Windows
Window material: PVC window with fly screen. Double glass, 4mm glass.
Electrical fittings option
Electrical wire, 2.5mm2 for lighting system, and 4mm2 for AC units.
Main outlet and input industrial socket with 32A.
3 pcs 16A five hole universal socket.
2 pc double tube fluorescent lamp, 220V,50-60HZ
1 pc Single Switch, Honyar brand, with junction box
1 pc Electrical distribution box, box+breakers+earth leakage protective device
Optional Water system fittings
(1).Water drain pipe, PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years.
(2).Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC
(3).Sanitary ware:
(a).Western Close tool: ceramic, with pipes and installation fittings
(b).Urinal: ceramic, with pipes and installation fittings
(c).Wash basin: ceramic, with post, faucet, pipes and installation fittings
(d).Shower head, Shower base, Water mixture.
2. Our Services
1. Professional design and engineering team: Full solution for site camp design. We could make the design for whole camp as per your requirement.
2. Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.
3. Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.
| item | remark |
|
| Frame | |
| Steel Frame | 3.5mm,Q235, welding,rust removal,epoxy painting |
| floor support | C100x40x2.0, welding,rust removal,painting |
| fork lift open | 4mm,Q345 |
| Roofing | |
| outer steel sheet | 1.2mm steel sheet, proceed,epoxy painting |
| steel keel | C80x40x20x2.0 |
| insulation layer | 80mm glass fiber, 35Kg/m3 |
| wooden board | 8mm |
| PVC board | 12mm |
| Wall | |
| EPS sandwich panel | 75mm EPS sandwich panel,0.4/0.4mm,12Kg/m3 |
| outer door | light steel door, including door lockers,etc |
| sliding window | 4mm double glass sliding window,with window screen |
| Floor | |
| floor leather | 1.5mm, including glue |
| bamboo board | 15mm bamboo board |
| Insulation | 100mm glass fiber |
| Floor bottom board | 0.5mm |
| Electric unit | |
| common socket | 16A |
| ceiling light | 38W |
| electric cable | three colors |
| switch | |
| distribution board | box+switch+earth leakage protective device |
| Others | |
| lift corner piece | standard parts |
| rainspout | Φ50PVC |
| accessories | self-tapping screw,glue,edge cover,etc
|
