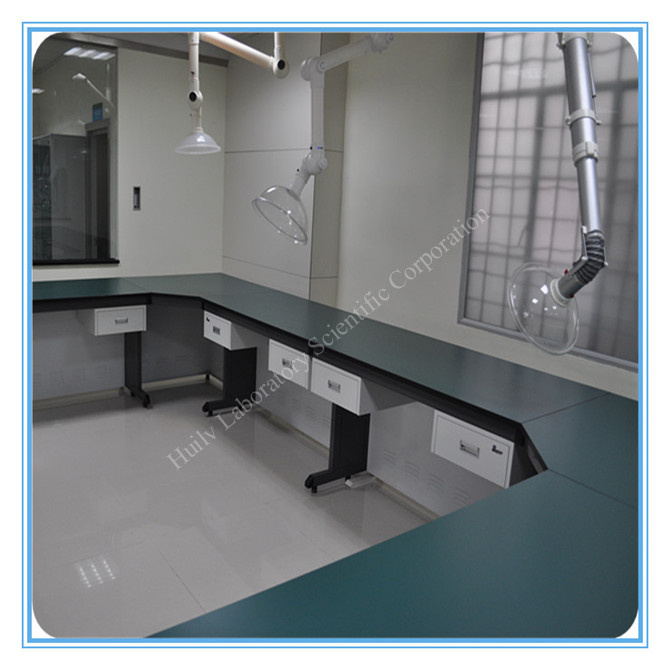

2014 New Design Lab Wall Bench Furniture with Drawer (HL-QG-X023)

Prod Model:	HL-QG-X023
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Table Size:	3750*1500*850mm
Size:	Customized
Accessories:	Customized
Port:	Shenzhen, Guangzhou, Shanghai etc
Delivery:	7-10 Working Days for Wall Bench
Quality Certificate:	ISO 9001/ISO 14001
Kind:	Lab
Folded:	Unfolded
Material:	Steel
Usage:	Lab
Color:	Optional

Product Description

All steee structure laboratory furniture are customized.strenth durable structure.

1)Structures: Table one and table three are C frame steel structure, 60*40*2.0mm square steel tube sparying 75μ M epoxy resin power. The middle one is pesestal style.


2)Standard size: 3000*1500*850mm (we receive customized size. )


3)Worktop:

Optional one: 12.7mm/ 17mm / 19mm thick lab grade phenolic resin (black) countertops(double thickness to 25mm at the edge), most chemicals resistant. The acid - and alkali resistant, high temperature curing treatment, Abrasion, scratch and impact cutting resistant.

Optional two: 13mm / 16mm / 19mm thick Trespa(imported from the Netherlands) countertops, most chemicals resistant. The acid - and alkali resistant, high temperature curing treatment, Abrasion, scratch and impact cutting resistant.

Optional three: 15mm / 19mm / 25mm thick lab epoxy resin (made in China or DURCON or EPOXYN ) countertops, most chemicals resistant. The acid - and alkali resistant, high temperature curing treatment, Abrasion, scratch and impact cutting resistant.

4) Cabinets material: Made of 1.2mm cold rolled steel, all the steel parts by pickling, phosphating treatment surface by the epoxy resin power coating, high temperature curing treatment. The acid and alkali corrosion, abrasion, scratch and ompact cutting.

5) Reagent rack:

Table one: Epoxy coated Aluminum column, two layers of 12mm tempered glass. With two stainless steel guardrails at two sides.

Table two: Epoxy coated 60*30*2mm rectangular square steel column, adjustable, two layers of 12mm tempered glass laminates. Good weight support. With two stainless steel guardrails at two sides.

6) Aluminum Groove+ Electric Socket:
Aluminum Groove, special lab Multi Socket, Double Electric. International standard.

7) SINK + FAUCET:
Sink: High grade epoxy resin / high grade PP resistant to most chemicals, such as Aqua Regia. Matt finish on lip, resistant to scratch & consistent with most worktops'finish. General laboratory sink, can effectively prevent the most kinds of chemical acids and alkali corrosion resistance. Density of injection molding basin.                                                                                                                                                                          Faucet: Solid brass; High gloss epoxy powder, resistant to most chemicals, UV fading & heat; 500000 life cycles, water static pressure Max. 20Bar; Laboratory dedicated copper main material, the epoxy resin coating.

Optional fittings

* Pegboards

* Overhead and Under Bench Shelving

* Overhead and Under Bench Cabinets

*  CPU and Monitor Peripherals

* Power Modules

* Service Locations Include On bench, Overhead and Behind Bench Solutions, Task Lighting

* sink and faucet

* electric  fittings



All of our products are customized, please tell me the size, the style, the material, the accessories as you can. If not, just sent us the lab space or take photo about the room, we could design it for you too, and the desin is free. One more thing: Huilv is established about 17 years and we got CE and SGS successfully.


Company Information

Company name	Guangdong Huilv Laboratory Equipment Scientific and Technological Co.,Ltd
Year Founded	1995
Employee number	more than 150 factory workers
Month Supply Capacity	5 million RMB
Certification	ISO 9001:2008 & ISO 14001:2004, CE & SGS & TUV
Company address	Tianhe District, Guangzhou, Guangdong, China
Nearby transportation (less than one hour)	Baiyun airport
	Guangzhou east railway station
	Canton Fair Pazhou exhibition hall
	Guangzhou railway station
Golab famous customer	1)Novartis in Pakistan
	2)Dutch Health BV in Netherlands
	3)Sustin Air Systems in USA
	4)Herbelife in China



Welcome your inquiry,we will reply u within 12 hour.

All steel structure
Worktops:	20mm thick ceramic (black) countertops (edge thickened around the sink countertops) or customized.
Cabinetbody:	1.0mm thickness of cold-rolled steel sheet production
Detachable back panel:	1.0mm thickness of cold-rolled steel sheet production
Cabinet doors& drawers:	1.0mm thickness of cold-rolled steel sheet production, surface by the epoxy resin powder coating.
Hinge:	175 degree  open type high quality hinge.
Slideway:	Self-closing three section slide rail, no noise.
Handle:	C-frame alloy with chrome-plating handle

FAQ

2.What's Huilv main products?

 We supply laboratory furniture, fume hood, pass box, air shower, emergency shower, clean bench,laminar flow cabinet,etc.

3.How about the sample of Huilv product?

We could send you the samples but the freight and the sample are charged.

4.How about Huilv payment term?

T/T & L/C &Western Union(40% deposit, the balance before shipment)

5.How about Huilv delivery time?

Within 7-15 workdays after receiving deposit.

6.How about Huilv validity of quotation ?

Usually 30 days as the shipping freight and exchange rate can be fluctuant.

7.What is the shipping port?

FOB to Guangzhou or Shenzhen Port,China(also can ship according to customers' request)

8.How about the package?

Bubble film + Cottom +Standard export wooden case or as your request.

9.How to inspect the goods?

Products will checked by our QC staff frist, then our proejct manager. Client can come and check bythemselves or third party check is available.

Choose Huilv choose professional and profit-Win-Win business!!!
