| Prod Model: |
AR9D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Brand: |
Tibox |
Product Description

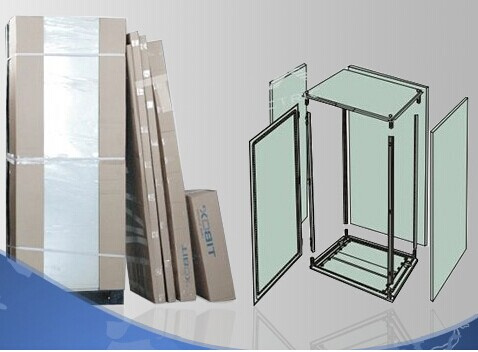

AR9K metal floor stand cabinets comprise a 9-folded profile structure, un-welded at the top and bottom of the frame, with removable screws in versatility with the cabinet. Thermosetting epoxy polyester powder coating in textured
RAL7032 or PAL7035
Supply include:
9-folded profiles 4pcs/set(model: F): Hinged uprights,
Panel mounts and locking elements assembled.
Topcover and base(Model: TCB): Welded top frame,
Welded base, mounting plate fixing support.
Back panel and front door(Model: FBD): Plain door with lock, plain back panel.
Galvanised mounting plate(Model: MP)
Side panels(Model: ARSP): 2pcs side panels with accessories
|
|
W H D(mm) |
model |
PROFILES |
TOP COVER+BASE |
FRONT DOOR + BACK PANEL |
FRONT DOOR |
BACK PANEL |
MOUTING PLATE |
SIDE PANELS |
|
1 |
600x1200x400 |
AR9 126/4K |
F12 |
TCB 64 |
FBD 126 |
FD 126 |
BD 126 |
MP 126 |
ARSP 124 |
|
2 |
600x1200x800 |
AR9 126/8K |
F12 |
TCB 68 |
FBD 126 |
FD 126 |
BD 126 |
MP 126 |
ARSP 128 |
|
3 |
800x1200x600 |
AR9 128/6K |
F12 |
TCB 86 |
FBD 128 |
FD 128 |
BD 128 |
MP 128 |
ARSP 126 |
|
4 |
600x1400x400 |
AR9 146/4K |
F14 |
TCB 64 |
FBD 146 |
FD 146 |
BD 146 |
MP 146 |
ARSP 144 |
|
5 |
600x1400x800 |
AR9 146/8K |
F14 |
TCB 68 |
FBD 146 |
FD 146 |
BD 146 |
MP 146 |
ARSP 148 |
|
6 |
800x1400x600 |
AR9 148/6K |
F14 |
TCB 86 |
FBD 148 |
FD 148 |
BD 148 |
MP 148 |
ARSP 146 |
|
7 |
600x1600x600 |
AR9 166/6K |
F16 |
TCB 66 |
FBD 166 |
FD 166 |
BD 166 |
MP 166 |
ARSP 166 |
|
8 |
800x1600x600 |
AR9 168/6K |
F16 |
TCB 86 |
FBD 168 |
FD 168 |
BD 168 |
MP 168 |
ARSP 166 |
|
9 |
600x1800x500 |
AR9 186/5K |
F18 |
TCB 65 |
FBD 186 |
FD 186 |
BD 186 |
MP 186 |
ARSP 185 |
|
10 |
600x1800x800 |
AR9 186/8K |
F18 |
TCB 68 |
FBD 186 |
FD 186 |
BD 186 |
MP 186 |
ARSP 188 |
|
11 |
800x1800x500 |
AR9 188/5K |
F18 |
TCB 85 |
FBD 188 |
FD 188 |
BD 188 |
MP 188 |
ARSP 185 |
|
12 |
1000x1800x400 |
AR9 1810/4K |
F18 |
TCB 104 |
FBD 1810 |
FD 1810 |
BD 1810 |
MP 1810 |
ARSP 184 |
|
13 |
1000x1800x600 |
AR9 1810/6K |
F18 |
TCB 106 |
FBD 1810 |
FD 1810 |
BD 1810 |
MP 1810 |
ARSP 186 |
|
14 |
300x2000x600 |
AR9 203/6K |
F20 |
TCB 36 |
FBD 203 |
FD 203 |
BD 203 |
MP 203 |
ARSP 206 |
|
15 |
400x2000x500 |
AR9 204/5K |
F20 |
TCB 45 |
FBD 204 |
FD 204 |
BD 204 |
MP 204 |
ARSP 205 |
|
|
W H D(mm) |
Model |
PROFILES |
TOP COVER+BASE |
FRONT DOOR + BACK PANEL |
FRONT DOOR |
BACK PANEL |
MOUTING PLATE |
SIDE PANELS |
|
1 |
600x2000x400 |
AR9 206/4K |
F20 |
TCB 64 |
FBD 206 |
FD 206 |
BD 206 |
MP 206 |
ARSP 204 |
|
2 |
600x2000x600 |
AR9 206/6K |
F20 |
TCB 66 |
FBD 206 |
FD 206 |
BD 206 |
MP 206 |
ARSP 206 |
|
3 |
800x2000x400 |
AR9 208/4K |
F20 |
TCB 84 |
FBD 208 |
FD 208 |
BD 208 |
MP 208 |
ARSP 204 |
|
4 |
800x2000x600 |
AR9 208/6K |
F20 |
TCB 86 |
FBD 208 |
FD 208 |
BD 208 |
MP 208 |
ARSP 206 |
|
5 |
1000x2000x400 |
AR9 2010/4K |
F20 |
TCB 104 |
FBD 2010 |
FD 2010 |
BD 2010 |
MP 2010 |
ARSP 204 |
|
6 |
1000x2000x600 |
AR9 2010/6K |
F20 |
TCB 106 |
FBD 2010 |
FD 2010 |
BD 2010 |
MP 2010 |
ARSP 206 |
|
7 |
600x2200x600 |
AR9 226/6K |
F22 |
TCB 66 |
FBD 226 |
FD 226 |
BD 226 |
MP 226 |
ARSP 226 |
|
8 |
800x2200x600 |
AR9 228/6K |
F22 |
TCB 86 |
FBD 228 |
FD 228 |
BD 228 |
MP 228 |
ARSP 226 |
|
9 |
1000x2200x600 |
AR9 2210/6K |
F22 |
TCB 106 |
FBD 2210 |
FD 2210 |
BD 2210 |
MP 2210 |
ARSP 226 |
|
10 |
1000x1800x400 |
AR9D 1810/4K |
F18/D |
TCB 104 |
FBD 1810 |
FD 1810 |
BD 1810 |
MP 1810 |
ARSP 184 |
|
11 |
1000x1800x600 |
AR9D 1810/6K |
F18/D |
TCB 106 |
FBD 1810 |
FD 1810 |
BD 1810 |
MP 1810 |
ARSP 186 |
|
12 |
1200x1800x500 |
AR9D 1812/5K |
F18/D |
TCB 125 |
FBD 1812 |
FD 1812 |
BD 1812 |
MP 1812 |
ARSP 185 |
|
13 |
1000x2000x500 |
AR9D 2010/5K |
F20/D |
TCB 105 |
FBD 2010 |
FD 2010 |
BD 2010 |
MP 2010 |
ARSP 205 |
|
14 |
1000x2000x800 |
AR9D 2010/8K |
F20/D |
TCB 108 |
FBD 2010 |
FD 2010 |
BD 2010 |
MP 2010 |
ARSP 208 |
|
15 |
1200x2000x500 |
AR9D 2012/5K |
F20/D |
TCB 125 |
FBD 2012 |
FD 2012 |
BD 2012 |
MP 2012 |
ARSP 205 |
