| Prod Model: |
WL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Load Capacity: |
250-500kg |
| Lifting Height: |
1m to 6m |
| Platform Size: |
1.2*1.0m or as Per Your Requirement |
| Structure: |
Vertical |
| Driving System: |
Hydraulic |
| Control Device: |
Post, Remote and Platform Control |
| Power: |
AC |
| Quanlity Warranty: |
18month |
| Failure Rate: |
Extremely Low |
| Delivery Time: |
15days |
| Application: |
Home |
| Carrying Capacity: |
Light Level |
| Driven Type: |
DC |
| Running Mode: |
Stationary |
| Feature: |
Spillover Valve |
Product Description

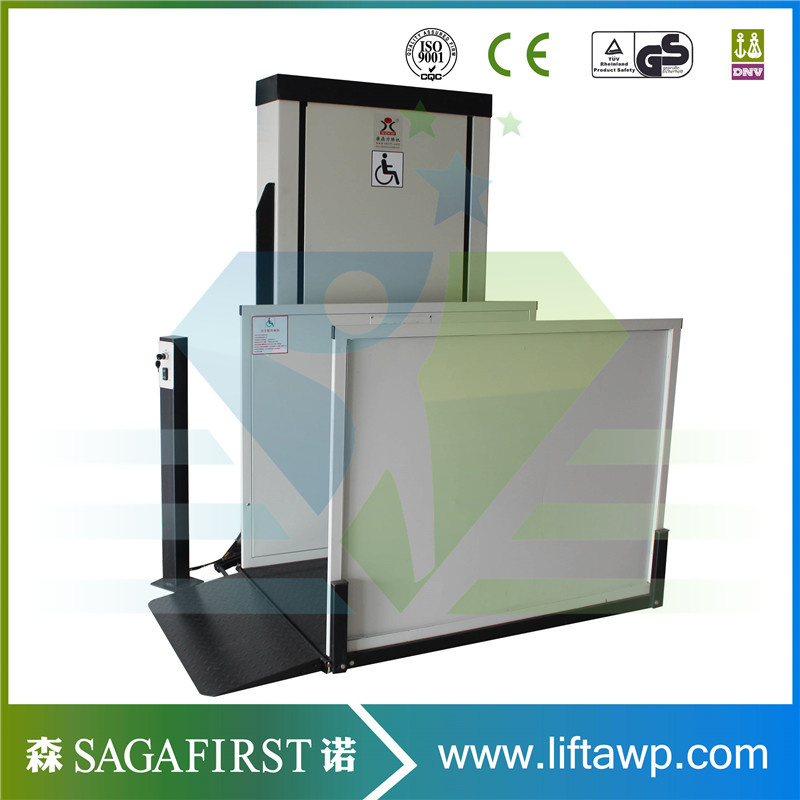

200kg stair outdoors vertical domestic disable lift table
Vertical Wheelchair Lift is specially designed for the disable, elderly people, and patient. Vertical wheelchair lift can be installed indoors, outdoors, public places hospitals and son on. Simple structure make wheelchair lift very easy to use and maintain.
Three kinds of control model for choice. Control panels on the platform: operator can control lifting and lowering on the platform. Mast control panels is installed on each floor. Remote control is also available for much more convenient control.
Wheelchair lift surface treatment adopts spraying plastics with great anti-corrosion performance. Stainless steel material is also available.
Introduction:
1.Suitable for indoor or outdoor applications and platform height from 1m to 6m available.
2.It can be installed directly into the ground without architectural supporting pits.
3.Platform Control System, Post Control System and Remote Control System all available.
4.Emergency Descending System
5.Compact structure make it widely used in narrow and small space.
Specification:
| Model | | WL2510 | WL2515 | WL2520 | WL2525 | WL2530 | WL2535 | WL2540 | WL2550 | WL2560 |
| Load Capacity | kg | 250 |
| Lifting Height | mm | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 | 6000 |
| Platform Size | mm | 1200*1000 |
| Entry & Exit Mode | ° | 90/180 |
| Package Size | mm | 1600x1300x1550 | 2100x1300x1550 | 2800x1300x1550 | 3300x1300x1550 | 4000x1300x1550 | 4500x1300x1550 | 5000x1300x1550 | 6000x1300x1550 | 7000x1300x1550 |
| Minimum Height | mm | 60 |
| Speed | mm/s | 60 |
| Control Voltage | V | 24 |
| Power Output | Kw | 2.2 |
| Power Input | | 240V; 50HZ; 1-phase(customized) |
| Drive System | | Hydraulic |
| Working temperature | °C | -10°~60°( under low temperature can choose antifreeze hydraulic oil) |

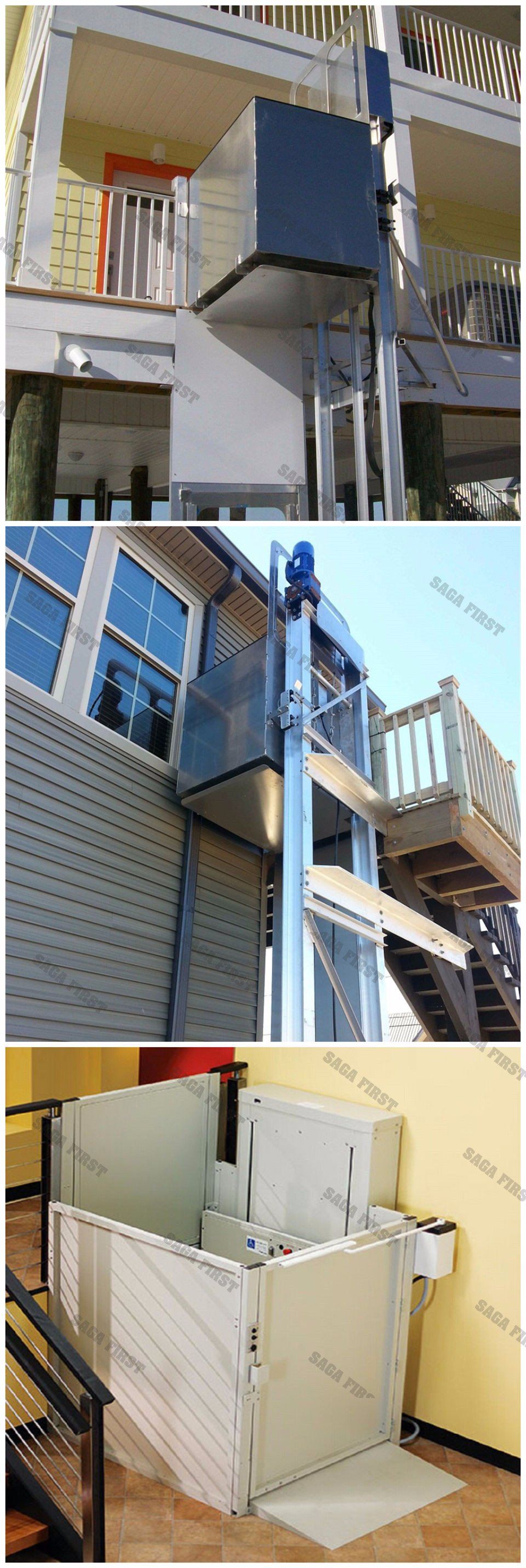

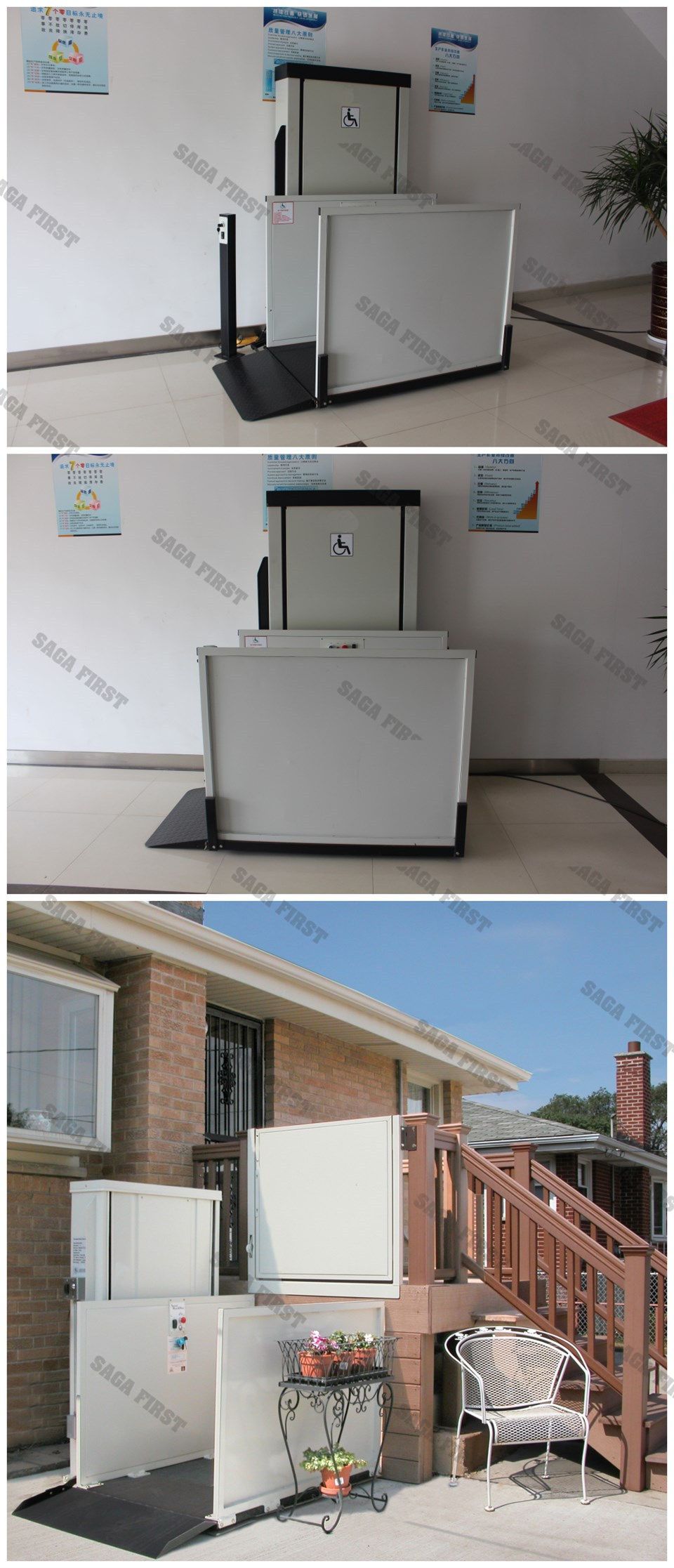

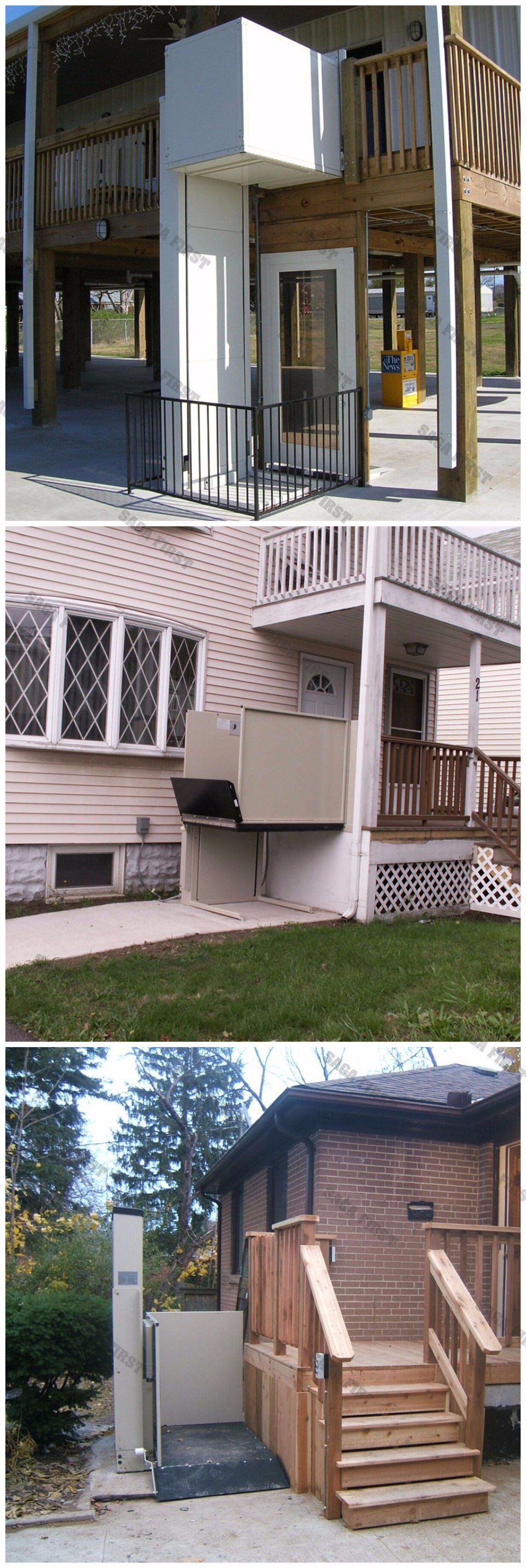

Pictures for Your Review:
Our Service:
1.We can design the customerized disable wheelchair lift as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the disable wheelchair lift break down to help you repair.
6.Parts of disable wheelchair lift can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The disable wheelchair lift adopt most of the common parts of hardware.You can buy the parts in your local hardware market.
2.How can customer repair the disable wheelchair lift.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it breaks down within one year,we can send the parts free of charge to you.
Certificate:ISO and CE

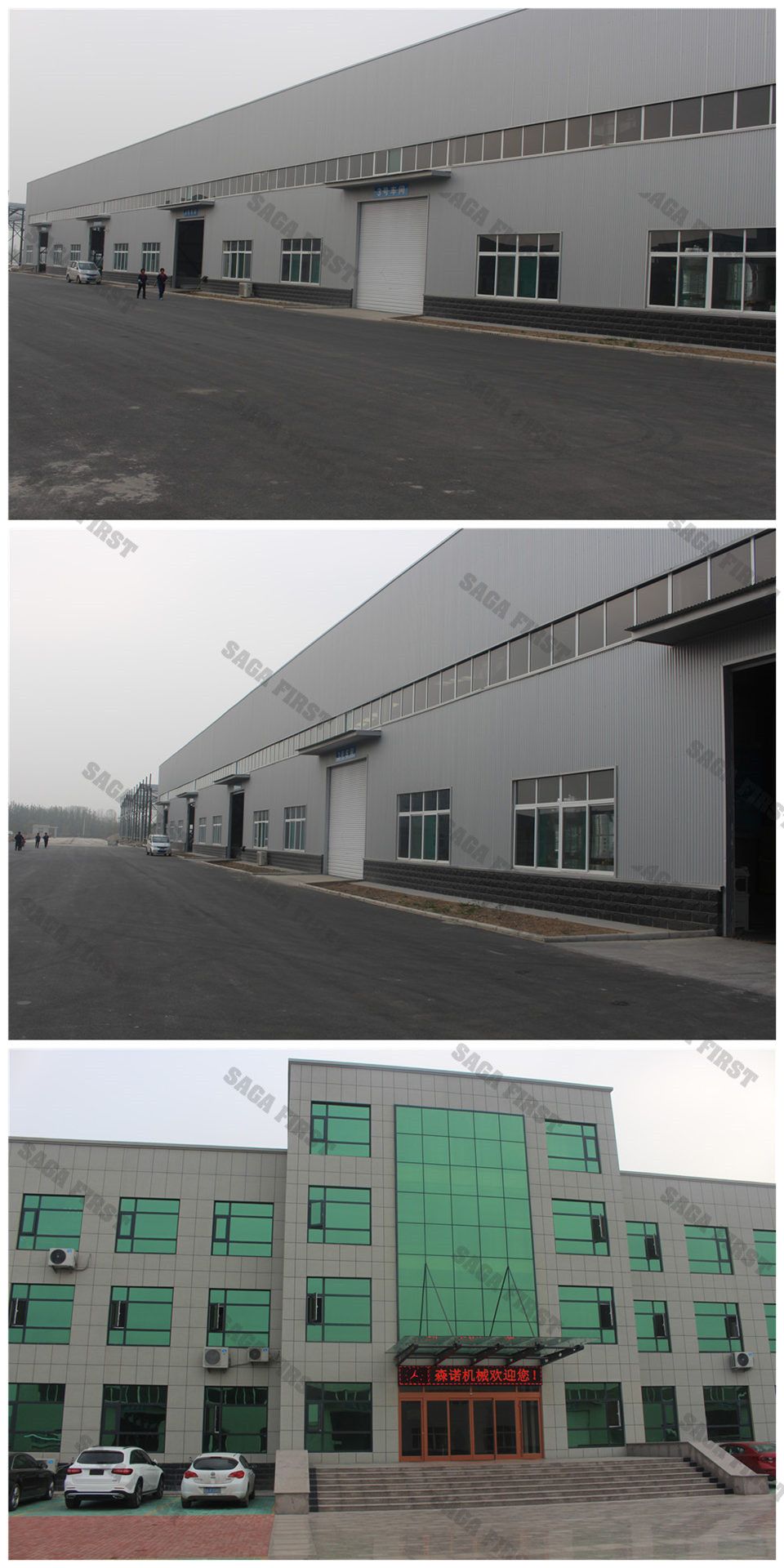

Factory show:
