| Prod Model: |
V10-3288B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Waterproof CCTV Inspection Camera: |
Fixed Focus Lens Camera |
| Price: |
EXW/FOB Price |
| MOQ: |
1 Units |
| Assurance: |
2 Years |
| Camera Housing Material: |
Aluminum |
| Camera Diameter: |
50X88mm |
| Cable Diameter: |
9mm |
| Cable Material: |
Fiberglass |
| Cable Length: |
60m to 120m |
| Type: |
CCTV Camera |
| Sensor: |
CCD |
| Style: |
Bullet Camera |
| Feature: |
High Definition |
| Technology: |
Infrared |
| Horizontal Resolution: |
600tvl |
| Kind: |
Fixed Focus |
Product Description

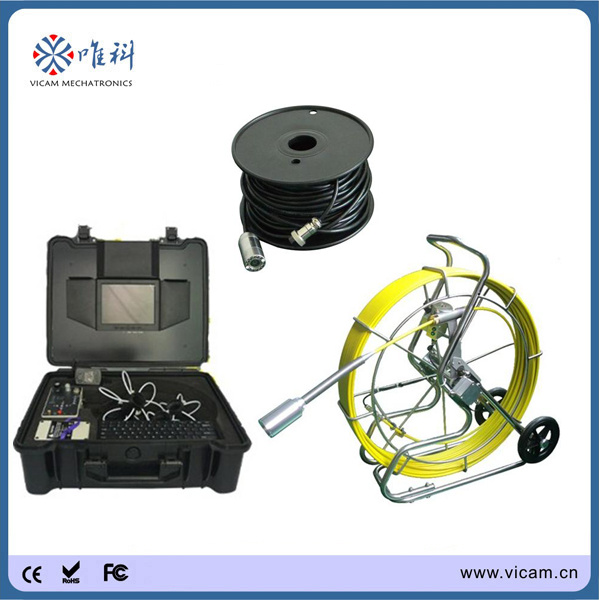

2 In1 Sewer Inspection/Sewer Detection system
1. Heavy-duty CCTV Sewer Inspection kit
Big Camera Head
* CCD color 600 TV line
* Camera head size Φ 50 X 88mm for pipe Φ 100mm and up
* Image sensor 1/3 inch
* Self-levelling picture
* Field of view 90°
* Camera lighting 18 white LEDs
* Camera lens cover material sapphire glass
Stand Cable Reel
* Havey-duty stainless steel Cable Reel size 770 X 830 X 360 mm
* 120m Φ 9 mm fiberglass rod push cable ( 60m optional)
* Counter device on the cable reel error rate less than 0.1%
2. Handle inspection kit
Camera Head
* Stainless steel bullet waterproof camera Φ 23 X 45mm
* 30m soft cable
* handle cable reel
* for underwater inspection
Monitor
*10 inch HD LED monitor
* Power supply DC 12V
DVR Control Box
* DVR power supply 12V DC work current 200mA
* Storage medium SD card ( 8G SD card included )
* Li-ion Battery pack power supply (18650 X 9 PCS 6600mAh)
* Charging time 5 hours, working time 6 hours
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)
Unit control carrying case
* ABS engineering carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
Compang information
Backed by Cyberia SAS and Shenzhen Institutes of Advanced Technology
Vicam Mechatronics Co. Ltd is located in Shangxue Industrial Park in Shenzhen, south China, specializing in the design, manufacture and assembly of video inspection systems. We have introduced international advanced technology, and designed and produced various video inspection cameras. Most of our products sell well in Europe, the US, Australia, the Middle East, South Africa and South America. In the process of development, we have got very important technical support from Cyberia SAS and Shenzhen Institutes of Advanced Technology.
Can be Used in Complex Applications and Hazardous Areas
Our main product range includes portable pipeline video inspection systems, industrial and city underground pipe video inspection systems, special video inspection cameras and CCTV robots for complex applications and hazardous area rated environments.
Our tenets are to rely on the advanced technology, to meet the global market demand, and to provide good quality products and good services to all our customers.
Contact Us Today
For more information about our products and services, visit our Made-in-China Online showroom and then contact me.
F&Q
1. Payment
What are the terms of payments you offer?
Payment of the goods should be sent in USD or RMB on the basis of goods Values. We accept payment of T/T, Western Union, PayPal and cash only
2. Shipment
How long will it take to deliver goods?
We will deliver the goods within2 to 3 days for spare parts, completed goods maybe take a little more times to test and prepare, and we will deliver the goods within the deadline which both parties agreed.
What kind of packaging you offer?
We will pack the goods well with exporting packages to make sure all goods in a good condition during storage and delivery.
What kind of transportation methods you offer?
A. We always use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies. But if buyers provide us accounts of their own, transportation fee paid by such accounts are also welcomed.
B. We also can transport by air and sea for the goods with large quantity if you can provide the right airport or harbor name, and we will confirm freight with buyers' prior delivery.
What Locations can you ship to?
We can send the goods to the whole world if the express way can deliver it.
|
CCD Aluminum camera head data |
|
camera size |
Φ50mm×89mm |
|
camera housing material |
aluminum |
|
camera window |
sapphire glass |
|
connecting type |
golden pins slip-ring connection |
|
sensor |
1/3" color CCD |
|
field of view |
90° |
|
resolution |
PAL:720H×576V NTSC: 720H×480V; |
|
horizontal definition |
420TVL |
|
picture |
Self-leveling |
|
S/N rate |
>48dB(AOC on) |
|
electronic shutter |
1/50(1/60) - 1/100000 s |
|
sensitivity |
0.01Lux |
|
video output |
1.0 Vp-p / 75Ω |
|
lighting |
18 high intensity white LED, brightness adjustable |
|
waterproof |
yes, class IP68 |
|
working voltage |
DC 12V |
|
working current |
63mA Max (LED Max: 120mA) |
|
operating temperature |
-10ºC~60ºC |
Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.
Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.
Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.
We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
