| Prod Model: |
JK-1002A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Loading: |
150 Kgs |
| Thickness: |
1.2mm |
| Delivery Time: |
20-25 Days |
| Loading Port: |
Ningbo |
| Certificate: |

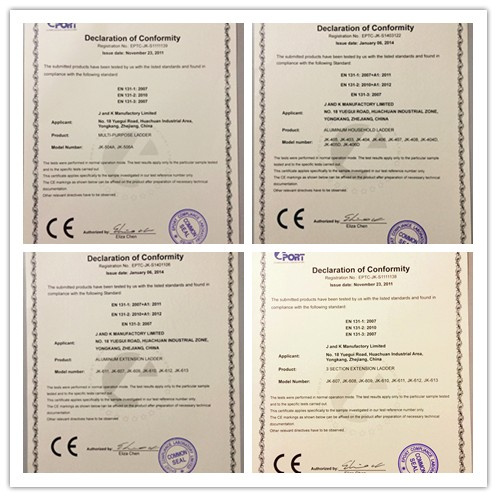

CE EN131 |
| Payment Term: |
TT L/C |
| Weight: |
7.1kgs |
| Export Markets: |
Global |
| Type: |
Single Straight Ladders |
| Pedal Number: |
8-Step Ladder |
| Function: |
Telescopic Ladder |
| Material: |
Aluminum |
| Loading: |
150kg |
| Insulation: |
Non-Insulated |
| Color: |
White |
Product Description

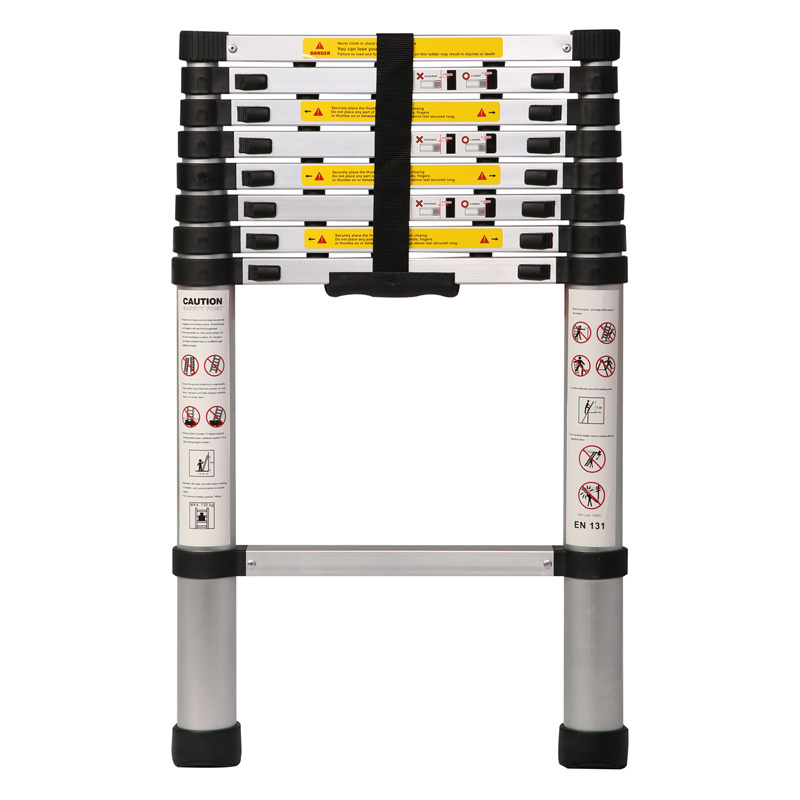

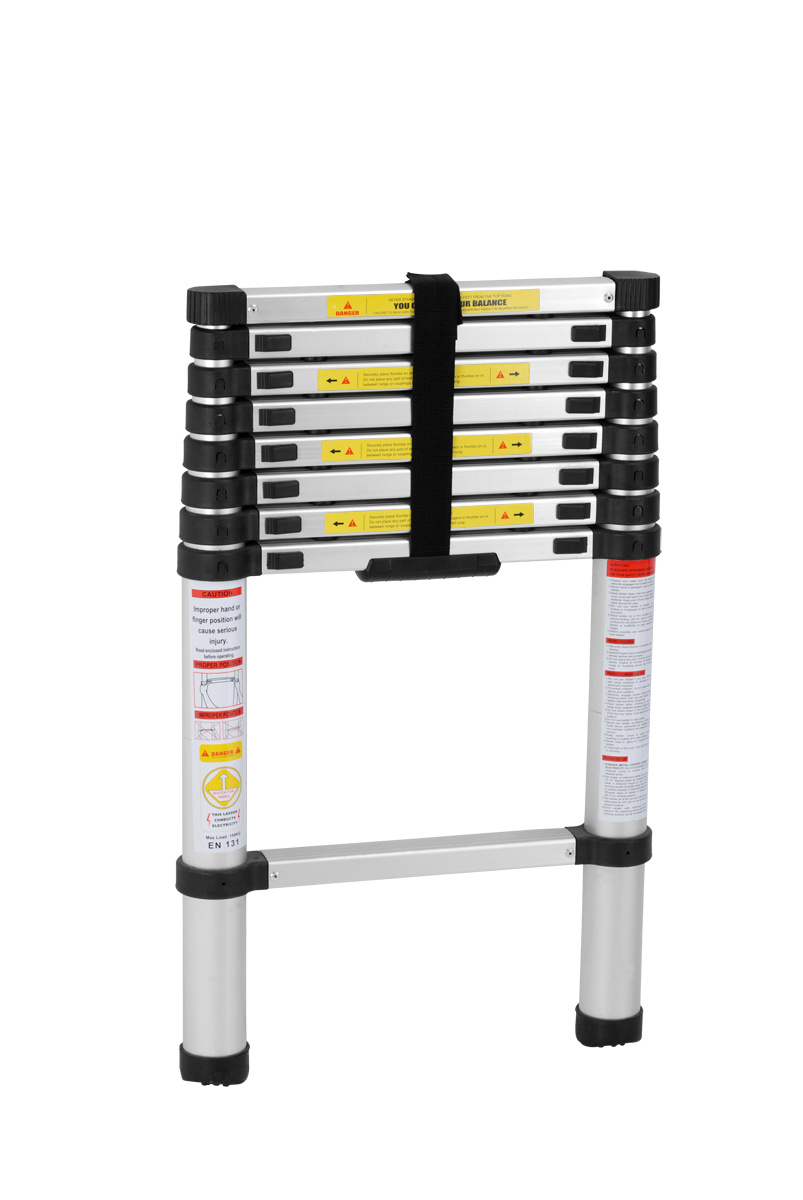

2.6m multi-purpose telescopic ladder
1. Open size: 260X49X9.5cm
2. Distence between 2 steps: 30 cm
3. Total steps: 7steps
4. Top step to groud: 380cm
5. Max load: 150kgs
6. Aluminium mode: 6063
7. Thickness of Aluminium: 1.3mm
8. N. W/G. W.: 7.0 /8.0kgs
9. Qty/20': 1100PCS
Qty/40'HQ: 2200PCS
We also can make 2.0M, 2.6M, 2.9M, 3.2M, 3.8M telescopic ladders.
Aluminum telescopic ladder EN131/SGS | MODEL | Description | Max load | N.W. | G.W. | 1*20' | 1*40'HQ | MOQ | Packing Size |
| JK-1001A | Extension length: 2.0M(6steps) | 150Kg | 5.0KGS | 6.0KGS | 1060PCS | 2680PCS | 200PCS | 70*47*7.5CM |
| Folding height:69CM |
| Spacing between rungs:30CM |
| Aluminum mode:6063 |
| Thickness of Aluminum:1.3MM |
| JK-1002A | Extension length: 2.6M(8steps) | 150Kg | 7KGS | 8KGS | 800PCS | 2060PCS | 200PCS | 76*47*8CM |
| Folding height:75CM |
| Spacing between rungs:30CM |
| Aluminum mode:6063 |
| Thickness of Aluminum:1.3MM |
| JK-1002A-2.9 | Extension length: 2.9M(9steps) | 150Kg | 8KGS | 9KGS | 760PCS | 2040PCS | 200PCS | 79*48*9CM |
| Folding height:78CM |
| Spacing between rungs:30CM |
| Aluminum mode:6063 |
| Thickness of Aluminum:1.3MM |
| JK-1003A | Extension length: 3.2M(10steps) | 150Kg | 9.0KGS | 10.0KGS | 680PCS | 1680PCS | 200PCS | 82*50*10CM |
| Folding height:81CM |
| Spacing between rungs:30CM |
| Aluminum mode:6063 |
| Thickness of Aluminum:1.3MM |
| JK-1004A | Extension length: 3.8M(12steps) | 150Kg | 10.8KGS | 12.0KGS | 650PCS | 1640PCS | 200PCS | 88*50*10CM |
| Folding height:87CM |
| Spacing between rungs:30CM |
| Aluminum mode:6063 |
| Thickness of Aluminum:1.3MM |
Specifications:1. Clean touch anodized finish.
2. Large non-slip feet.
3.150kg work load capacity.

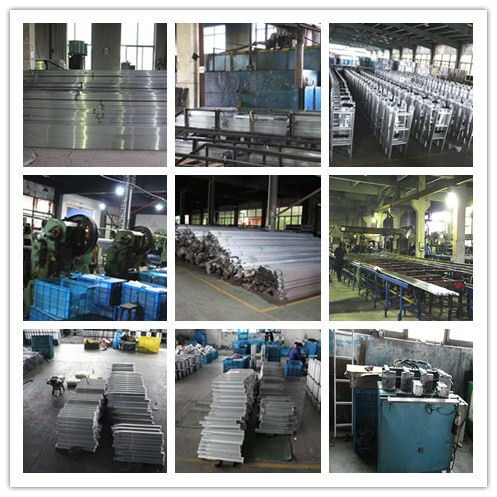

Founded in 2007, J and K Industrial LIMITED has been specializing in producing Telescopic Ladder,
Multi-purpose Ladder, Household Ladder, Extension Ladder, Working Platform and Scaffolding Ladder. With more than 5 years experience, advanced equipment and machinery, and over 200 skillful workers, we are capable of producing over 6000 PCS Telescopic Ladder, 8000 PCS of Multi-purpose Ladder, 10.000 PCS of household ladders and over 5.000 PCS of extension ladders monthly.
Our R&D team of engineers and technicians offers 1 full range of technological services. They are
Devoted to providing products that serve beyond consumer satisfaction. We bring our strict quality
Control procedure into effect to guarantee our superior and stable quality. With competitive price,
Excellent service, prompt delivery and powerful energy output, our products enjoy good reputation among customers from all EU countries.
Welcome to visti our website and choose your interesting tiem.
www.jkladder.com
