19'' Server Network Cabinet for Cabling System

19'' Server Network Cabinet for Cabling System
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: TN-002
Color: Ral7035, Ral9004, etc
Logo: Silk Print, Aluminum Sticker, Rubber Sticker
Packing Style: Assembled or Dis-Assembled
Shipping: Sea, Air, Train, Truck
Material: SPCC Cold Rolled Steel
Certificate: Ce. RoHS. SGS
Type: Network Cabinet
Usage: Network Integration System
Installation: Vertical
Fan Number: Two
Certification: GS
Condition: Used
Capacity: 12u~47u

Product Description

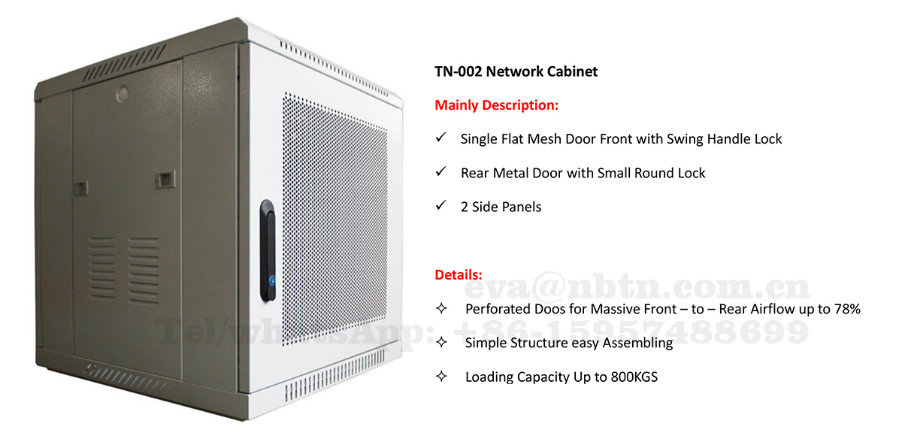

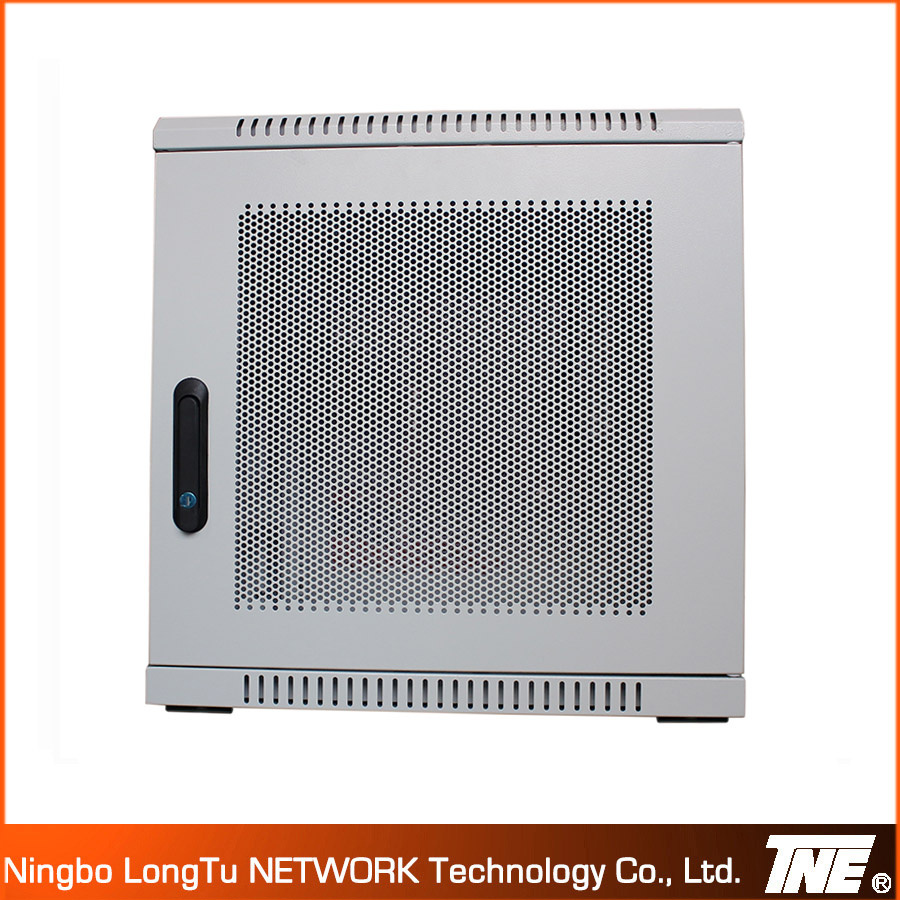

19'' Server Network Cabinet for Cabling System


Description

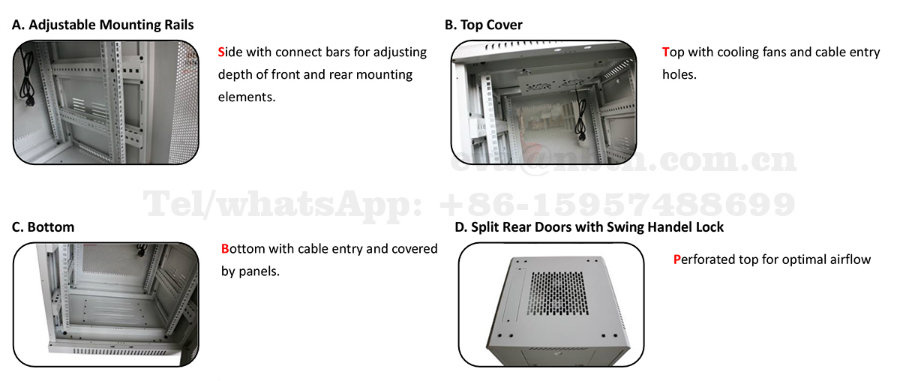

> Front Temper Glass Door (Glass Thickness: 5mm)

> Rear Flat Metal Door  ( Mesh door Optional)

> Top and bottom with Cable Entry holes

> Standard Accessory include: fans, castors, and feet.


Standard
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard

Material
High grade cold rolled steel.
Thickness

Mounting profile: 2.00mm others: 1.2--1.5mm

Loading Capacity
Static Loading: 800kgs

Surface finish
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting

Degree of Protection
IP20

Body Color
RAL7035, RAL9004 etc.

Optional Accessory
* Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
* 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
* 1U, 2U support board
* Vertical Cable manager
* 19'' Power distribution unit(PDU)
* 19'' Blanking plate 1U, 2U, 4U
* Heavy duty castor, Heavy duty castor with braker
* Optional lock for side panels
* Earth kit
* And so on...

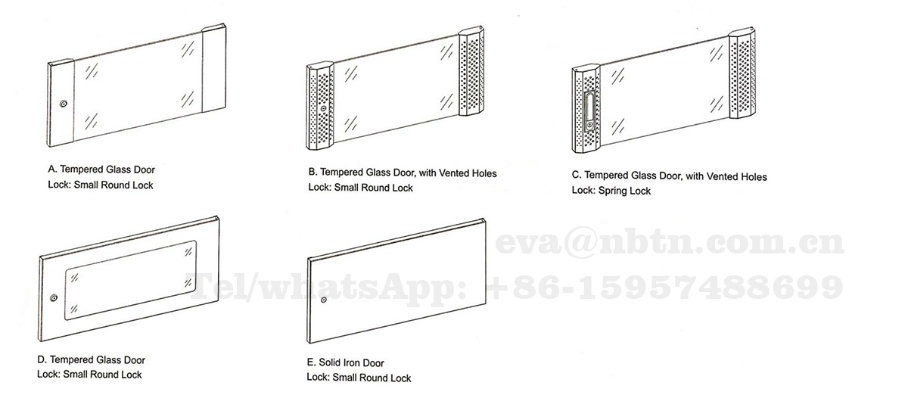

Optional Front and Rear Doors


Size Form
Model No.Capacity(U)Width(mm)Depth(mm)Height(mm)

TN-002

18U600mm/800mm600mm/800mm/1000mm988mm

TN-002

22U600mm/800mm600mm/800mm/1000mm1166mm

TN-002

27U600mm/800mm600mm/800mm/1000mm1388mm

TN-002

32U600mm/800mm600mm/800mm/1000mm1610mm

TN-002

37U600mm/800mm600mm/800mm/1000mm1833mm

TN-002

42U 600mm/800mm600mm/800mm/1000mm2055mm

TN-002

45U600mm/800mm600mm/800mm/1000mm2188mm

TN-002

47U 600mm/800mm 600mm/800mm/1000mm
2277mm



FAQ

1)    What is your Payment term?
---TNE accept T/T, L/C, Western Union.

2)    What is your Trade term?
---TNE do EXW, FOB, CNF, CIF terms.

3)    What is the Loading Port?
--- Ningbo or Shanghai port.

4)    What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.

5)    What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market,  international safety standard certificate is also be provided.


Ningbo Longtu Network Technology Co., Ltd. ( Formly named Ningbo Taina Electronics Compay) own a Brand of "TNE" Mainly offer 19'' network cabinets, 19'' server racks, wall mount cabinet and customized Products, built for your specific requirement.

> Year 2003 TNE Founded

> Year 2006 TNE gains Export and Import Right

> Year 2010 TNE Moved the factory to Guanhaiwei East Industrial Zone, Ocupy 6066 Square Meter.

> Year 2014 TNE Changed the name from NINGBO TAINA ELECTRONICS COMPANY to NINGBO LONGTU NETWORK TECHNOLOGY Co., Ltd. Pure Producing Network Cabinet.

TNE have some stable partner From USA, UK, France, Austrial, Egypt, and So on.

TNE mainly Products as below:

Network cabinet

Server Rack

Wall Mount Cabinet

Open Frames

PDU...

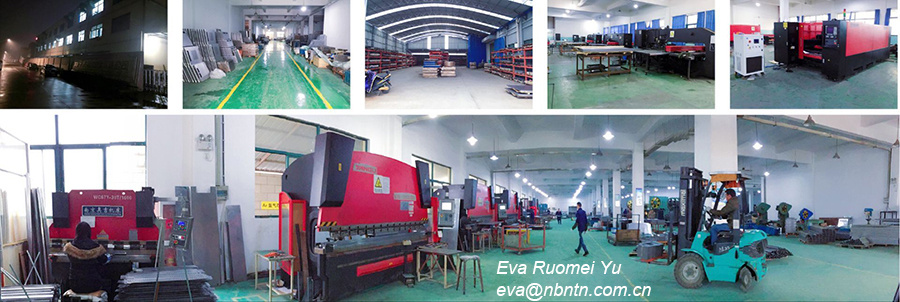

TNE Machinery:

CNC Punching Machine: 4 sets

Laser Cutting Machine: 2 sets

Bending Machine: 11 sets

And other small Machines...

TNE owned Painting Line with Environment evaluation certificate

Welcome to contact with us to start the business in Year 2016! !
