| Prod Model: |
WD2 |
| Type: |
Smart Protection Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Vertical |
| Capacity: |
10U-20U |
| Certification: |
GS |
| Condition: |
New |
| Fan Number: |
1-2 |

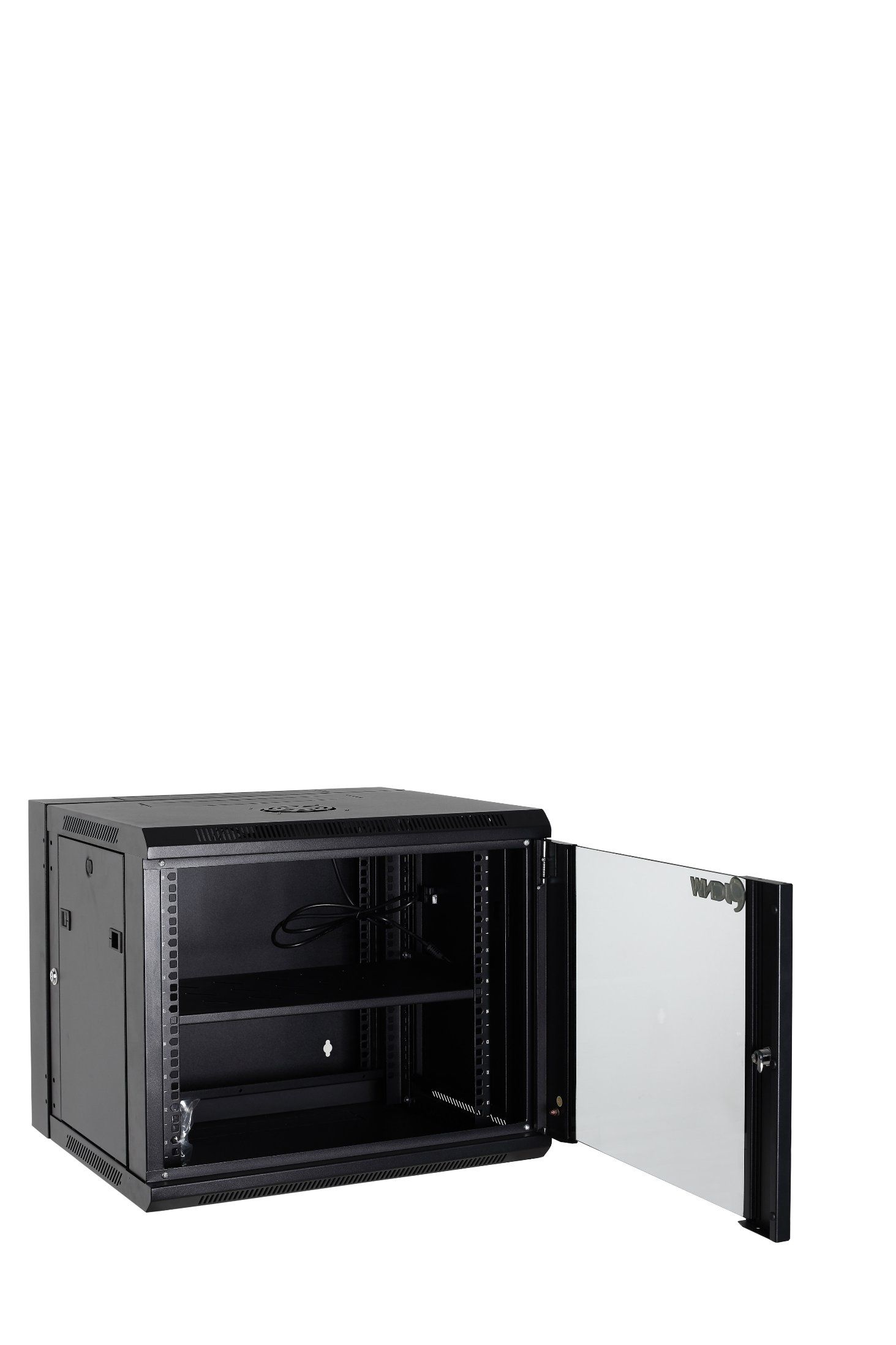

Product Description
Product parameters :
Standard comply with ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard;
Material:SPCC quality cold rolled steel;
Thickness: 1.2mm;
Tempered glass;
Thickness:5mm
Loading Capacity:Static loading: 60kg
Degree of protection:IP20
Surface finish:Degreasing,Pickling,Phosphating,Powder Coated
Product specification:4U-18U
Width:600mm
Depth:550mm,600mm
| Model No. | Capacity(U) | Width*Depth(mm) | Model No. | Capacity(U) | Width*Depth(mm) |
| WD2-6504 | 4 | 600*550 | WD1-6604 | 4 | 600*600 |
| WD2-6506 | 6 | 600*550 | WD1-6606 | 6 | 600*600 |
| WD2-6509 | 9 | 600*550 | WD1-6609 | 9 | 600*600 |
| WD2-6512 | 12 | 600*550 | WD1-6612 | 12 | 600*600 |
| WD2-6515 | 15 | 600*550 | WD1-6615 | 15 | 600*600 |
| WD2-6518 | 18 | 600*550 | WD1-6618 | 18 | 600*600 |
| NO. | Component Name | Quantity | Unit | Material Specification | Surface Finish | Note |
| 1 | Top cover | 1 | pc | SPCC cold rolled steel T1.2 | Powder coated | -- |
| 2 | Bottom panel | 1 | pc | SPCC cold rolled steel T1.2 | Powder coated | -- |
| 3 | Frame | 2 | pc | SPCC cold rolled steel T1.2 | Powder coated | -- |
| 4 | Mounting profile | 4 | pc | SPCC cold rolled steel T1.5 | Powder coated | -- |
| 5 | Side panel | 2 | pc | SPCC cold rolled steel T1.2 | Powder coated | Removable steel door |
| 6 | Front door | 1 | pc | Tempered glass 5mm | Powder coated | -- |
| 7 | Lock | 1 | pc | Galvanization | Powder coated | -- |
| 8 | M6 b-head screw and M6 square nut | 10 | pc | Steel | Color zinc coated | -- |
| 9 | Allen wrench | 1 | pc | Steel | Black | -- |
| 10 | Cable entry plate | 3 | pc | SPCC cold rolled steel T1.2 | Powder coated | -- |
| 11 | Back box | 1 | pc | SPCC cold rolled steel T1.2 | Powder coated | -- |
Optional Accessories:
Removable side panel can add the lock; fixed shelf
Various of front door
Ornament strip for the glass side
Brush for cable entry and other design
Smoked color glass
Ningbo Latitude Communication Equipment Co., Ltd was established in 2002, is a professional manufacturer specialized in server rack, network rack, outdoor cabinet, wall cabinet, all kind of power distribution Unit(PDU) and other communication products. Our factory is located at the south bank of Hangzhou Bay Bridge, nearby the Ningbo port(one of most big port in the world), which will be easy to transport our products to the whole world.
For over years, we are always devoting ourselves to research, develop, design and manufacture the products. Striving to maintained a steady growth in the extremely competitive market, we have the world's advanced equipment including TruLaser cutting CNCmachine, TruPunch Punching CNC machine, AMADA Punching and Bending CNC equipment, WAGNER spraying paining line and other equipment. We use ERP order management system, Also have the strict quality control system and Advanced production technology, in order to assure the stable and high quality of products. We got ISO9001: 2008, BV, SGS, TUV, CE, RoHS certification.
We can supply customized service and OEM, ODM products, thanks for choosing our products and believe our cooperation can bring you benefit and value.
