| Price: | US $ 80-380/Piece |
|---|---|
| Min Order: | 20/Piece |
| Pay Type: | T/T,Western Union |
| Prod Model: | SL-SC-D |
|---|---|
| IP Rated: | IP 55 |
| Type: | Network Cabinet |
| Usage: | Network Integration System |
| Installation: | Vertical |
| Fan Number: | Four |
| Capacity: | 20U-30U |
| Certification: | RoHS |
| Condition: | New |
FEATURES:

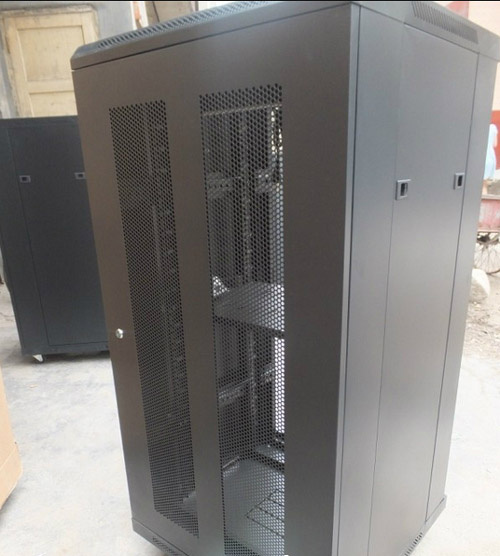

1. Reliable 19" international structure, ARC WAVE type
2. Excellent and elegant front ARC WAVE perforated door with handle lock

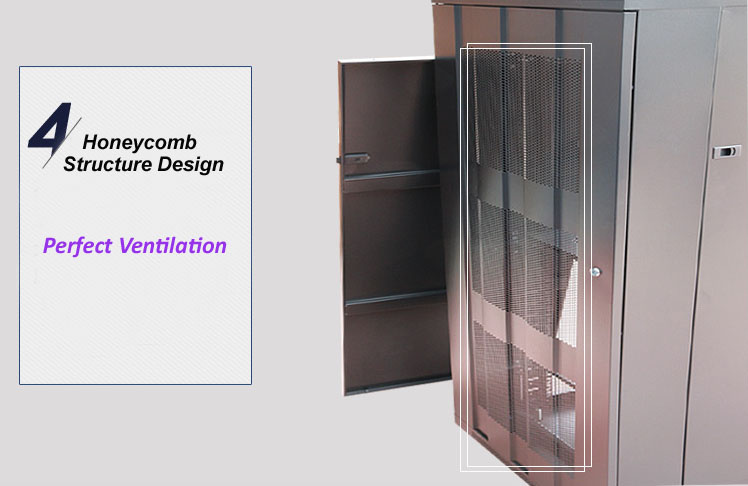

3. Plain door border, Hex mesh door make comprehensive ventilation rate up to 63% ventilation rate
4. Enhance door hinges with 130 degrees operation angle
5. Rear double flat perforated doors with handle lock for operation
6. Whole cabinet 63% ventilation rate
7. Swiveling wheels and adjustable feet can be jointly together
8. Removable side panels with plastic fasteners for easy operation,lock is for options

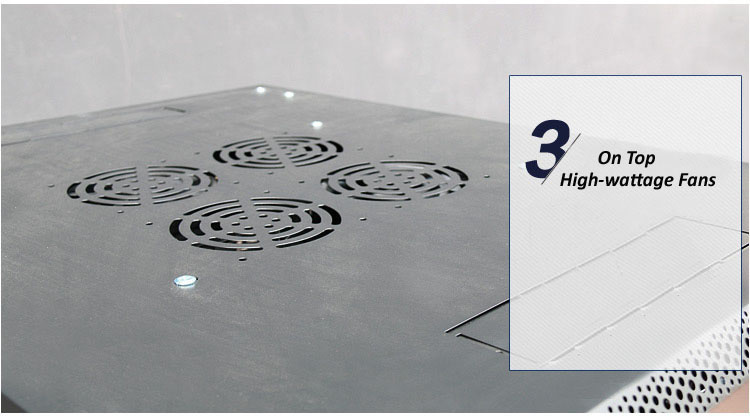

9. Top with 2/4 fans for airflow&cooling, fan size: 120*120*38 mm
10. Top wiring entrances : 2× cable entrance with cover panels
11. Bottom wiring entrances: 4× cable entrance with cover panels
12. Easy-to dismantle doors enable convenient operation from any side of the rack
13. Operation installation of base enables the rack to stay in a fixed position with meeting requirements of data center
14. Linkage rack, full series of operational accessories
15. Sensitive thermostat panel optional
16. Varies specification upon customers' special requirements
Standard size options
Width: 600,800 mm
Depth: 600,800,1000,1200 mm
Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U
Cabinet bearing capacity :800kg
Customized size is available
Flexible packing methods allows for convenient stocking and end user delivery, save 60% volume
Standard and Material:
Comply with ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish: Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Material: SPCC cold rolled steel or EG steel
Thickness: Mounting profile:2.0mm,others:1.20mm to 1.50mm
IP degree: IP-20
Body color: RAL9004(black);RAL7035(grey),etc
NO. | Item | 600 wide | 800wide | Materials | Treatment | Note |
1 | Frame | 2 | 2 | 1.5mm SPCC steel | Powder coating | |
2 | Front Door | 1 | 1 | 1.2mm SPCC steel | Powder coating | Arc wave vented |
3 | Side Door | 2 | 2 | 1.2mm SPCC steel | Powder coating | Removable |
4 | Back Door | 2 | 2 | 1.2mm SPCC steel | Powder coating | Flat vented |
5 | Lock | 2 | 2 | \ | \ | Handle Lock |
6 | Top cover | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
7 | Fan unit | 1 | 1 | 0.8mm SPCC steel | Powder coating | |
8 | Ac fan | 2 or 4 | 2 or 4 | \ | \ | D>800,4 pcs |
9 | Fan power cord | 1 | 1 | \ | \ | L=1.5 to 2.0M |
10 | Bottom panel | 1 | 1 | SPCC T=1.2 | Powder coating | |
11 | Mounting angle | 6 | 6 | SPCC T=1.5 | Powder coating | H≤27U, 4pcs |

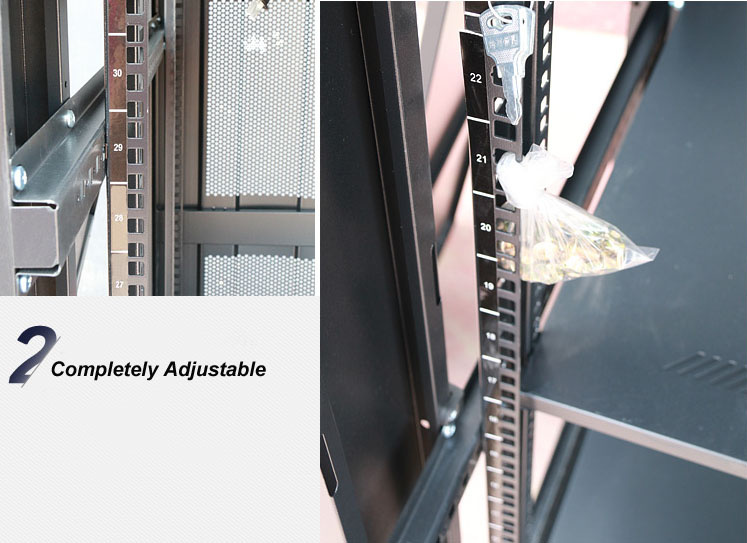

12 | Mounting profile | 4 | 4 | SPCC T=2.0 | Zinc plated | |
13 | Earthing bolts | 1 | 1 | \ | \ | L=20 cm |
14 | Castors | 4 | 4 | \ | \ | 2", W/O brake |
15 | M12 feet | 4 | 4 | Steel | Brass plated | |
16 | Extra screws | 20 | 20 | \ | \ |
