| Prod Model: |
TN-LLC001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Network Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Vertical |
| Fan Number: |
Two |
| Certification: |
RoHS |
| Condition: |
New |
Product Description

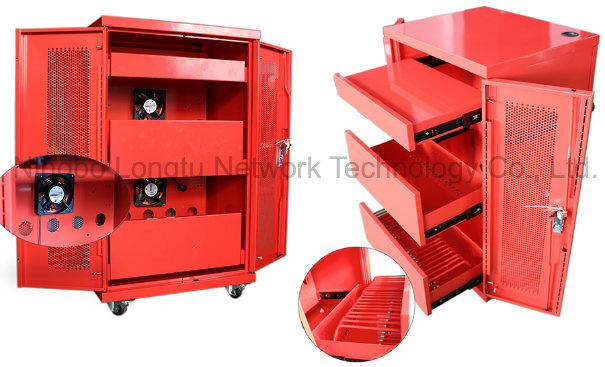

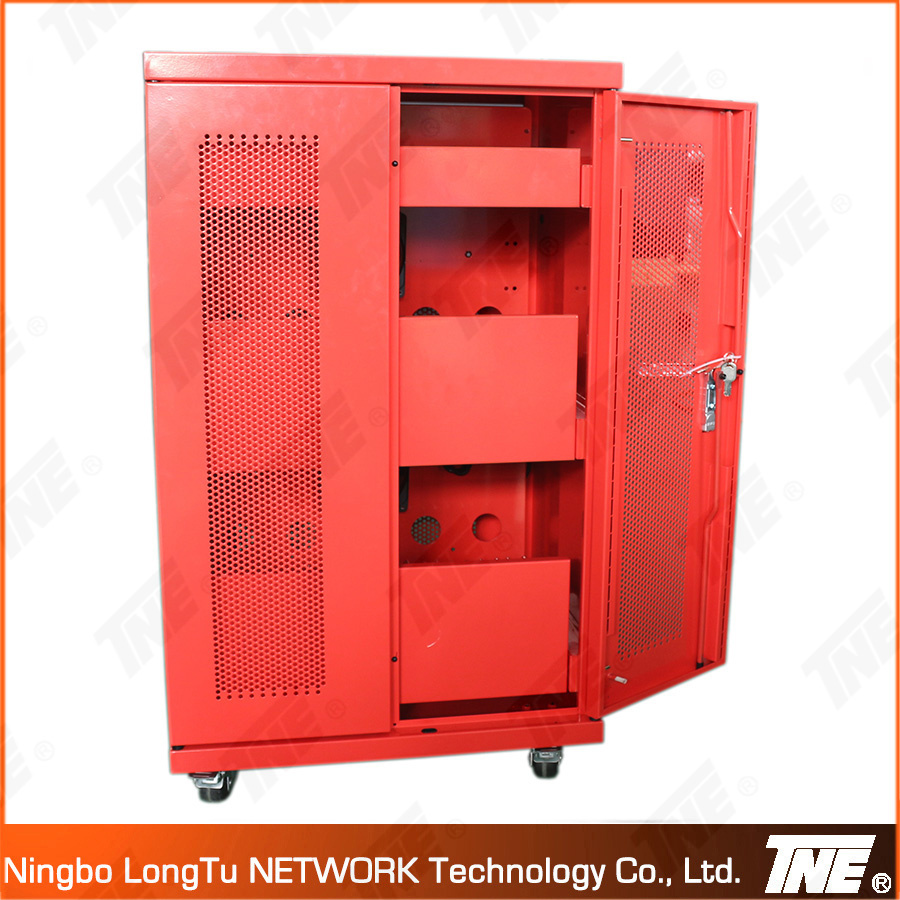

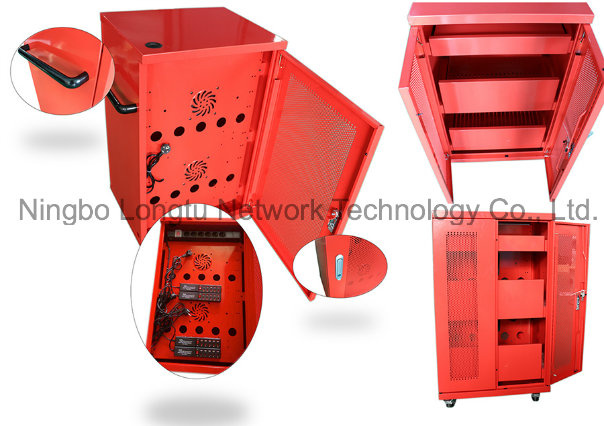

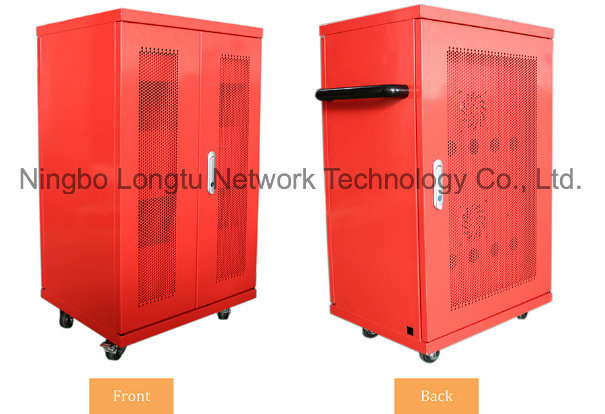

19'' Charging Cabinet for Laptops
Descriptions
> LAPTOPS CHARGING CABINET
> Total Can Charge 20 units Laptops
> with 2 Fans.
> 1pc Keybord.
> 2pcs Shelf (each one can put 10 units Laptops)
Details about the Cabinet | |
| |
| Thermosetting plastic powder, 0.17 to 0.3mm |
| 3 inches Castor total height 105mm, wheel diameter 105mm. Mounting holes distance: 73 * 44.5mm Material: steel and rubber The material strength of steel and rubber is 235MPa. The castor heavy duty is 600-800KG |
Total dimension of the cabinet (Without castors) Total dimension of the cabinet (With castors) | 700(W)X600(D)X1021(H) 700(W)X600(D)X1126(H) |
| |
| 1.5U 5ways South African type PDU, with 1P circuit breaker, power cord 3G1.5mm2 520mm, IEC C20 plug.(L×W×H=429.6×62×45mm) |
| 1.5U 15ways South African type PDU, with 1P circuit breaker, power cord 3G1.5mm2 470mm, IEC C20 plug.(L×W×H=981.1×62×45mm) |
| |
| |
Specification of mounting rails and vertical cable manager | |
Specification of vertical cable manager | |
Specification of handle lock | |
Specification of small round lock | |
Specification of side bars | Dia. 25mmMounting hole center distance 440mm |
Pictures
Optional Accessory- Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
- 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
- 1U, 2U support board
- Vertical Cable manager
- 19'' Power distribution unit(PDU)
- 19'' Blanking plate 1U, 2U, 4U
- Heavy duty castor, Heavy duty castor with braker
- Optional lock for side panels
- Earth kit
And so on...
Ningbo Longtu Network Technology Co., Ltd. ( Formly named Ningbo Taina Electronics Compay) own a Brand of "TNE" Mainly offer 19'' network cabinets, 19'' server racks, wall mount cabinet and customized Products, built for your specific requirement.- Year 2003 TNE Founded
- Year 2006 TNE gains Export and Import Right
- Year 2010 TNE Moved the factory to Guanhaiwei East Industrial Zone, Ocupy 6066 Square Meter.
- Year 2014 TNE Changed the name from NINGBO TAINA ELECTRONICS COMPANY to NINGBO LONGTU NETWORK TECHNOLOGY Co., Ltd. Pure Producing Network Cabinet.
- TNE have some stable partner From USA, UK, France, Austrial, Egypt, and So on.
TNE mainly Products as below:- Network cabinet
- Server Rack
- Wall Mount Cabinet
- Open Frames
- PDU...
TNE Machinery:- CNC Punching Machine: 4 sets
- Laser Cutting Machine: 2 sets
- Bending Machine: 11 sets
And other small Machines...
TNE owned Painting Line with Environment evaluation certificate
Welcome to contact with us to start the business@TNE
Ningbo Longtu Network Technology Co., Ltd. ( Formly named Ningbo Taina Electronics Compay) own a Brand of "TNE" Mainly offer 19'' network cabinets, 19'' server racks, wall mount cabinet and customized Products, built for your specific requirement.
> Year 2003 TNE Founded
> Year 2006 TNE gains Export and Import Right
> Year 2010 TNE Moved the factory to Guanhaiwei East Industrial Zone, Ocupy 6066 Square Meter.
> Year 2014 TNE Changed the name from NINGBO TAINA ELECTRONICS COMPANY to NINGBO LONGTU NETWORK TECHNOLOGY Co., Ltd. Pure Producing Network Cabinet.
TNE have some stable partner From USA, UK, France, Austrial, Egypt, and So on.
TNE mainly Products as below:
Network cabinet
Server Rack
Wall Mount Cabinet
Open Frames
PDU...
TNE Machinery:
CNC Punching Machine: 4 sets
Laser Cutting Machine: 2 sets
Bending Machine: 11 sets
And other small Machines...
TNE owned Painting Line with Environment evaluation certificate
Welcome to contact with us to start the business in Year 2016! !
