| Prod Model: |
FFS-180W |
| Power: |
100W |
| Cell: |
Mono |
| Voltage: |
18V |
| Size: |
550*505 |
| Weight: |
10kg |
| Thickness: |
30mm |
| Efficiency: |
15.8% |
| Material: |
Monocrystalline Silicon |
Product Description
Product Description:

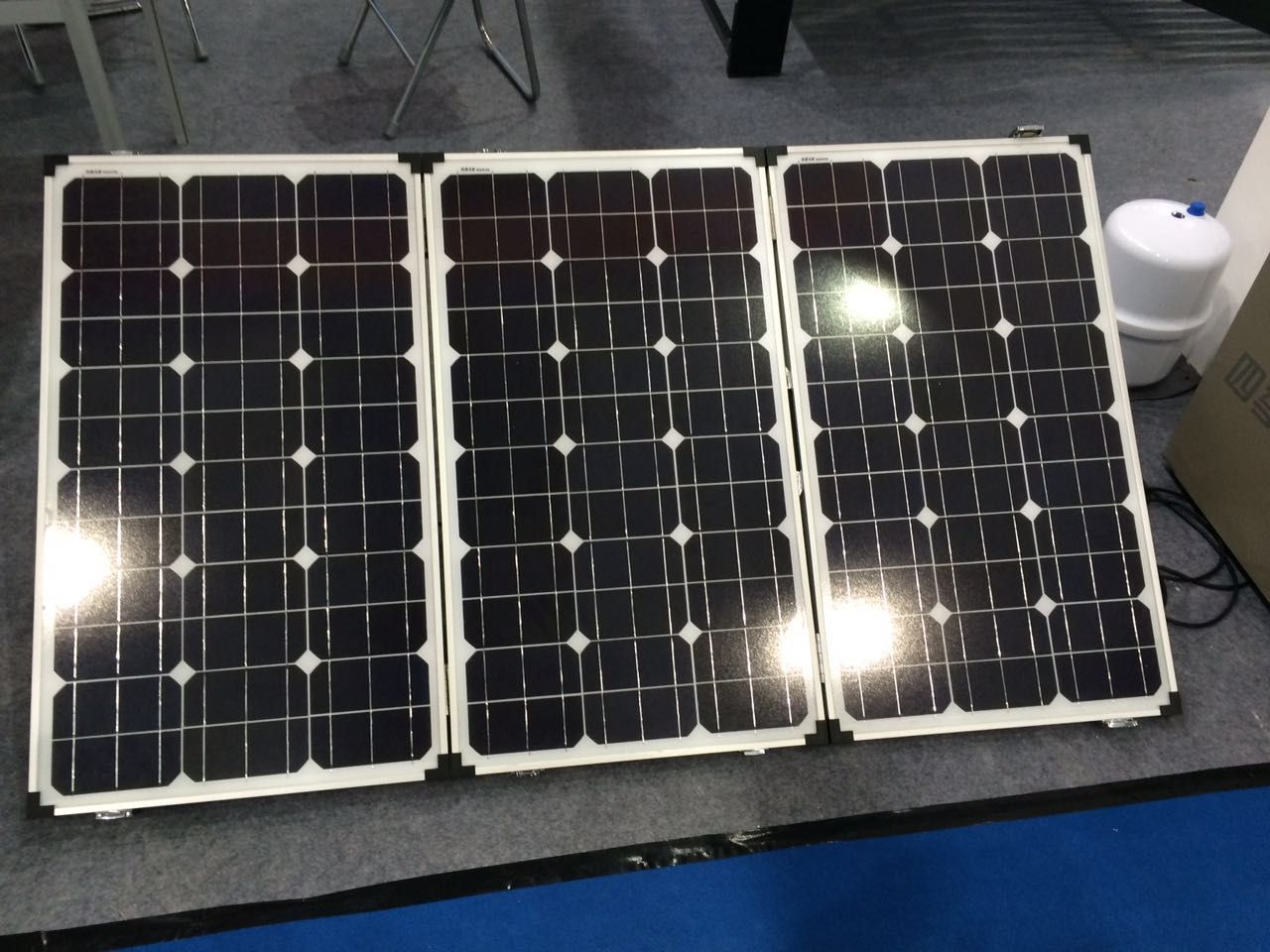

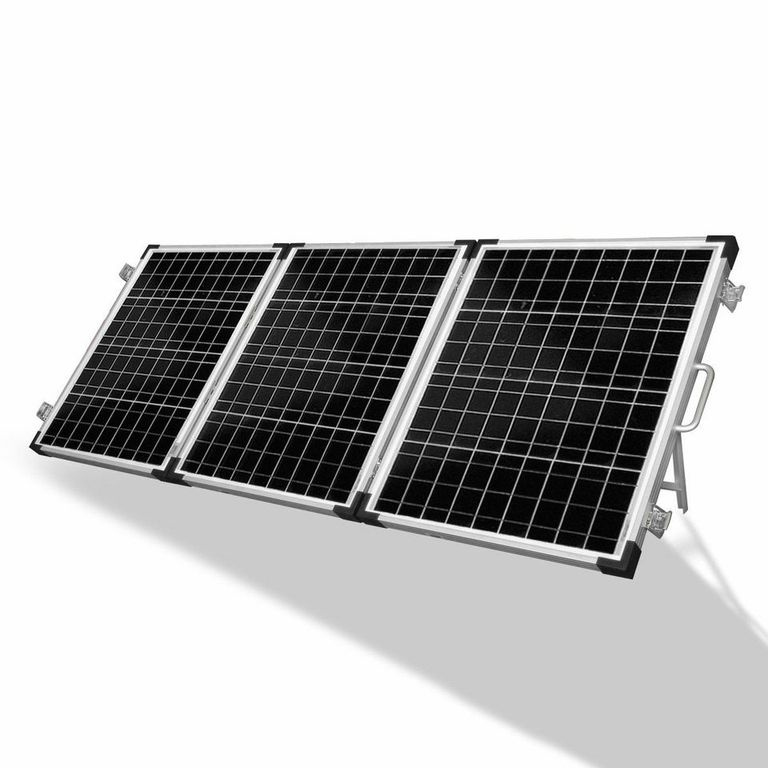

This high quality waterproof 180W folding solar kit is designed to provide free power for
charging 12V batteries, for example in vehicles and boats ( motorhome , caravan, camper,
narrow boat, yacht etc) or any other systems with a 12V battery or battery bank.
It comes with everything needed for battery charging: advanced 10A 12V solar charge
controller, 5m cable with a battery plug, fuse and crocodile clips. You can start using the kit
in seconds - just connect it to your battery and find a well-lit area for the folding solar panels.
The kit comes with a stand which is very easy to set up and fix. A handle and latches ensure
ease of storage and portability. Storage case included with the kit is made with a layer of
foam, so it will protect the glass and the frame well and prevent any accidental.
Features:
· Padded, moulded carry bag

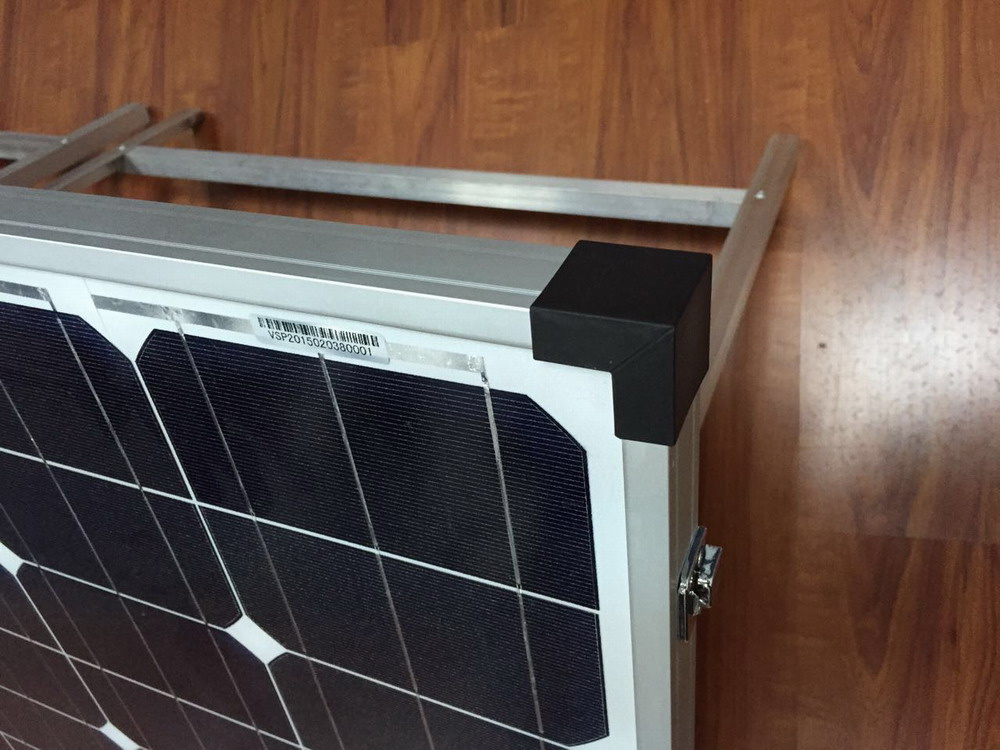

· Heavy duty carry handle, hinges and clasps Stainless steel telescopic&adjustable legs

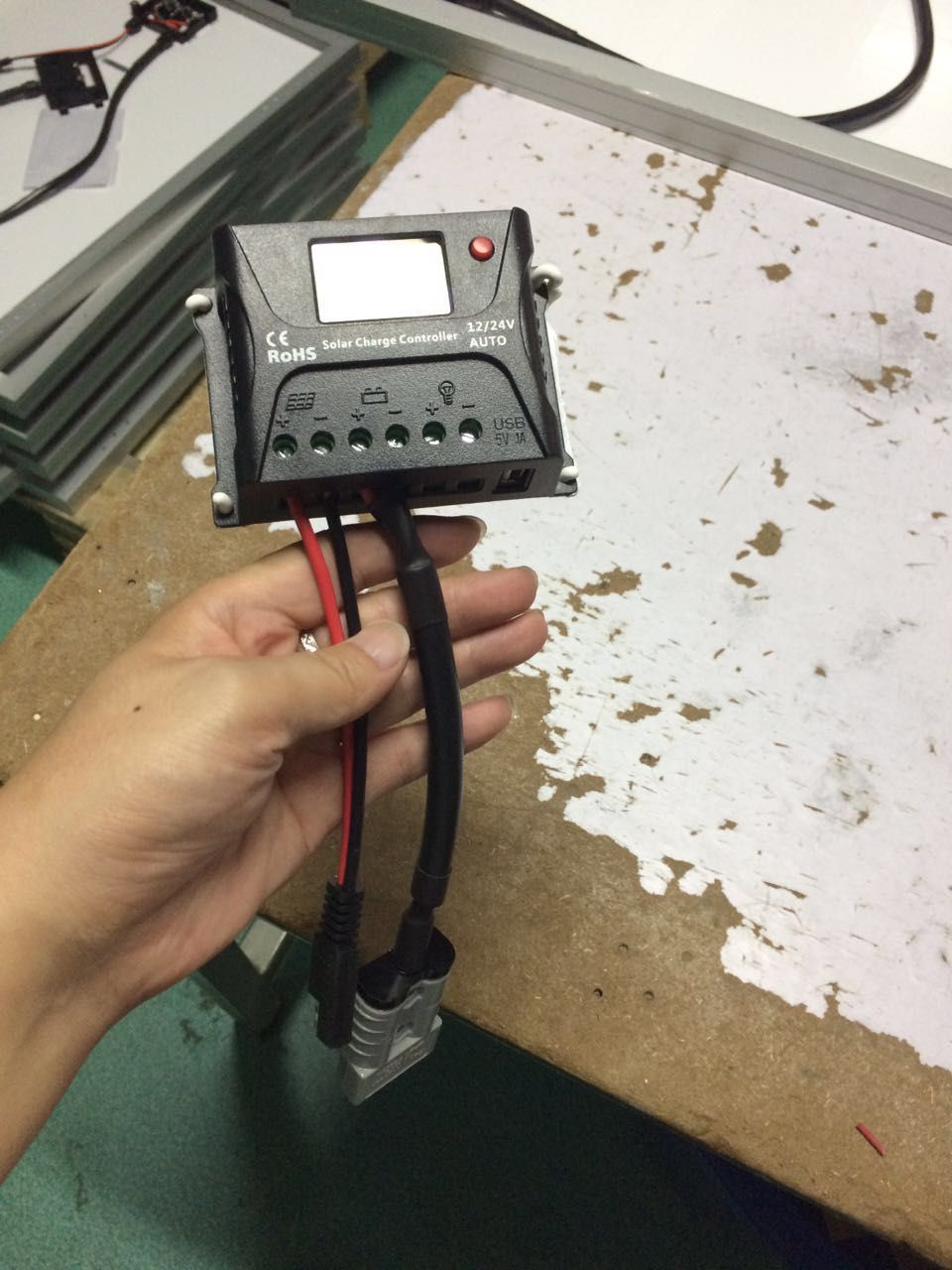

· Weatherproof solar charge controller with LED indicator
· 5m cable with heavy duty Anderson connectors between module-regulator & regulator-battery clamps
· All cabled up ready to use
· 2 year warranty
These kits are the ideal solution for 4WD, camping, caravaning, boating and recreational activities wherever power is required for lights, small TV, camping fridge, pump or other small appliances.
| Technical features |
| Module Type | FFS-180W |
| Max-power | 3x60w |
| Solar cells: | 125*41.66 |
| Min power tolerance | ±3% |
| Peak power(WP): | 180w |
| Voltage at Pmax(Vmp) | 18.0 |
| Current at Pmax(Imp) | 10.00 |
| Open circuit voltage(Voc) | 22.5 |
| Short circuit current(Isc) | 11.15 |
| Max system voltage(VDC) | 1000V(IEC),600V(UL) |
| Cell Efficiency(%) | 17.35% |
| Temperature Coefficient of Pmax: | -0.43%/ºC |
| Temperature Coefficient of voc: | -0.34%/ºC |
| Temperature Coefficient of ISC: | 0.049%/ºC |
| Nominal Operating Cell Temperature: | 45+/-2ºC |
| Data under standard testing conditions(STC) | 1000W/M²; 1.5AM |
| Mechanical Characteristics |
| Type of Connector: | MC4 |
| Fold Dimension of module(mm) | 675*625*105 |
| Unfold Dimension of module(mm) | 2025*620*35 |
| Weight (kg) | 20.00 |
| No.of mounting Holes in Frame | 4 |
| Contruction | 1.Glass -- High Transmission, Low Iron, Tempered,Glass 3.2mm
2.Frame: Clear anodized aluminum alloy type
3.Back side -- White |
| Junction Box(protection degree): | IP65 |
| Qualification Test Parameters |
| Dielectric Insulation Voltage: | 6000VDC max |
| Operating Temperature | -40ºC to + 85ºC |
| Max load | 5400Pa |
| Hailstone impact | 25mm(1inch) at 23m/s (52mph) |
