12V7 Sealed Lead Acid Battery for Bassinet/Child Cart/Alarm System
| Price: |
US $ 5.5-5.7/Piece |
| Min Order: |
2000/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
6FM7 (12V7Ah) |
| Capacity: |
7ah |
| Weight: |
2.00kg |
| Maximum Discharge Current: |
70A(5sec) |
| Operating Temperature: |
-20c~50c |
| Design Time: |
5 Years |
| Separator: |
AGM |
| Charge Voltage (Cycle): |
2.40~2.50V |
| Container Material: |
ABS(UL94-Hb) *Flammability Resistance of (UL94-V0) |
| Material Lead: |
#1 Lead Top Quality in China |
| Terminal: |
F1(0.187)/F2(0.250) |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

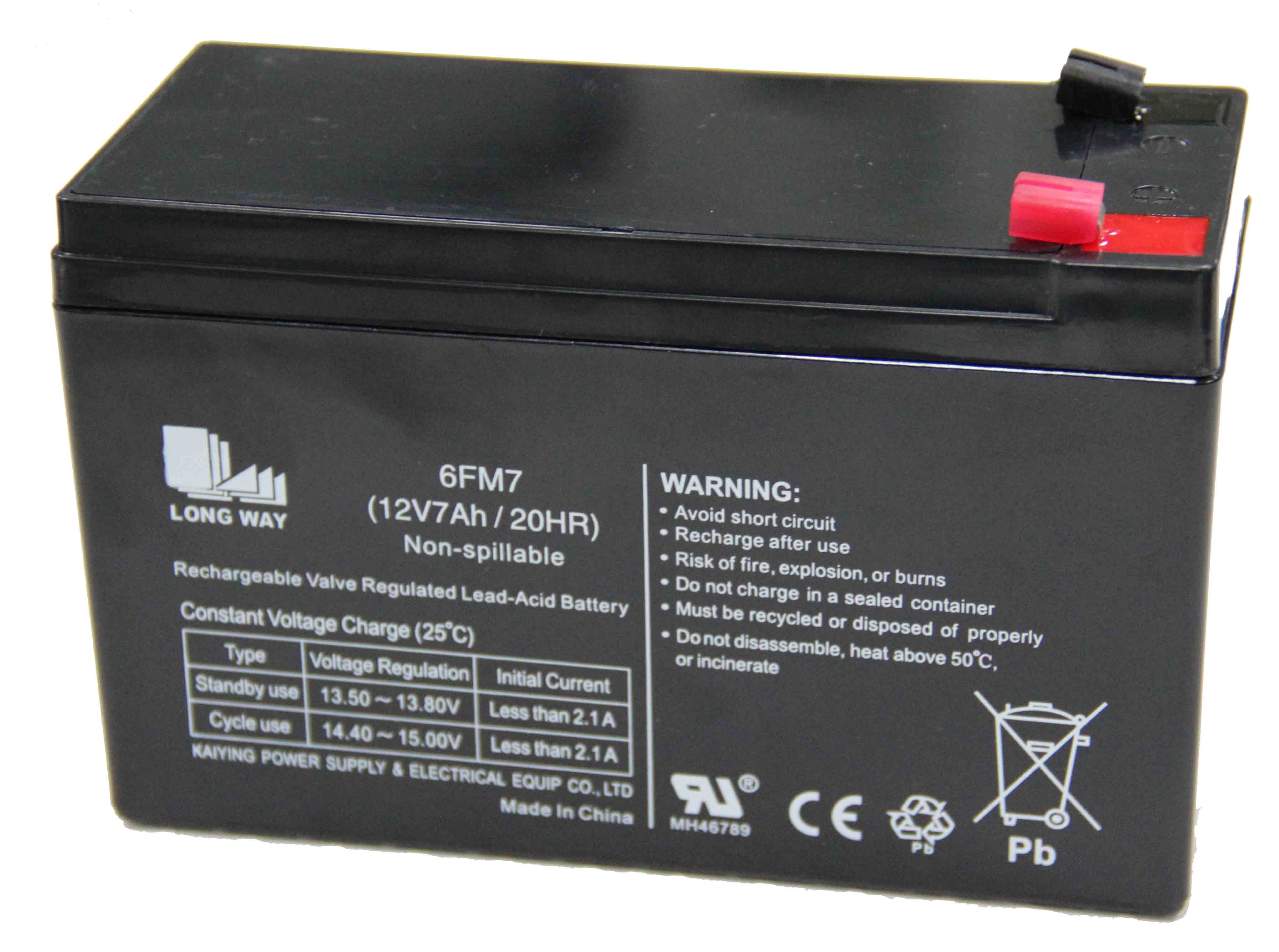

12V7 sealed lead acid battery for bassinet/child cart/alarm systemLONGWAY® Standard battery is design for a general purpose by KaiYing
Power. 6FM7 is a general purpose battery up to 5 years in star service or
more than 260 cycles at 100% discharge in cycle service. As with all
LONGWAY® batteries, all are rechargeable highly efficient, leak proof and
maintenance free.
Product DescriptionLead Acid Battery (12V7AH)
1)Good quality plates grids
2)Long life
3)Low self-discharge
4)Sufficient Capacity
VRLA Battery (12V7AH)
Main Features:
Model: 6FM7
Voltage: 12V
Capacity: 7AH(20hr)
Dimension: L151*W65*H94(TH100)MM
Approx Weight: 2.00KG/PCS
Packing Detail: 10PCS/CTN
Carton Dimension: 369x328x135mm
Loading Quantities: 20'FT=10000PCS, 40'FT=20000PCS
Certificates: CE/UL/ISO9001/ISO14001
Designed life 5 year in stand-by application
Thick plates with high quality lead-tin-calcium alloy grids
High charging performace
Excell product consistency
Unique terminal design to sesure reliable sealing
Extremely low self-discharge rateStandard SeriesLONGWAY Standard series valve regulated lead acid batteries are designed with AGM (Absorbent Glass Mat) technology and for general application purpose. Such as UPS, telecom, and electrical utilities with 5 years design life, the batteries comply to the most popular international standards, such as IEC60896-21/22, BS62904, Eurobat Guide. The battery container and cover are available both in V0 class flame retardant ABS or HBO ABS plastics.
General Features
Stable Quality & High Reliability
Sealed Construction
Environmentally Friendly
Maintenance-Free Operation
Low Pressure Venting System
Heavy Duty Grid
Low Self Discharge
UL Component Recognition(MH 46789)
Applications
Alarm Systems
Cable Television
Communications Equipment
Control Equipment
Computers
Electronic Cash Registers
Electric Test Equipment
Electric Powered Bicycle and Wheel chair
Emergency lighting Systems
Fire & Security
Geophysical Equipment
Medical Equipment
Micro Processor Based Office Machines
Portable Cine & Video Lights
Power Tools
Solar Powered Systems
Telecommunications Systems
Television & Video Recorders
Toys
Uninterrupted Power Suppliers
Vending Machines | Battery Model | Nominal Voltage (V) | Nominal Capacity (AH) 20HR | Length±1 | Width±1 | Height±1 | Total Height±2 | Weight(±3%) | Terminal |
| In | mm | In | mm | In | mm | In | mm | lbs | Kg | Type | Position |
| 3FM4E | 6 | 4 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.32 | 0.60 | F1/F2 | A |
| 3FM4 | 6 | 4 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.46 | 0.66 | F1/F2 | A |
| 3FM4.2B | 6 | 4.2 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.59 | 0.72 | F1/F2 | A |
| 3FM4.5 | 6 | 4.2 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.61 | 0.73 | F1/F2 | A |
| 3FM4.5A | 6 | 4.5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.65 | 0.75 | F1/F2 | A |
| 3FM5 | 6 | 5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.76 | 0.80 | F1/F2 | A |
| 3FM5A | 6 | 5 | 3.86 | 98 | 2.20 | 56 | 4.41 | 112 | 4.65 | 118 | 1.83 | 0.83 | F1/F2 | A |
| 3FM5B | 6 | 5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.80 | 0.82 | F1/F2 | A |
| 3FM5S | 6 | 5 | 2.65 | 67.4 | 2.65 | 67.4 | 3.86 | 98 | 4.57 | 116 | 1.61 | 0.73 | S/F1 | B |
| 3FM5E | 6 | 5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.63 | 0.74 | F1/F2 | A |
| 3FM7 | 6 | 7 | 5.94 | 151 | 1.42 | 36 | 3.70 | 94 | 3.94 | 100 | 2.31 | 1.00 | F1/F2 | C |
| 3FM7.2 | 6 | 7.2 | 5.94 | 151 | 1.42 | 36 | 3.70 | 94 | 3.94 | 100 | 2.31 | 1.05 | F1/F2 | C |
| 3FM7.5 | 6 | 7.5 | 5.94 | 151 | 1.42 | 36 | 3.70 | 94 | 3.94 | 100 | 2.54 | 1.15 | F1/F2 | C |
| 3FM8A | 6 | 8 | 3.86 | 98 | 2.20 | 56 | 4.53 | 115 | 4.53 | 115 | 3.09 | 1.40 | F1/F2 | B |
| 3FM10 | 6 | 10 | 5.94 | 151 | 1.97 | 50 | 3.70 | 94 | 3.94 | 100 | 3.33 | 1.51 | F1/F2 | C |
| 3FM10B | 6 | 10 | 5.94 | 151 | 1.97 | 50 | 3.70 | 94 | 3.94 | 100 | 3.42 | 1.55 | F1/F2 | C |
| 3FM12 | 6 | 10 | 5.94 | 151 | 1.97 | 50 | 3.70 | 94 | 3.94 | 100 | 3.62 | 1.64 | F1/F2 | C |
Battery Factory Location
If get interest, just contact me freely.
12V7 sealed lead acid battery for bassinet/child cart/alarm system
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
