| Prod Model: |
LE-WS1 |
| Product Name: |

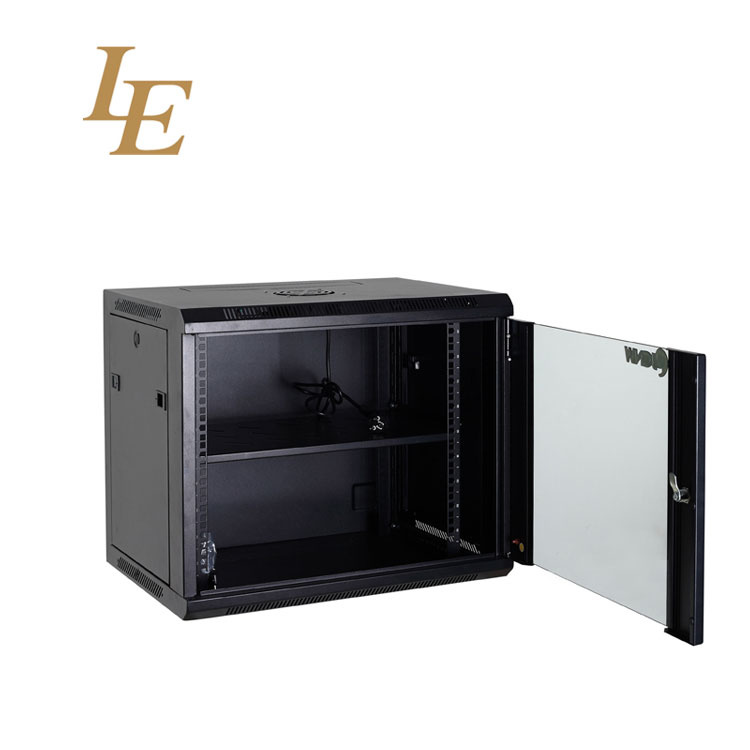

12u 19 Inch Rack Power Distribution Mount Cabinet |
| Material Thickness: |
Thickness: 1.2mm |
| Tempered Glass: |
Thickness:5mm |
| Loading Capacity: |
Static Loading: 60kg(on The Adjustable Feet) |
| Degree Of Protection: |
IP20 |
| Surface Finish: |
Degreasing,Pickling,Phosphating,Powder Coated |
| Height: |
4u-27u |
| Depth: |
600mm |
| Width: |
450mm,600mm |
| Color: |
Ral9004; Ral9005; Ral7035 |
| Type: |
Network Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Wall-Mounted Cabinet |
| Certification: |
SGS,TUV,BV |
| Condition: |
New |
| Fan Number: |
1 to 2 PCS Fans |
| Capacity: |
4u-27u |
Product Description
General Description:
1. Frame:Welded frame, unassembled structure with precise craftsmanship;
2. Single Section,compatiblewith 19"standard equipment;
3. Front Door: Tempered glass front door with over 180 turning degree;
4. Side Panel: Removable side panel, easy to install and maintain (lock optional);
5. Cable Entry on the top cover and bottom panel with knock-out plate;
6. L-Shaped Mounting Profile, easy to adjustable on the mounting rail;
7. Fan cutout on the top cover ,easy to install fan;
8. Installing back panel,easy to fix on the wall;
9. Various accessories for optional;
| Standard | ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard |
| Material | SPCC quality cold rolled steel
Thickness: 1.2mm
Tempered glass Thickness:5mm |
| Loading Capacity | Static loading: 60kg |
| Degree of protection | IP20 |
| Surface finish | Degreasing,Pickling,Phosphating,Powder Coated |
| Product specification | 4U-27U |
| Width | 600mm |
| Depth | 450mm,600mm |
| Color | Ral9004; Ral9005; Ral7035 |
Ningbo Latitude Communication Equipment Co., Ltd was established in 2002, is a professional manufacturer specialized in server rack, network rack, outdoor cabinet, wall cabinet, all kind of power distribution Unit(PDU) and other communication products. Our factory is located at the south bank of Hangzhou Bay Bridge, nearby the Ningbo port(one of most big port in the world), which will be easy to transport our products to the whole world.
For over years, we are always devoting ourselves to research, develop, design and manufacture the products. Striving to maintained a steady growth in the extremely competitive market, we have the world's advanced equipment including TruLaser cutting CNCmachine, TruPunch Punching CNC machine, AMADA Punching and Bending CNC equipment, WAGNER spraying paining line and other equipment. We use ERP order management system, Also have the strict quality control system and Advanced production technology, in order to assure the stable and high quality of products. We got ISO9001: 2008, BV, SGS, TUV, CE, RoHS certification.
We can supply customized service and OEM, ODM products, thanks for choosing our products and believe our cooperation can bring you benefit and value.
