Product Description
Product DescriptionApplicationStrong function, easy operation, sturdy, durable reliable performance, reasonable price, multi-functions and wide range of appliction make it possible to process any wooden prooducts and applicable to process advertising sign plate, acrylic cutting, etc. Any meal and non-metal can be processed, for example, iron, copper, aluminum, plastic plates and wood, etc.

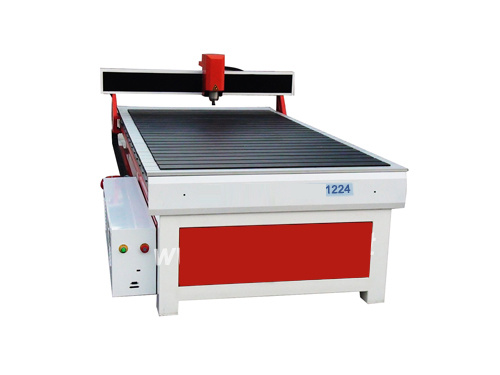

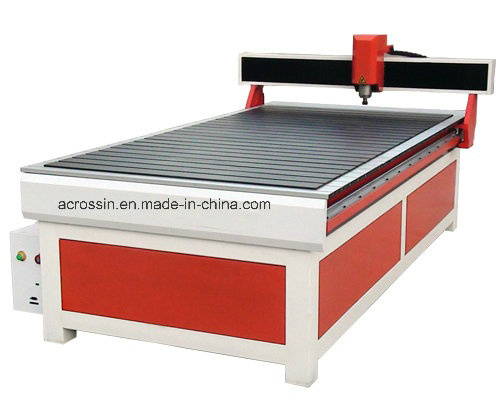

Features1. Model: 1224
2. It is a unique design for relief and wood cutting machine, high accuracy, fast Speed, fully meet the requirements of carving patterns or designs on woodwork And cutting. Lathe bed for large rectangular pipe welding, guide bearing surface Stability.
Rack drive, stable moving, high-speed operation for a long time Without deformation and shake.
3. Internationally advanced NC studio system which have memory of breakpoint
Can guarantee resumption of processing in case of incident (breaking) or of
Work of the previous day.
4. Good Y axis and dust-proof structure to ensure that the machines longer
Service life.| Technical specification: |
| Model | QL-1224 | Optional |
|
| Working area (X*Y*Z,mm) | 1200*2400*120 | customization is available |
| Machine structure | Steel structure lathe bed,T-slot table of sectional material | Vacuum table |
| Working holding | By clamps | |
| Overall dimension | 1650*2950*1250 | |
| Precision(mm) | 0.07 | |
| Position accuracy(mm) | 0.02 | |
| Repeatability(mm) | 0.02 | |
| Lding speed (mm/min) | 6000 | |
| Working speed(mm/min) | 4500 | |
| Spindle | 1.5kw,water-coolin(0-24000rpm) | air-cooling(0-18000rpm),multi-head,
specified power |
| Available tools(mm) | φ3.175~φ6 | Automatic tool changer |
| Drive system | Stepper motor | Servo motor |
| Working voltage | AC220V±30V,50HZ | |
| Command code | G Code(*.nc,*.mmg,*.u00,etc),*.eng | |
| Control system | NcStudio syetem | DSP Hand-held |
| Compatible software | Window98/XP/7 G code | |

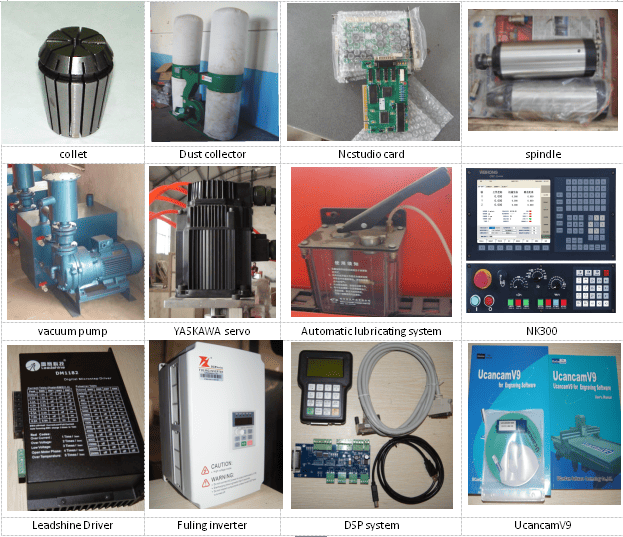

accessories

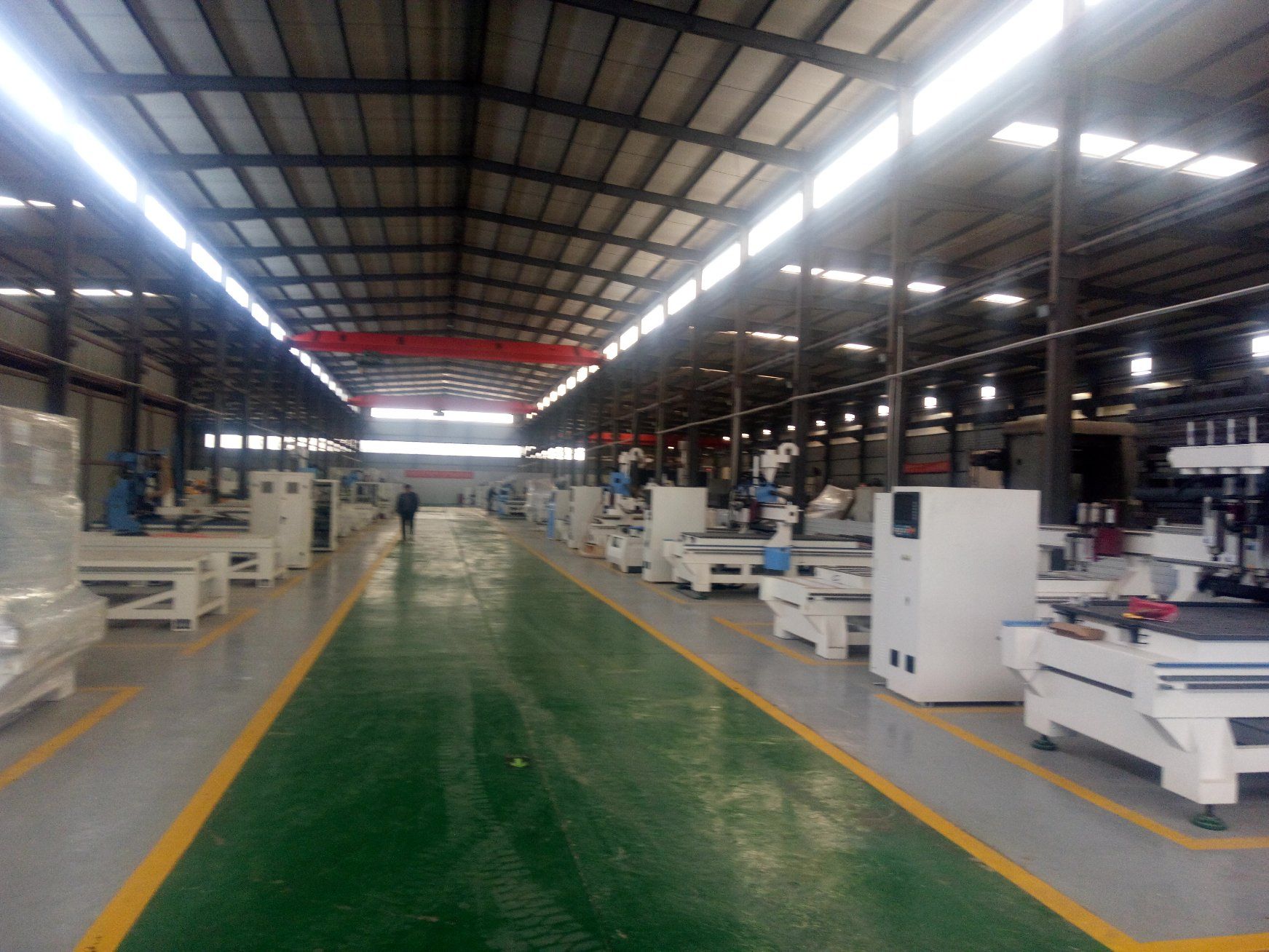

our workshop
FAQ1. Question: What is this machine used for? Do i need a cnc router?
If you are here I assume you are thinking about buying a CNC router or some other CNC machine. Without a doubt these are amazing machines that can improve your business or project tremendously. However, there are many other types of CNC robotics that may be better fitting for your application.
This machine can be used for furnitures engraving, room decorations, industrial equipment parts, music instrument, mold, art&craft, building models and advertisment industry.
2. Question: How can i find a machine which can satify my requirement within my budget? Which one is the right one for me?
First lets answer the following questions.
1)What type of materials do you plan to cut or engrave?
( Wood, Particle Board, Plastic, Foam, Composites, Glass, Aluminum )
2)What is the most complex design you foresee cutting?
The complexity of the design is another important considerations. What is meant by this is primarily the overall size and depth of cut per axis. Do you plan to use the machine for cutting, carving, drilling, or all of the above?
3)What kind of tolerances do you need to hold?
Now this is something that I am sure you have already considered but it is still worth discussing. A router is capable of leaving a near perfect finish while surfacing and overall the tolerances are good. A decent machine, you should expect a tolerance of. 001" or better for a given distance.
3. Question: How to buy? Whats the main procedure?
First, we come to a final conclusion with agreement. May this step will cost more than months even years.
Scond, I prepare you the proforma invoice as we agreed.
Third, you bring the proforma invoce to the bank and do the advance payment transfer.
Fourth, after you showed me the bank slip, we factory start to produce your machine.
Fifth, machine finished within 13 working days, then we do the delivery and you finish the balance.
Sixth, You receive the machine in your port and pick it up to your workshop.
4. Question: What is the machine warranty? If any parts fault due to quality how can i do?
Our machine are with 13 months qualtiy warranty. Within 24 months, if any parts failed due to qualtiy, we will send you the replacement parts in no time and we provide 24 hours online technical support to you. Any time you meet any problem, just contact us.
Sale service
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
Our company manufacture CNC machinery.
High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
We are belong to JINAN ACROSSIN IMP&EXP TRADING Co., Ltd,
We are a subsidiary corporation of it.
JINAN SAICHENG MACHINERY Co., Ltd is established in 2007, and be good at CNC router field in Chinese market, and get good feedback, Perfect quality and best Aftersale. Our products include woodworking CNC router, stone CNC router, laser machine, plasma machine, we can Produce many kinds of CNC router following client requirement.
JINAN ACROSSIN IMP&EXP TRADING Co., Ltd is a group company, it is established in 2006, scope of business include Machinery parts, building hoist, tower crane, and ball screw, and CNC machinery.
The continuously improving performance of our machines wins great trust of our customers. Our products are not only sold in Chinese maekrt, but also exported to Europe, north and south America, central and west Asia and other regions.
Of cause, we can produce every kind of CNC router, and We accept orders according to our customers' requirements.
