| Prod Model: |
JK-1002D |
| Markets: |
North America,South America,Eastern Europe,Mid East,Eastern Asia,Western Europe |
| Aluminum Mode: |
6063 |
| Thickness: |
1.3mm |
| Max Load: |
150 Kgs |
| Loading Port: |
Ningbo |
| Certificate: |
CE En131 |
| Delivery Time: |
20-25 Days |
| Payment Term: |
T/T L/C at Sight |
| Market: |
Global Market |
| Weight: |
13.5kgs |
| Type: |
Step Ladders |
| Function: |
Telescopic Ladder |
| Material: |
Aluminum |
| Loading: |
150kg |
| Insulation: |
Non-Insulated |
| Pedal Number: |
12 Steps |
| Color: |
Black, Red/Bule |
Product Description

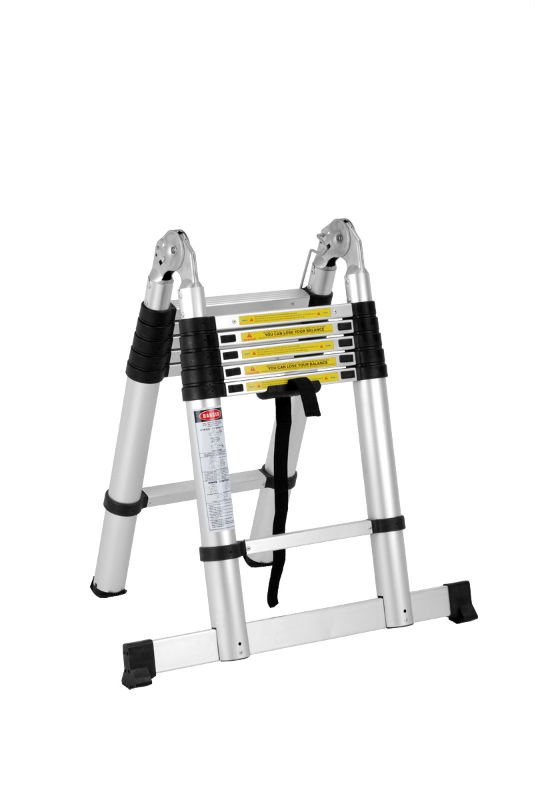

12 Step Aluminum Telescopic Ladder 3.8m
1. Item: JK-1002D
2. Max load: 150kgs
3. Spacing between rungs: 30cm
4. Thickness of aluminum: 1.3mm
5. Extension length: 3.8m(1.9m+1.9m)
6. Folding height: 91cm
7. A step ladder height: 187cm
8. Aluminum mode: 6063
9. Step number: 12 steps
10. Packing: Protective membrane+polyfoam+carton
11. Packing size; 92*52*20cm
12. QTY/20GP: 310pcs
QTY/40GP: 620pcs
QTY/40HQ: 740pcs
13. N/W: 13.5kgs
G/W: 14.0kgs
| MODEL | Description | Max load | N.W. | G.W. | 1*20' | 1*40'HQ | MOQ | Packing Size |
| Extension length: 3.2M(1.6M+1.6M) | 150Kg | 12.0KGS | 13.5KGS | 330PCS | 770PCS | 200PCS | 89*52*20CM |
| Folding height:88CM |
| A step ladder height:156CM |
| Aluminum mode:6063 |
| Thickness of Aluminum:1.3MM |
| JK-1002D | Extension length: 3.8M(1.9M+1.9M) | 150Kg | 13.5KGS | 14.0KGS | 310PCS | 740PCS | 200PCS | 92*52*20CM |
| Folding height:91CM |
| A step ladder height:187CM |
| Aluminum mode:6063 |
| Thickness of Aluminum:1.3MM |
| JK-1003D | Extension length: 4.4M(2.2M+2.2M) | 150Kg | 15.0KGS | 16.0KGS | 300PCS | 710PCS | 200PCS | 95*52*20CM |
| Folding height:CM |
| A step ladder height:187CM |
| Aluminum mode:6063 |
| Thickness of Aluminum:1.3MM |
| JK-1004D | Extension length: 5.0M(2.5M+2.5M) | 150Kg | 16.5KGS | 17.0KGS | 290PCS | 680PCS | 200PCS | 98*52*20CM |
| Folding height:85CM |
| A step ladder height:187CM |
| Aluminum mode:6063 |
| Thickness of Aluminum:1.3MM |
Specifications:
1. Aluminum alloy 6063.
2. EN131 certification.
3. Easy to carry anywhere.
4. Large non-slip.
5. Foldway for storage and safe for using.
6. Stabiliser bar for additional stability.
Aluminum Telescopic Ladder with joint use:
1. When oppen the ladder, you can step on the lowest crosspiece by one foot and lift it upwards horizontally to reach your needed height.
2. It is necessory to check the crosspiece is locked before using, keeping from the unexpected happened. When using it, the ladder should be 75 degree between floor and ladder.
3. Step on the lowest crosspiece br one foot, grasp the ladder rod by one hand, and press the left and right switches of the lowest crosspiece. Do not put your hands on the crosspiece when pressing the contraction switches.
