| Prod Model: |

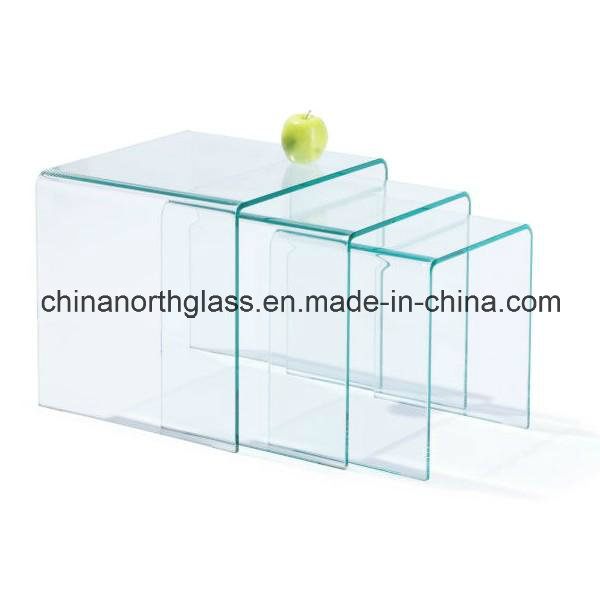

Hot Curved Glass Table |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Min Size: |
300X300mm |
| Max Size: |
2440X2600mm |
| Min Radius: |
450mm |
| Application: |
Curved Elevator, Furniture, Window and Door, etc |
| Type: |
Hot Curved |
| Color: |
Clear, Bronze, Blue, Green, Grey, etc |
| Technique: |
Tempered Glass |
| Thickness: |
4-25mm |
| Payment: |
Tt/LC, etc |
| Shipping: |
Sea, Air, Express |
| Shape: |
Curve |
| Appearance: |
Bent Tempered |
| Standard: |
GB15763.2-2005 |
| Steel Degree: |
Tempered Glass |
| Thickness Of Flat Tempered Glass: |
3-19mm |
| Thickness Of Curve Tempered Glass: |
3-19mm |
| Fragment State: |
Ⅲ |
| Technics: |
Physically Tempered |
| Flatness: |
High Class |
| Usage: |
Home Appliance, Window, Door, Furniture, Building, Daily Products |
Product Description
Hot Curved Glass TableCurved glass, which is made of float glass, is firstly heated to softening point on metal mould and then bent to shape by weight of glass itself and outside force, then finally cooled down.
Curved tempered glass/bent glass adopts the similar process with tempered glass, but before the cooling process, using the external power to bend glass to a proper radian according the requirement. The wind pressure resistance of curved tempered glass/bent glass is better than flat tempered glass and other kinds glass for the special shape.
Our curved glass/bended glass/bent glass is most famous in glass industry of China. We process curved glass at high accuracy with good quality. Curved glass/bended glass/bent glass can be further processed into insulated glass, tempered and laminated glass, etc.
Applications:
Curved glass is used in curtain wall with curved structure, skylight, sightseeing elevator, hyperboloid and taper shaped buildings.
Curved tempered glass/bended glass/bent glass is widely used in esthetics architecture field for beautiful appearance.
Curved glass/bended glass/bent glass is extensively used in shower door glass, fencing glass, revolving door glass, high quality furniture glass and architectural situations
Specifications:
Terms Condition
Size 2000*1050mm, 1650*1300mm, 3300*2140mm, 400*400mm, r=400mm/600/800mm etc.
Thickness 3mm, 4mm, 5mm, 5.5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm etc.
Competitive Advantage:
1. Good accuracy in arc, less light aberration.
2. Safety, mechanical attack resistance performance and thermal stability.
3. Anti-wind pressure ability and deflection performance.
1. The anti-impacting performance and anti-bending performance of curved tempered glass/heat bent glass are 3-5 times higher than ordinary glass.
2. Curved tempered glass/heat bent glass breaks into granules in case of strongly knocked, so no hurt would be caused.
3. Deflection angle of curved tempered glass/heat bent glass is 3-4 times larger than that of float glass with same thickness. When there is load on curved tempered glass/heat bent glass, its maximum tensile stress does not locate on the glass surface as float glass, but on the central point of glass sheet.
Bent glass/curved glass/bended glass features:
Safety performance: Bent glass/curved glass/bended glass will appear hurtless obtuse angles when breakage.
Strength performance: Four times more than ordinary glass.
Heat stability: Three times more than ordinary glass, could bear temperature change about 200degrees.
Factory Equipment
Packaging & Loading Pictures
Certificate
Should any items be of interest to you, please feel free to contact us, we will be happy to give you details.
Alice Gu
0086-10-58480358
Beijing Northglass Technologies Co. Ltd, a leader in glass industry, has been engaged in the research, development, processing glass since 1987. Produce range includes: Laminated safety glass, tempered safety glass, low e insulated glass, reflective glass, silk screen printed glass(ceramic frit glass, enamalled glass), tempered glass, curved tempered glass, hot curved glass, heat strenghened glass, fire proof glass, bullet proof glass, ultra clear glass(low iron glass), etc for curtain wall shower doors, windows, facades and furniture applications.
By far, we have asset USD50 million. Our head quarter is in HongKong, and our 3 fabrication companies are in China mainland having more than 1, 000 employees, of whom over 46% is specialized techical personel. Our company covers more than 390.000sqm. We have massive elites working at each process of working, among whom, professional technicians are over 26% and employees with Bachelor's degree are over 93%.
Our glass pass Australian CSI certificates, US IGCC SGCC certificates, European CE certificates and Chinese national certificates. Now we are working with customers in over 100 countries. To help customer to better achieve their success is our aim. Welcome you work with us, and establish long term cooperation!
