| Prod Model: |
TN-014 |
| Packing Style: |
Assembled or Dis-Assembled |
| Logo Type: |
Silk Print, Aluminum Sticker, Rubber Sticker |
| Shipping: |
Sea, Air, Train, Truck |
| Material: |
SPCC Cold Rolled Steel |
| Type: |
Network Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Wall-Mounted Cabinet |
| Certification: |
RoHS |
| Condition: |
New |

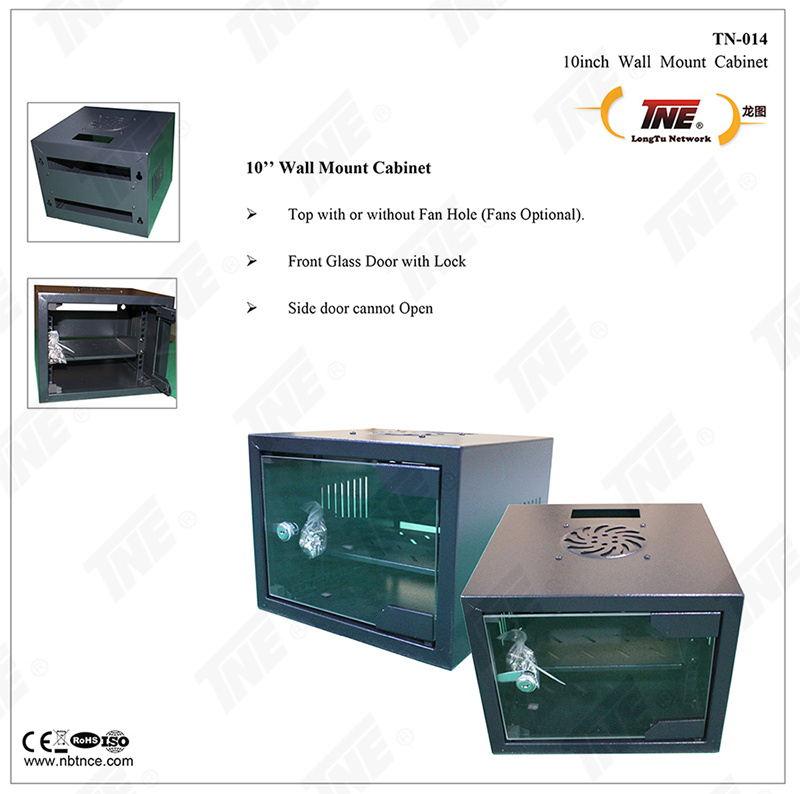

Product Description
================FEATURES====================
*Smart 10" international structure,welded frame for SOHO!
*Full SMOKY-GREY glass front door with small bolt lock
*Silk print is available, metal or plastic LOGO plate for optional
*External front door hinges with 130 degrees operation angle
*244 MM SPECIAL INSTALLATION PROFILE CENTER,CAN BE CUSTOMIZED
*Top&rear wire path, adjustable size
*side panels with vented area for airflow cooling,can be customized
*can add fan as per your need, fan size: 120*120*25 mm
*smart and firm assemble structure achieve the safe integrated cabling system
*Varies specification upon customers' special requirements
Width: 300 mm
Depth: 350 mm
Height: 4U, 6U, 9U, 12U, 15U, 18U, 22U,OEM
Customized size is available
Assemble packing only
Standard and Material:
Comply with ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Material:SPCC cold rolled steel or EG steel
Thickness:Mounting profile:1.5mm,others:1.00mm
IP degree: IP-20
Loading capacity:
-Static loading: 20KG
Body color:RAL9004(black);RAL7035(grey),etc
============Main parts List===============
NO. |
Part Name |
QTY |
Unit |
Materials |
Note |
1 |
Frame |
1 |
Piece |
1.0mm SPCC cold rolled steel |
|
2 |
Front Door |
1 |
Piece |
5mm Tempered transparent glass
1.0mm SPCC cold rolled steel |
|
3 |
Side Door |
no |
Piece |
1.0mm SPCC cold rolled steel |
|
4 |
Back panel |
1 |
Piece |
1.0mm SPCC cold rolled steel |
|
5 |
Bottom |
1 |
Piece |
1.0mm SPCC cold rolled steel |
bending |
6 |
Top |
1 |
Piece |
1.0mm SPCC cold rolled steel |
bending |
7 |
Mounting Profile |
4 |
Piece |
1.5mm SPCC cold rolled steel |
Can GE treated |
8 |
Small lock |
1 |
Piece |
\ |
Front door |
9 |
Earthing Bolt |
1 |
Piece |
\ |
|
10 |
Wiring Panel |
1 |
Piece |
1.0mm SPCC cold rolled steel |
Screw M4 |
11 |
M4&M5 cage |
20 |
Set |
Stainless steel |
|
12 |
M6 Screw |
20 |
Set |
Stainless steel |
10sets for extra |
13 |
Quick open latch |
0 |
piece |
Plastic |
On side doors |
==============SizeList===============
Model Number |
Width×Depth×Height |
Height |
Volume(M3) |
G.W.(kg) |
Loading capacity |
TN-014 |
300×350×278 mm |
4U |
0.033 |
6.50 kg |
20 KG
(44 lbs) |
| TN-014 |
300×350×367 mm |
6U |
0.047 |
7.50 kg |
TN-014 |
300×350×500 mm |
9U |
0.062 |
9.00 kg |
TN-014 |
300×350×634 mm |
12U |
0.078 |
10.5 kg |
TN-014 |
300×350×767 mm |
15U |
0.095 |
12.0 kg |
TN-014 |
300×350×900 mm |
18U |
0.109 |
13.5 kg |
TN-014 |
300×350×1078 mm |
22U |
0.130 |
15.0 kg
|
===============FAQ=================
1) What is your Payment term?
---TNE accept T/T, L/C, Western Union.
2) What is your Trade term?
---TNE do EXW, FOB, CNF, CIF terms.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
