| Prod Model: |
FRD-3001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Light Grey Ral9002 |
| Open Type: |
Push-Pulling |
| Usage: |
Office |
| Customized: |
Customized |
| Material: |
Galvanized Steel Sheet |
| Door: |
Drawers |
Product Description

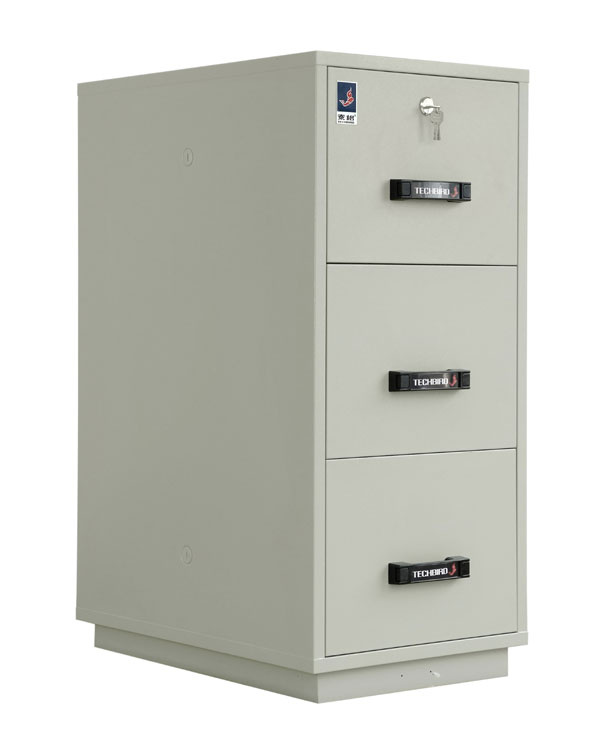

680FRD-3001
Dimension:
1202(H)*551(W)*680(D)mm
47"(H)*22"(W)*27"(D)
Innner size (Paper drawer):
294(H)*388(W)*492(D)mm
12"(H)*15"(W)*19"(D)
Packing size:
1351(H)*570(W)*730(D)mm
53"(H)*22"(W)*29"(D)
N.W.: 245KG G.W.: 259KG
Locking:
One turn key lock at top drawer giving control to all drawers.
Color:
Standard is light grey RAL7032. Other colors could be accepted if the order is one 20 feet container at least.
Package:

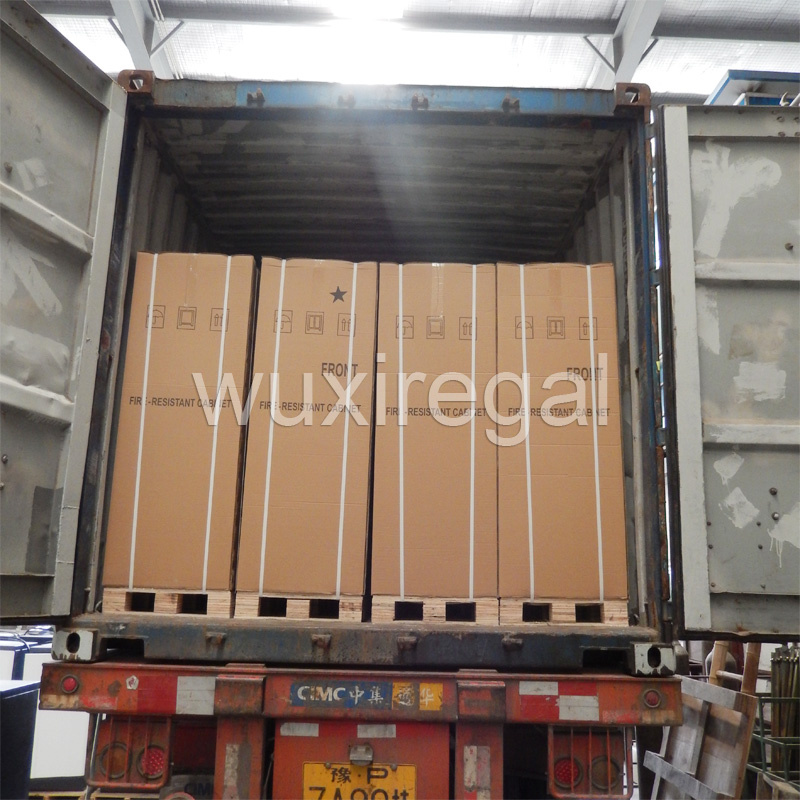

Each cabinet to be wrapped all over with PE airmat, protected with thick foam material sheet in the front and at the top of the cabinet and then covered a corrugated carton on the plywood pallet.
Standard is carton box package. Wooden crate package is available with extra charges.
|
Model No. |
External Dims
HXWXD(mm) |
Packing Dims
HXWXD(mm) |
Weight(KG) |
Loading for 20'
container
(units) |
Loading for 40'
container
(units) |
|
Net |
Gross |
|
FRD-3001 |
1202x551x680 |
1351x570x730 |
245 |
259 |
32~39 |
64~79 |

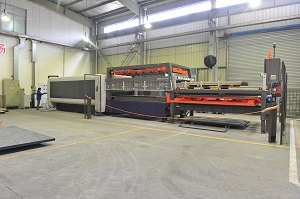

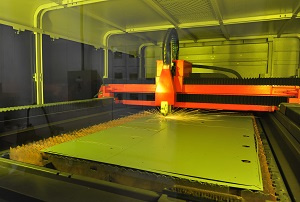

Wuxi Regal Security Technology Co., Ltd., a wholly Malaysian-owned manufacturing company, is located at Wuxi, Jiangsu province near Shanghai. With a high-tech production team and advanced digital-control steel processing equipment, our company is the leading maker of fire-resistant filing cabinets (or FRDs), anti-magnetic cabinets and industrial safety cabinets in Asia. Its three established brands-Regal, Techbird and Sentinel, have gained wide acceptance at home and abroad.
Our newest cabinet series, namely FRD-II, has been rigorously tested in October of 2007 by American Underwriters Laboratories ( UL), one of the world's top independent testing institutions. One 4-drawer sample has been tested and passed UL's 2-hour fire endurance and the explosion test, for fire protection of paper-based documents. With this success, the FRD-II series have complied to the requirements of UL Standard 72 Class 350 for fire protection.
The fire-resistant cabinets have the options of 2, 3 and 4 drawers, with provision for a customer-specified choice of various locking systems (of key, mechanical, etc. )
Welcome to your inquiry!
